Maintenance > 129

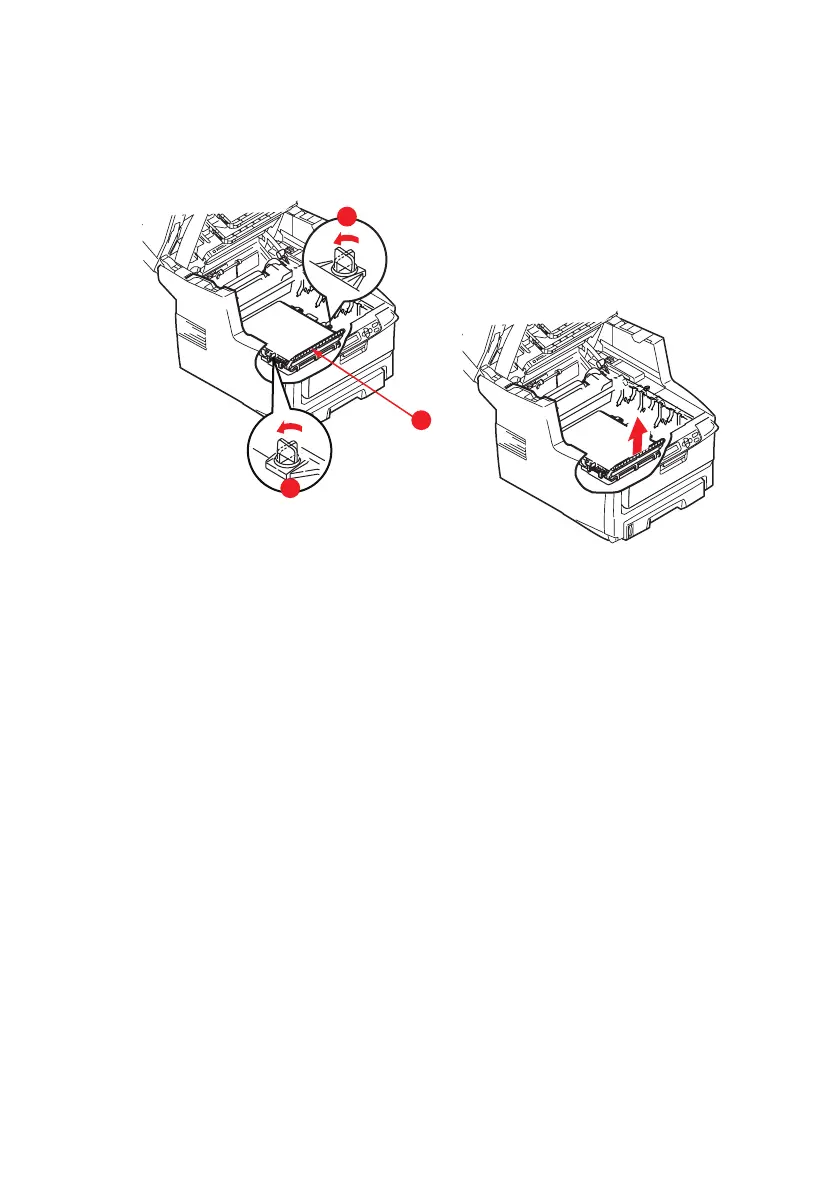

5. Locate the two fasteners (5) at each side of the belt and

the lifting bar (6) at the front end.

Transfer belt - unlock.eps Transfer belt - out.eps

6. Turn the two fasteners 90° to the left. This will release the

belt from the MFP chassis.

7. Pull the lifting bar (6) upwards so that belt tilts up towards

the front, and withdraw the belt unit from the MFP.

8. Lower the new belt unit into place, with the lifting bar at

the front and the drive gear towards the rear of the MFP.

Locate the drive gear into the gear inside the printer by

the rear left corner of the unit, and lower the belt unit flat

inside the MFP.

9. Turn the two fasteners (5) 90° to the right until they lock.

This will secure the belt unit in place.

10. Replace the four image drums, complete with their toner

cartridges, into the printer in the same sequence as they

came out: cyan (nearest the rear), magenta, yellow and

black (nearest the front).

11. Close the top cover and press down firmly at both sides so

that the cover latches closed.
