Oki MC563 MFP User Manual

- 121 -
8. Maintenance
7

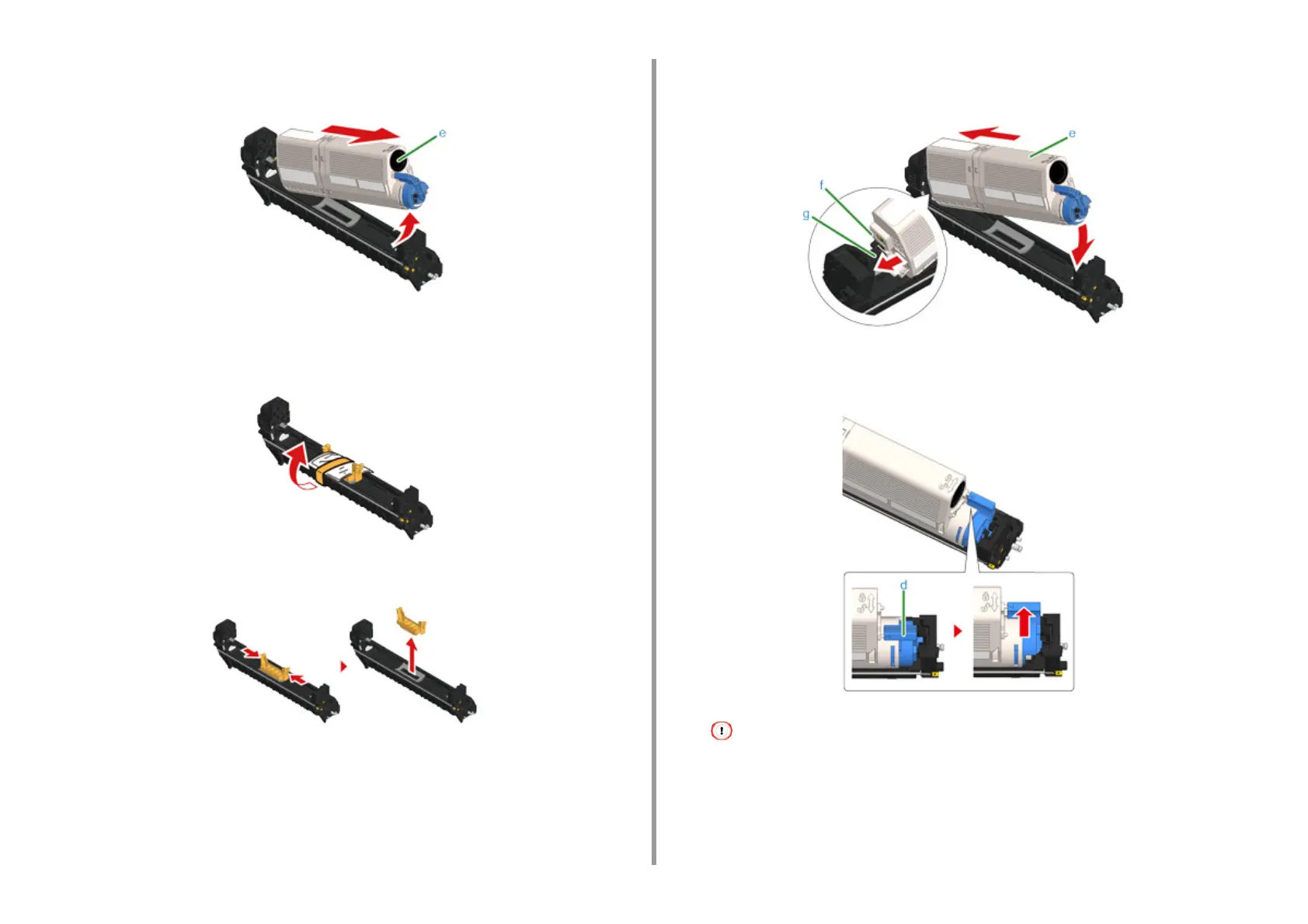

Lift the toner cartridge (e) from the right side, and remove it from the image
drum.
8
Unpack a new image drum and place it on a flat surface.
9
Remove the desiccant pack.
10
Remove the toner cover.
11
Insert the toner cartridge (e) removed in step 7 by aligning its left side
indentation (f) with the protrusion (g) on the image drum so that the toner
cartridge and image drum color label align. Then insert the right side gently
into place.
12
Hold the cartridge, pinch the tip of blue lever (d) of the toner cartridge, and turn
forward until the tip aligns on the lug of the cartridge.
If you close the output tray without turning the blue lever when installing the toner cartridge into the image drum,
it may cause a malfunction. Be sure to turn the blue lever until its top aligns on the lug in the back of the toner
cartridge.

Oki MC563 MFP Specifications

General

Print Technology	LED
Print Resolution	1200 x 1200 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax	Yes
Monthly Duty Cycle	Up to 60, 000 pages
Functions	Print, Copy, Scan, Fax
Duplex Printing	Yes
Print Speed	Up to 30 ppm
Scanner Type	Flatbed, ADF
Copy Speed	Up to 30 cpm
Connectivity	USB, Ethernet
Paper Capacity	250 sheets
