Oki MC563 MFP User Manual

- 27 -
2. Setting Up
Connecting a Telephone Line
This section describes how to connect a telephone cable for fax transmissions.
The telephone line connection method varies depending on your environment. Connect the
telephone cable that suits your environment by referring to the illustrations in this manual.
Set the telephone cable in the recess of the machine so that it is not to be loose.
• Always use the telephone cable which comes with the machine. Using another telephone cable may cause a
malfunction.
• If a fax transmission or reception fails, set [Super G3] to [OFF].
• You cannot connect an ISDN line directly. To connect, use a terminal adapter (TA) and connect to the LINE connector
of the machine.
• Connecting to the Public Line (If Using Only for Faxes)
• Connecting to the Public Line (If Connecting a Telephone to the Machine)
• Connecting the Optical IP telephone
• Connecting to the ADSL Environment
• Connecting PBX, Home Telephone or Business Phone
• Connecting as an Extension Telephone
• Connecting a CS Tuner or Digital Television
1

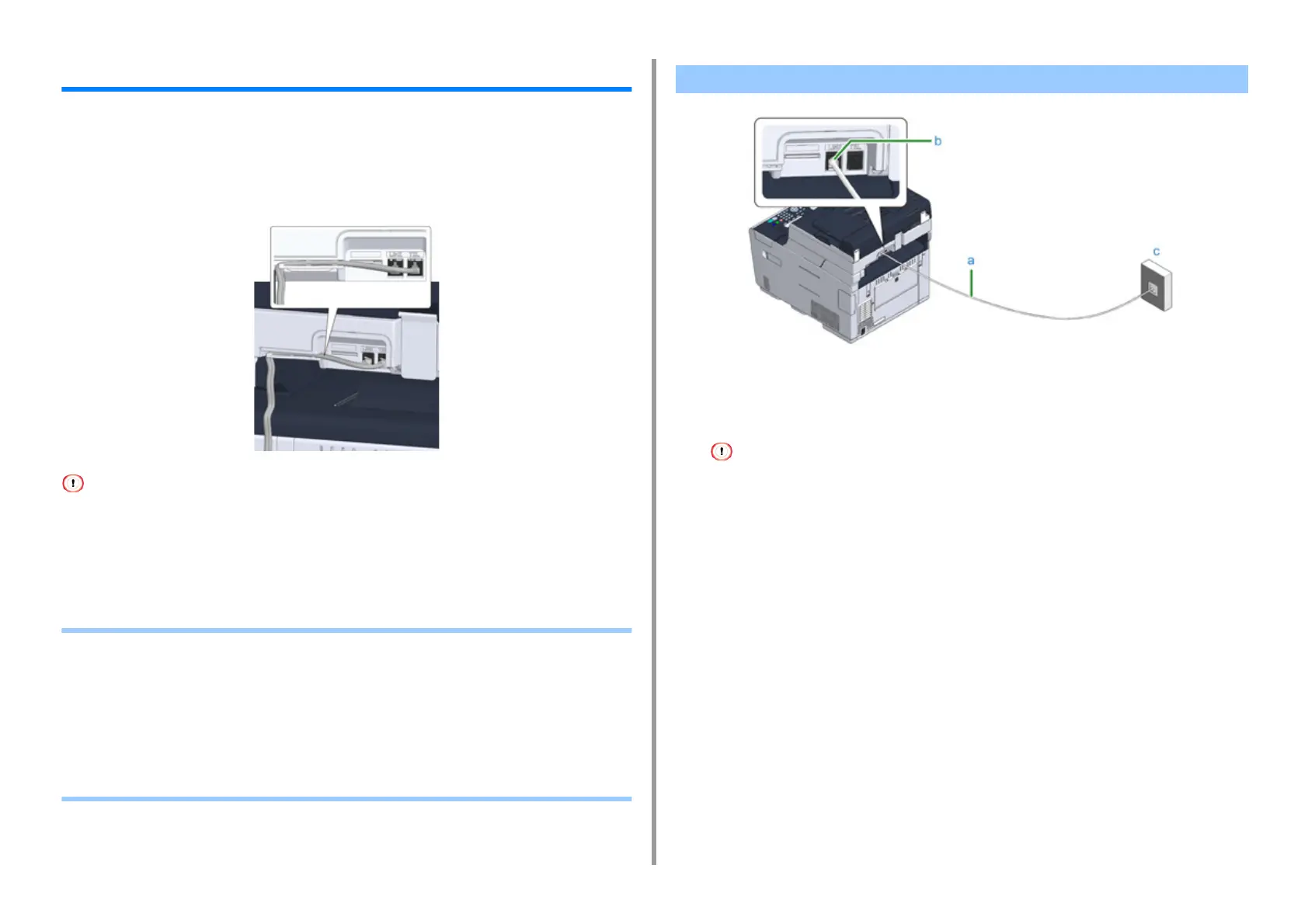

Plug one end of the included telephone cable (a) into the LINE connector (b)
of the machine and the other end into a public line (analog) (c).
Keep the cover of the "TEL connector" inserted.
Connecting to the Public Line (If Using Only for Faxes)

Oki MC563 MFP Specifications

General

Print Technology	LED
Print Resolution	1200 x 1200 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax	Yes
Monthly Duty Cycle	Up to 60, 000 pages
Functions	Print, Copy, Scan, Fax
Duplex Printing	Yes
Print Speed	Up to 30 ppm
Scanner Type	Flatbed, ADF
Copy Speed	Up to 30 cpm
Connectivity	USB, Ethernet
Paper Capacity	250 sheets
