Oki MC563 MFP - Page 24

To Next Page

To Previous Page

- 24 -

2. Setting Up

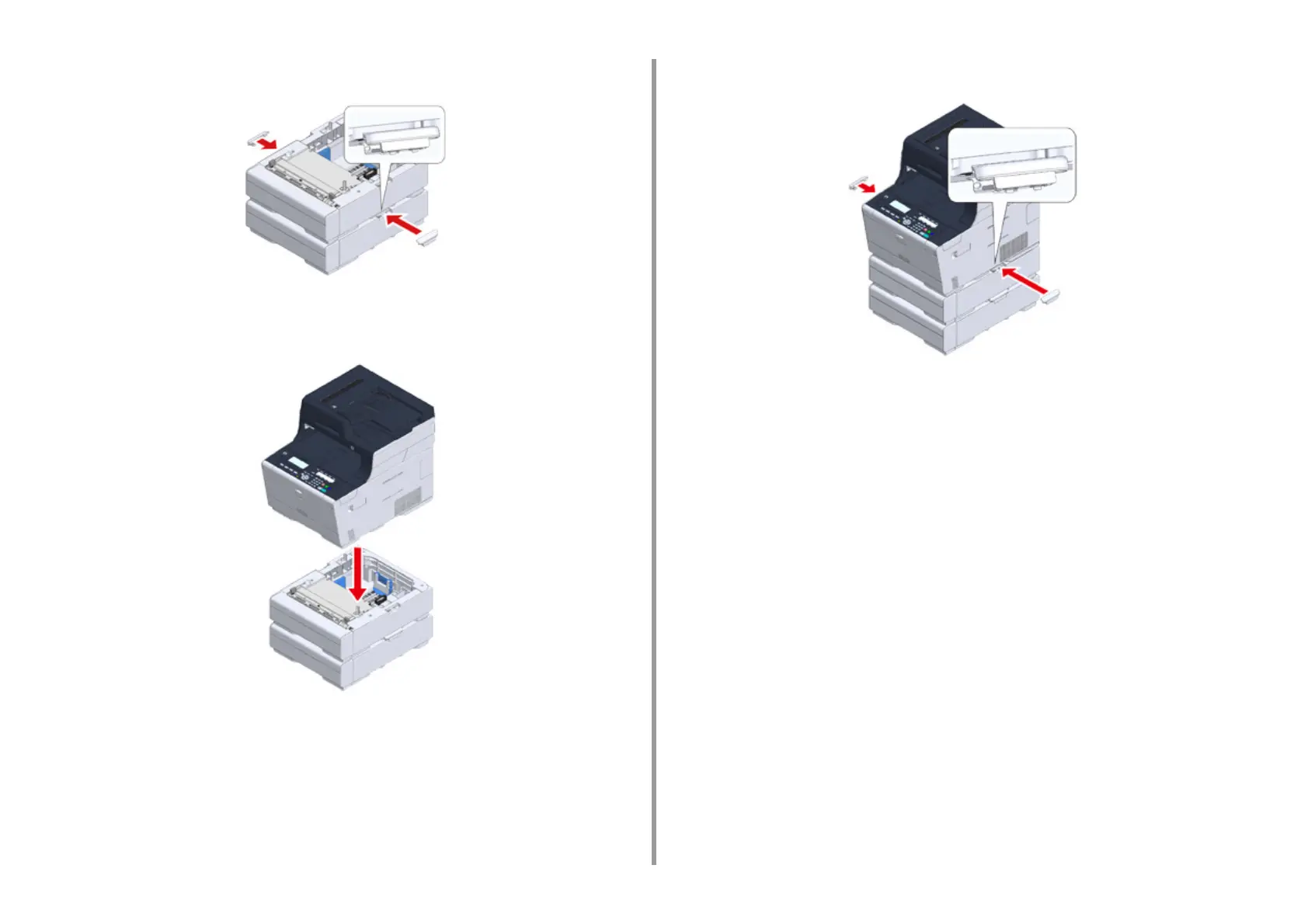

If you want to install two additional trays, fix them together with the lock pieces.

Slowly stack the machine on the additional tray unit aligning their back sides

and right sides.

Screw the machine and additional tray unit with the lock pieces.
