- 40 -

2. Setting Up

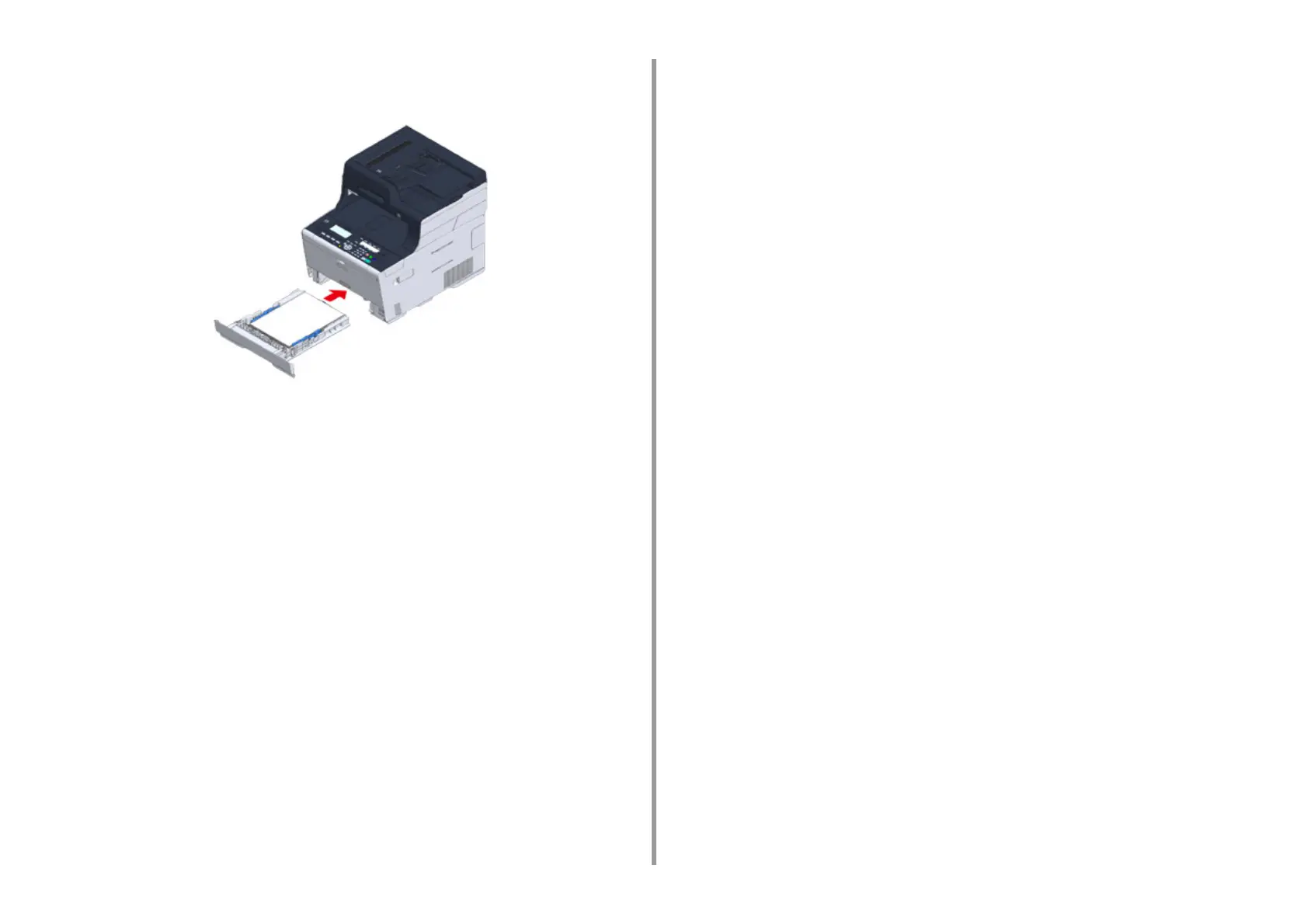

Replace the paper cassette into the machine.

Push the paper cassette until it stops.
