Oki MC563 User Manual

- 64 -
3. Basic Operations
Basic Operations on the Operator Panel
This section describes the operator panel of the machine.
• Names and Functions
• Name and Functions on the Operator Panel
• Adjusting the Angle of the Display Screen
• Entering Characters

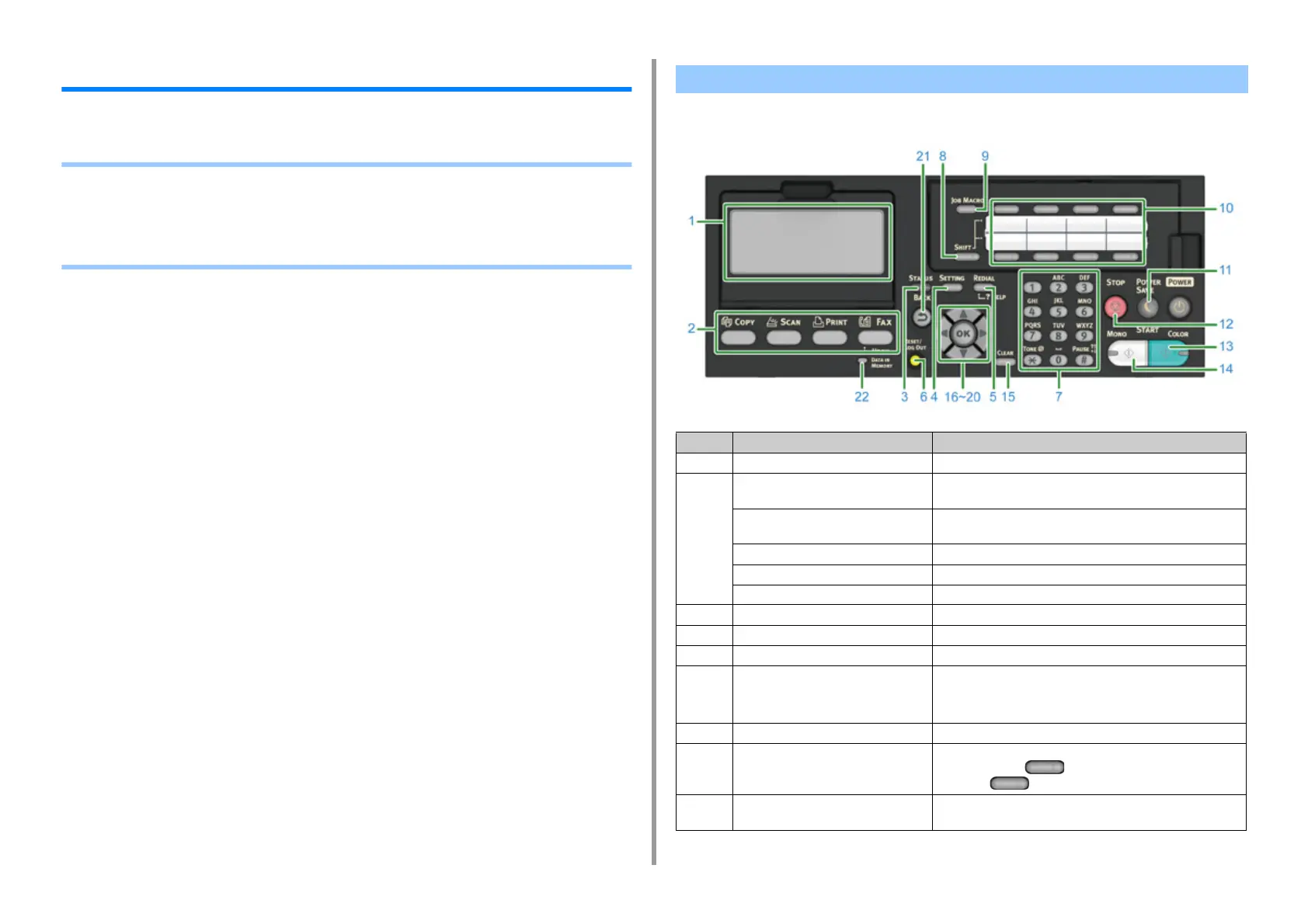

This section describes the names and functions of components on the operator panel.
Names and Functions
No. Name Function
1 Display screen Displays operating instructions and status of the machine.
2 Function Button Displays the top screen of each function. The selected button
lights in blue.
<FAX/Hook> button Displays the fax function screen. Pressing this button while the
fax function screen is displayed starts on hook dial operation.
<PRINT> button Displays the print function screen.
<SCAN> button Displays the scan function screen.
<COPY> button Displays the copy function screen.
3 STATUS Displays the status menu. Flashes/lights up if there is an error.
4 SETTING Displays the machine setting menu screen.
5 REDIAL/? HELP Displays the Help screen.
6 RESET/LOG OUT • On the top screen of each function, logs you out.
• On the setting item function, resets a setting value and returns
to the start screen of each function.
• On the start screen of each function, returns to the top screen.
7 Numeric keypad Enters numbers, alphabets, and symbols.
8 SHIFT Switches between two e-mail addresses or fax numbers that are
registered in each (ONE-TOUCH) by pressing this
button and (ONE-TOUCH) at the same time.
9 JOB MACRO Calls settings for the copy, scan or other functions.
You must register settings in advance.

Oki MC563 Specifications

General

Print Technology	LED
Print Resolution	1200 x 1200 dpi
Print Speed (Black)	30 ppm
Print Speed (Color)	30 ppm
Functions	Print, Copy, Scan, Fax
Copy Speed (Black)	30 cpm
Copy Speed (Color)	30 cpm
Copy Resolution	600 x 600 dpi
Scan Type	Flatbed, ADF
Scan Resolution	600 x 600 dpi
Fax Modem Speed	33.6 kbps
Paper Capacity	250 sheets
Maximum Paper Size	A4
Duplex Printing	Yes
Automatic Document Feeder (ADF)	50 sheets
Weight	29 kg
Fax Transmission Speed	3 seconds per page
Connectivity	USB, Ethernet, Wireless
Mobile Printing	AirPrint, Google Cloud Print
Operating System Compatibility	Windows, macOS
Monthly Duty Cycle	60, 000 pages
