ML1120/ML1190 User’s Guide - Paper handling > 28

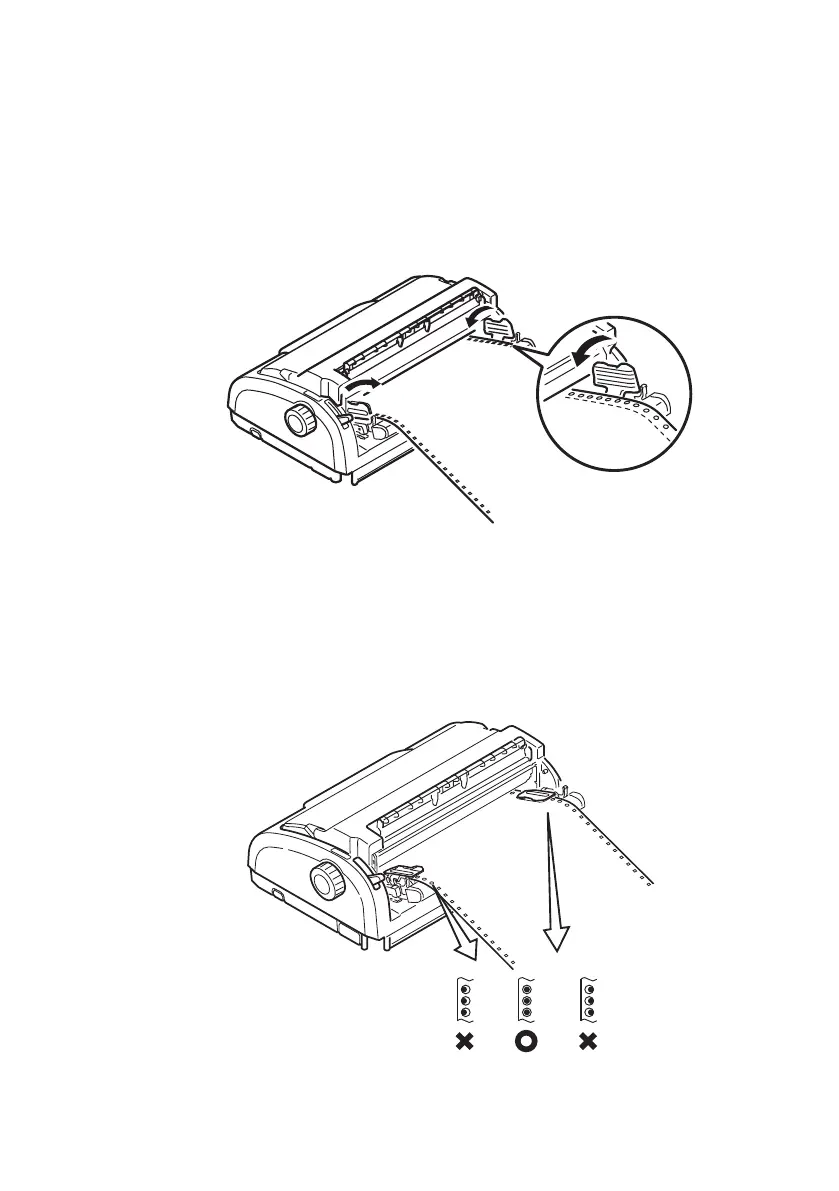

7. Open the left and right Pin Tractor covers and feed the
continuous forms in the direction of the arrows, locating the
sprocket holes in the forms onto the sprocket pins.
Ensure that the forms are properly aligned on the sprocket pins,
then close the covers.
8. Adjust the right Pin Tractor to accommodate the width of the
continuous forms, taking care that the forms are held neither too
loosely nor too tightly between the Pin Tractors. Press the locking
lever down to lock the right Pin Tractor in the desired position.
To Next Page
