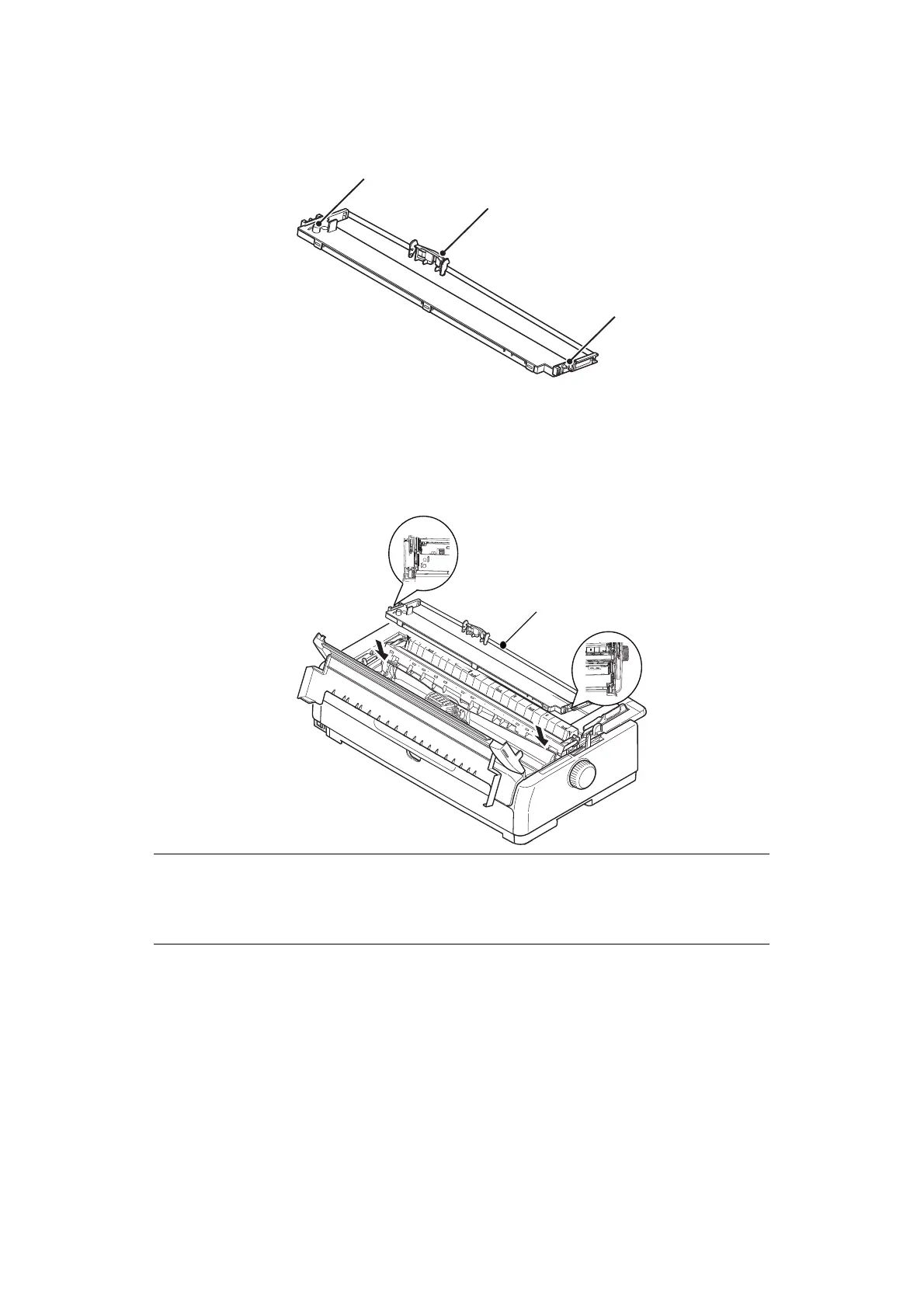

7. Remove the new ribbon cartridge from its wrapping and note the position of the
Ribbon Guide (1), Knob (2) and Pin (3).
8. In the direction indicated by the arrows, insert the pins at both ends of the ribbon
cartridge (1) into the U grooves (2) in the printer until the ribbon cartridge is fully
locked.
NOTE
It may be easier to mount the ribbon cartridge in place if you align it with the
topside of the grooves. Also, a slightly loose ribbon may make it easier to
mount the ribbon cartridge.
