Pellematic

11Pellematic

Pellematicincludesalltherelevantparametersandsettingsforthecontrolofthepelletboiler.

Thereareupto4Pellematicboilerspossible.

PellematicisintheMainmenu.

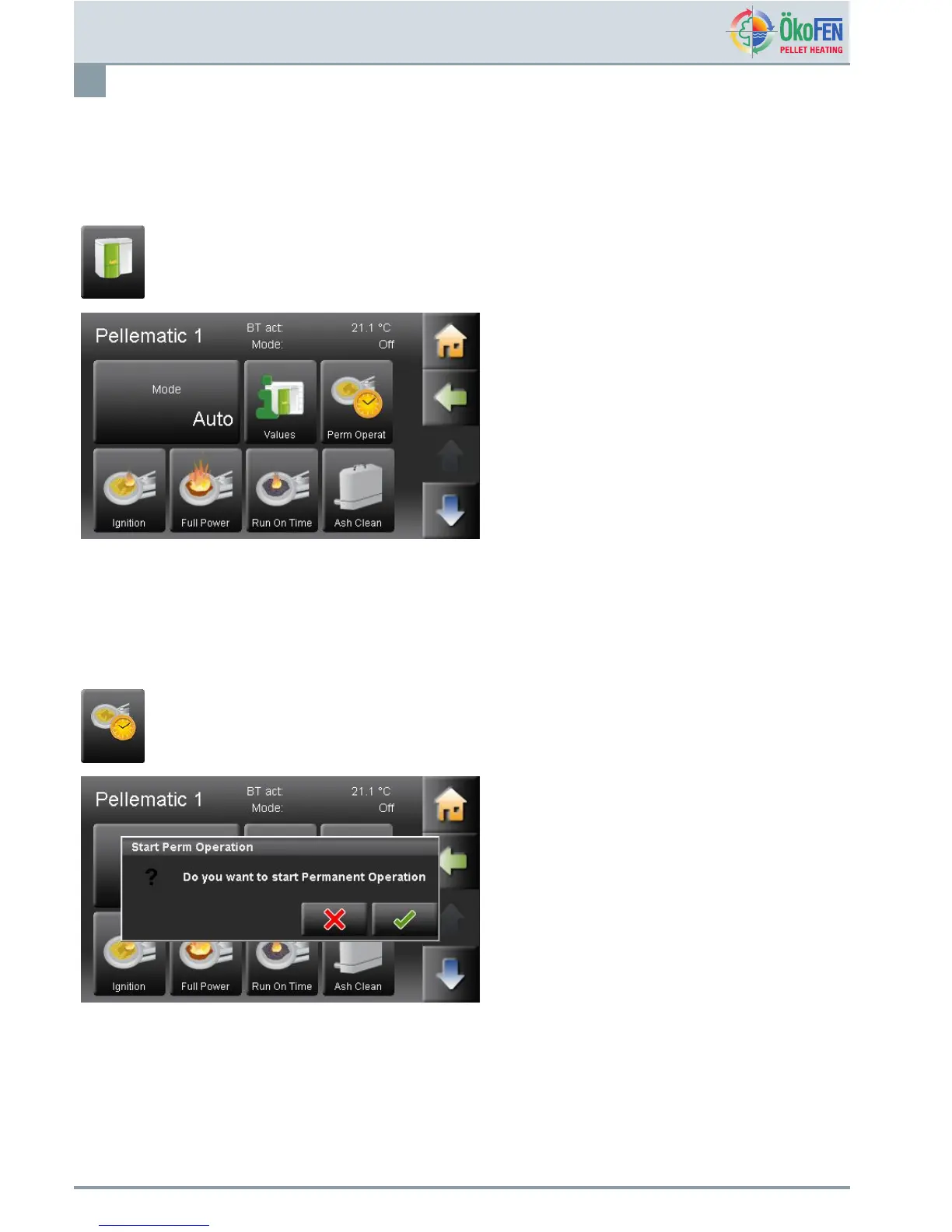

Pellematichasfollowingitems:

•MeasuringvaluesPellematic

•Permanentoperation

•Fullpower

•Burnerplatecleaning

•Boilercleaning

•Pelletlevel

11.1Permanentoperation

PermanentoperationisinthemenuPellematic.

Ifyouconrmthequery,youacitvatethefunction

Permanentoperation.

Firstofall,thespring-drivenmotoropensthere

protectionsystemattheburner-theprocesstakes

about2minutes.Afterthattheburnermotorrunsin

permanentoperationandtransportspelletstothe

burnerplate.Inheatingsystemswithaugerdelivery

itwillalsooperatetheextractionaugerinpermanent

operation.
