General

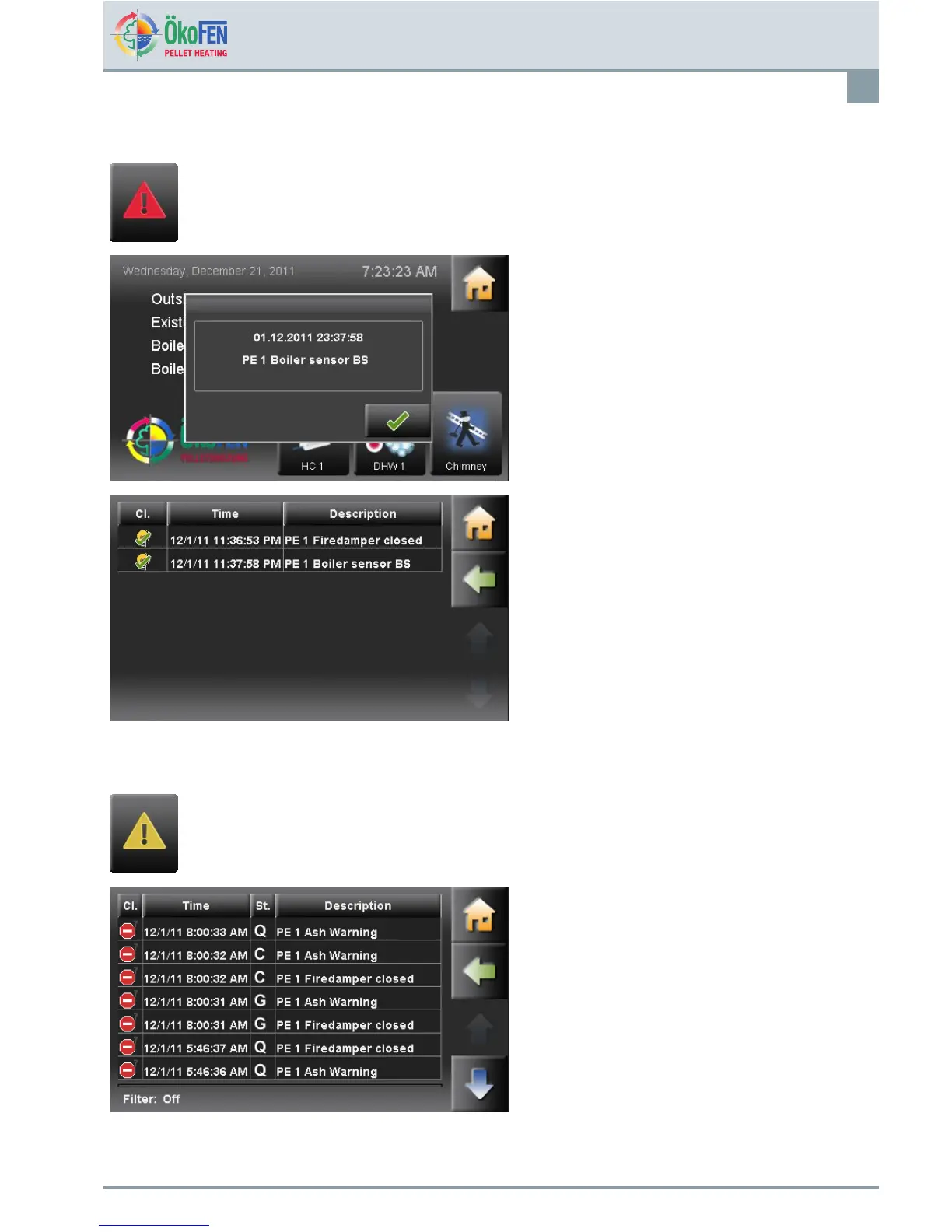

13.3Malfunction

MalfunctionisintheGeneralmenu.

Faultmessagesappearimmediately,theywilloverlay

allscreenmenuitems.Everyfaultmessagewill

displaythedate,timeandthetypeoffault.Itwill

remainuntilacknowledged.

Thefaultremainsintheincidentreportsloguntil

corrected.

13.4Information

InformationisintheGeneralmenu.

InthemenuitemInformationallfaultsarelisted

chronologically.

Thefaulttextshave3status

•C.....CURRENT—whenthefaultoccurs

•Q.....QUIT—whenthefaulthasbeenrectied

•G.....GONE—whenthefaulthasbeenresetby

pressingENTER

E1389EN2.0
