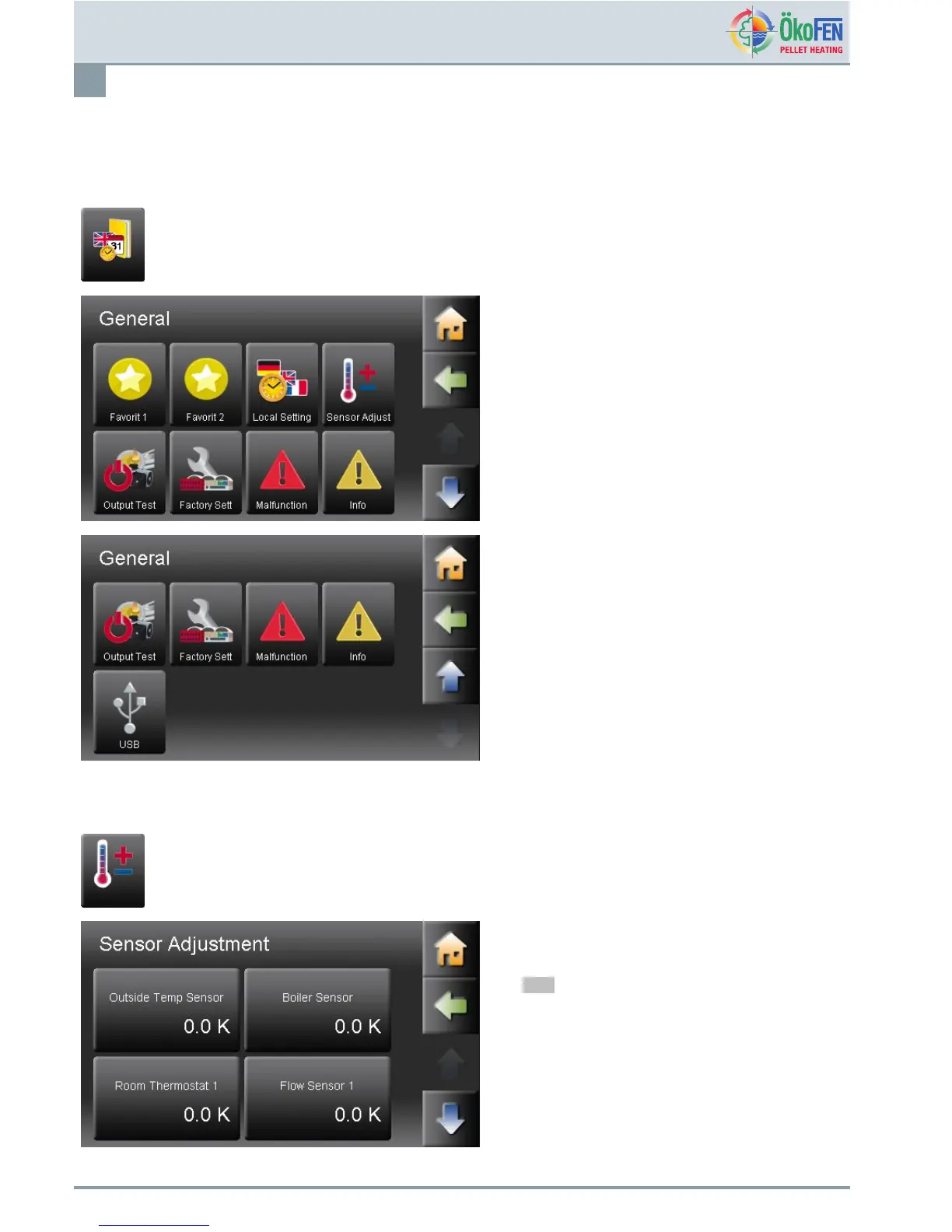

Generalsettings

29Generalsettings

Generalsettingsincludesthewholeheatingcontrol,allrelevantsettingsandindividualoperationoptionsforthecustomer.

GeneralsettingsisintheMainmenu.

Generalsettingscontains:

•Favorit1

•Favorit2

•LocalSetting

•SensorAdjust

•OutputTest

•FactorySetting

•Malfunction

•Information

•USB

29.1SensorAdjust

SensorAdjustisinthemenuGeneralSettings

Forlongcablelengthsareslightvariationsofthe

sensorvaluespossible.TheSensorAdjustfunction

allowsyoutoadjusteachsensorbyplus/minus10°C.

Note

Youhavetoconnecteachsensortothe

heatingcontrollerandactivateitinthemenu

itemPeripheryLearning.

OperatingmanualPelletronicTouch

E1389EN2.0
