Pellematicsettings

27Pellematicsettings

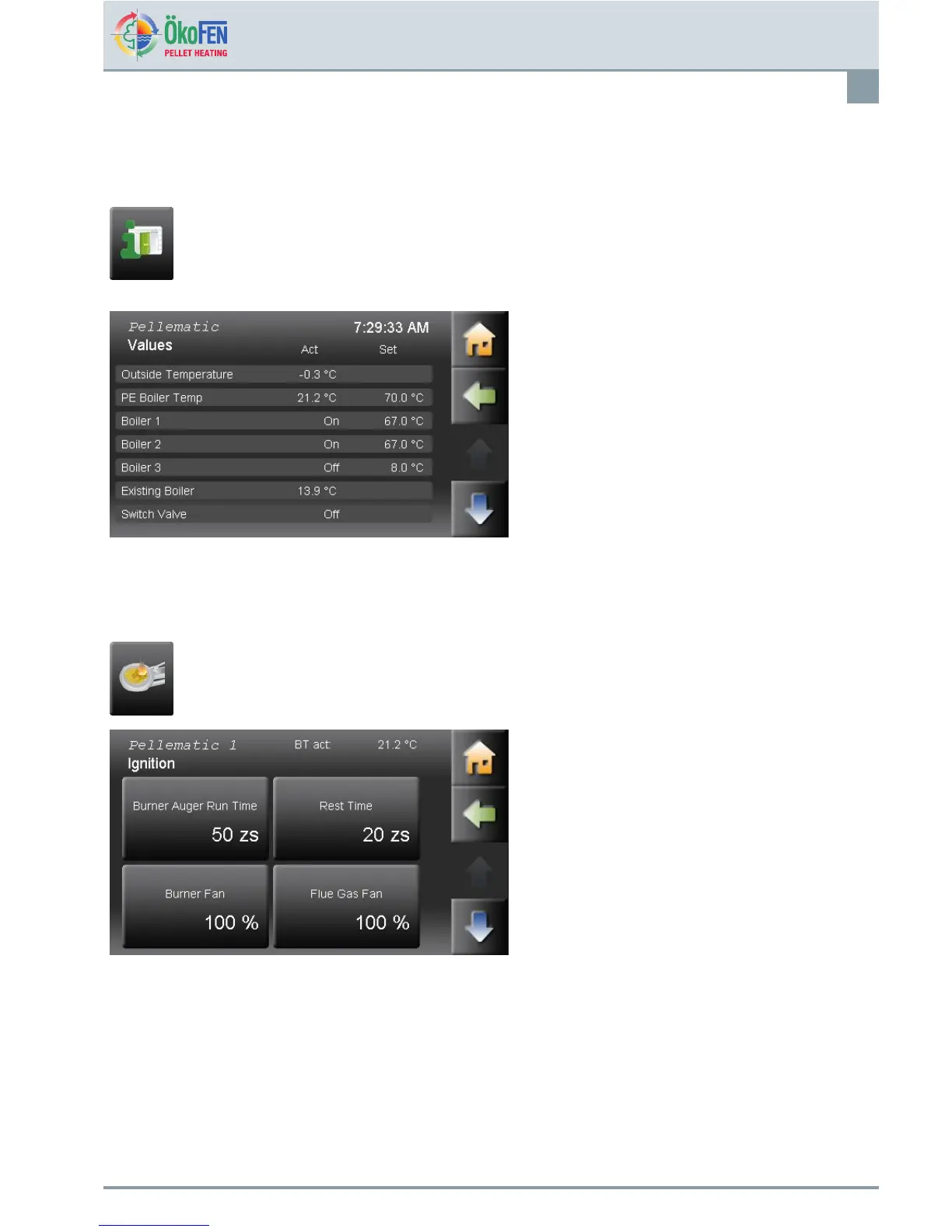

27.1Measuringvalues

MeasuringvaluesisinthePellematicmenu.

ItdisplaysallmeasuringvaluesofPellematic:

•Actualvalues

•Setvalues

•Inputs(sensors)

•Outputs(pumps,mixerandmotors)

27.2Ignitionsettings

IgnitionsettingsisinthemenuPellematic.

Ignitionsettingshasfollowingmenuitems:

•BurnerAugerRunTime

•RestTime

•BurnerFan

•FlueGasFan

•HystFlueGasTemp

•MinFlueGasTemp

•MaxFlueGasTemp

TheadditionalmenuitemsIgnitionsettingsarefortheÖkoFENServicetechnician.Theyarepresentafter

enteringthecode:

BurnerAugerRunTime

Rundurationoftheburneraugerduringtheignitionperiod,

expressedintenthsseconds.

RestTime

RestTimeoftheburneraugerduringtheignitionperiod,

expressedintenthsseconds.

BurnerFan

Speedofthecombustionairfanduringtheignitionperiod.

FlueGasFanSpeedoftheuegasfanduringtheignitionperiod.

E1389EN2.0

OperatingmanualPelletronicTouch
