Olivetti d-Copia 3003MF - Page 172

2MH/2MJ/2MK/2ML
1-5-35
10. Check or replace the fuser unit and refit
all the removed parts.
Caution: When reinstalling the fuser
unit, tighten up a screw while pressing
the fuser unit in order of 1 to 2.

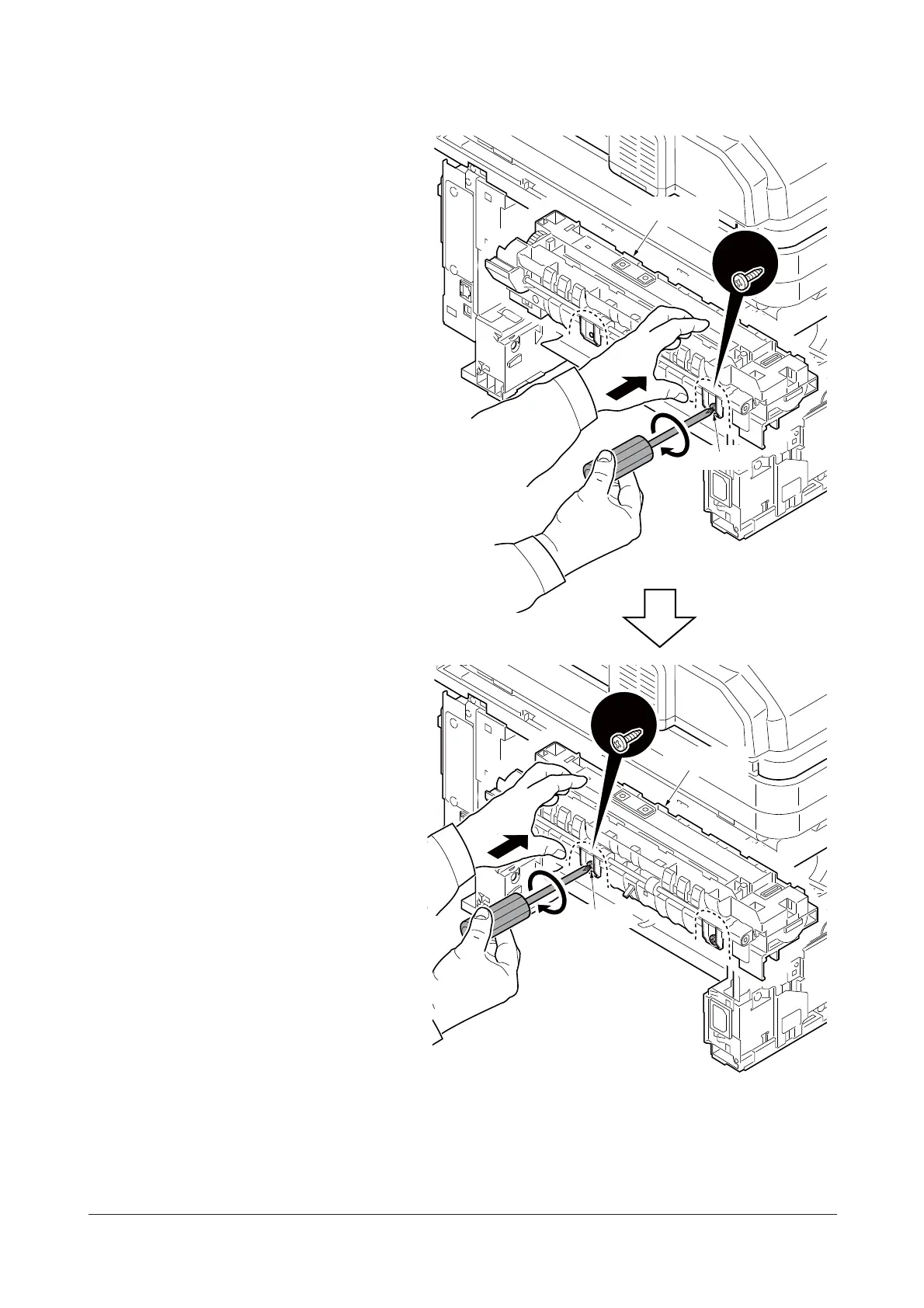

Figure 1-5-53
1
2
Fuser unit
Screw
Screw
Fuser unit
Y113860-1 Sevice Manual
