6. Remove two stop rings and then remove DP
feed pulley shaft from the DP feed pulley
unit.
7. Remove DP feed pulley from the DP feed
pulley shaft.
8. Clean or replace the DP forwarding pulley
and the DP feed pulley.
Refit all the removed parts.

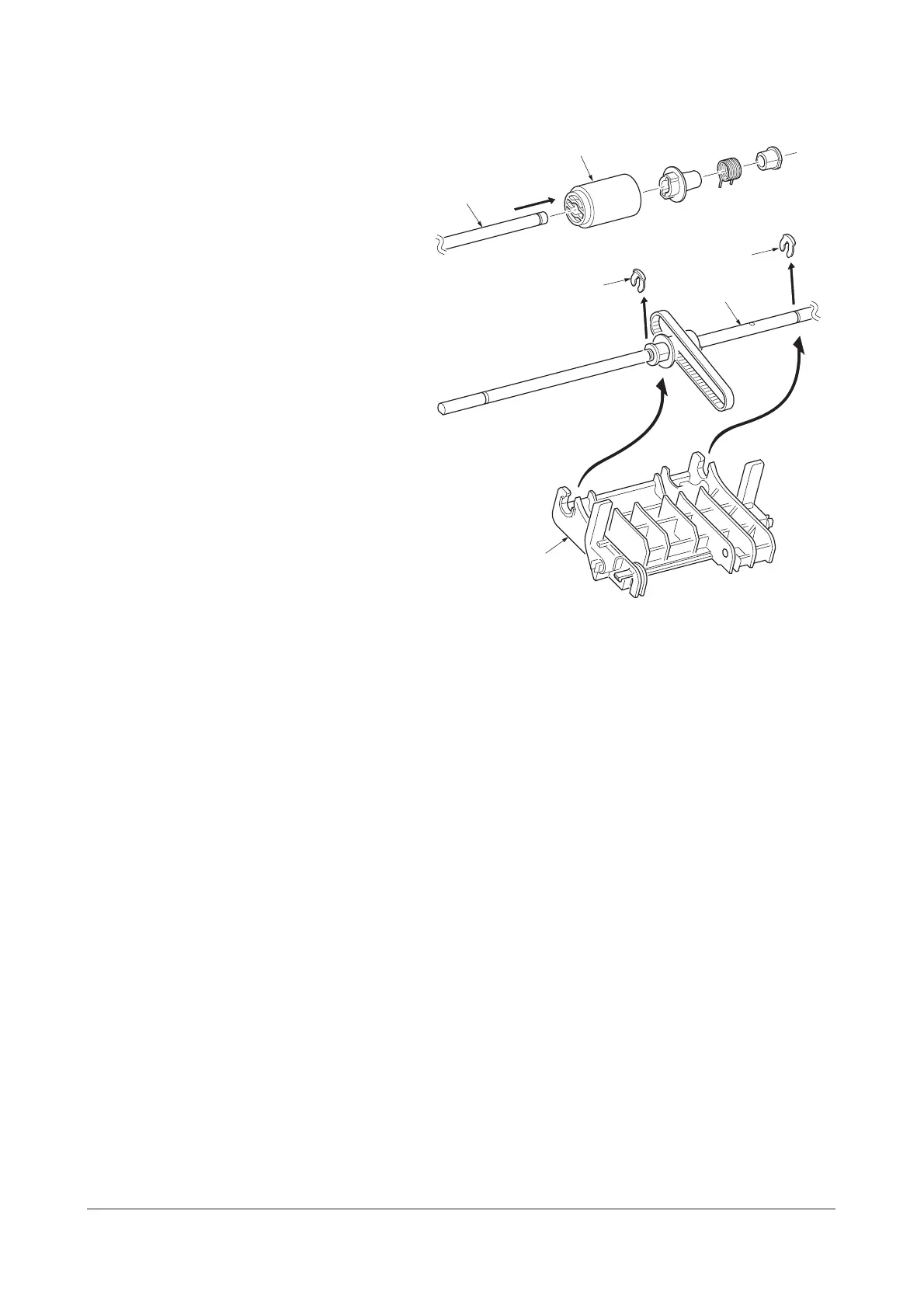

Figure 1-5-3
Stop ring
Stop ring
DP feed
pulley unit
DP feed
pulley shaft
DP feed
pulley shaft
DP feed pulley
