Olivetti DP-670 - Electrical Parts Layout; Pwbs

3K5
2-2-1
2-2 Electrical Parts Layout
2-2-1 Electrical parts layout
(1) PWBs

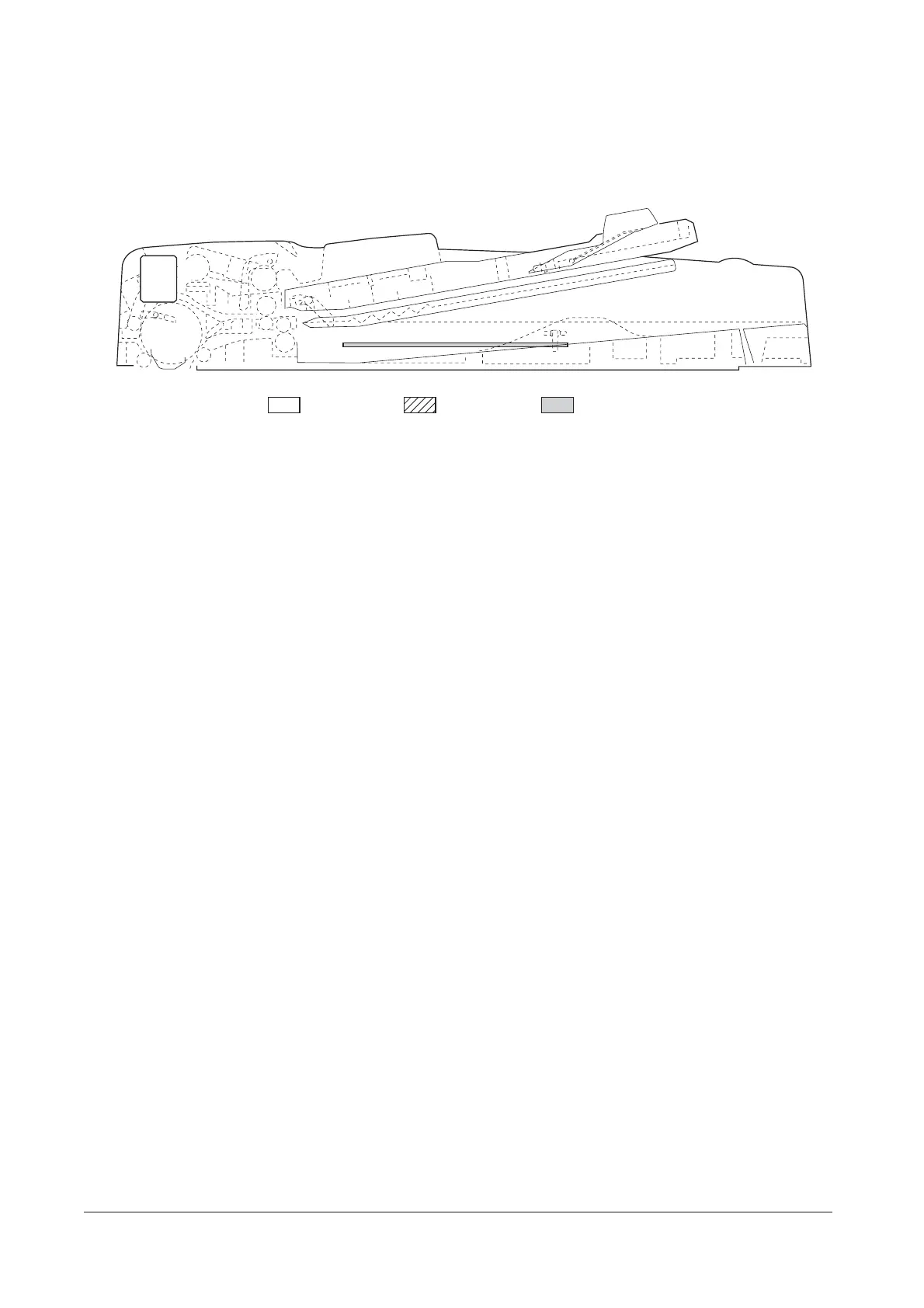

Figure 2-2-1 PWBs
1. DP main PWB (DPMPWB) .......................... Controls electrical components of the DP.
2. Original set LED PWB (OSLEDPWB).......... Indicates presence of originals on the DP or an original jam.
1
2
Machine front Machine inside Machine rear
