Olivetti DP-670 - Switches and Sensors

3K5
2-2-2
(2) Switches and sensors

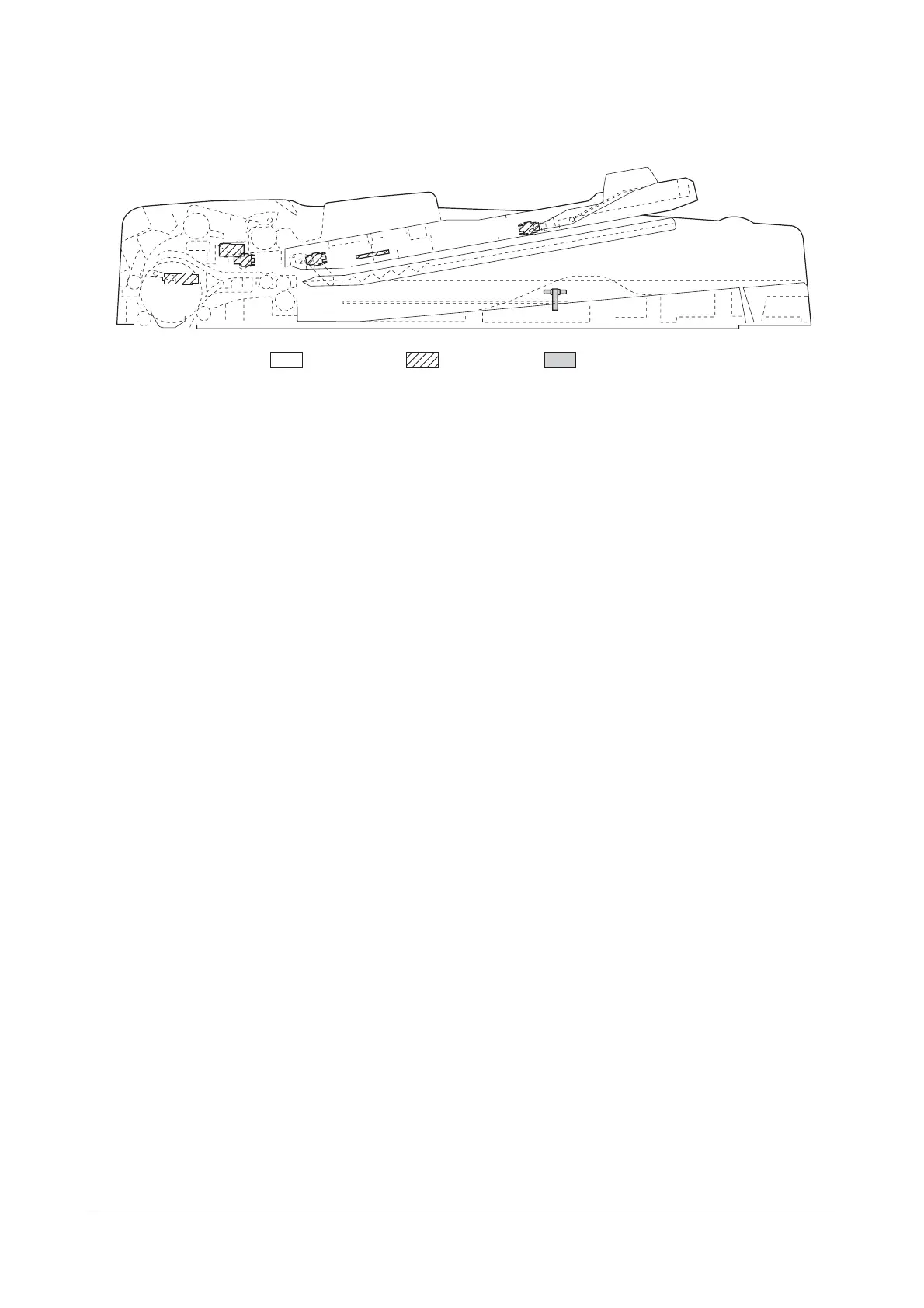

Figure 2-2-2 Switches and sensors
1. DP interlock switch (DPILSW) ..................... Breaks the safety circuit when the document processor top cover is
opened; resets original misfeed detection.
2. Original set switch (OSSW) ......................... Detects the presence of an original.
3. DP timing switch (DPTSW) .......................... Detects the original scanning timing.
4. Original switchback switch (OSBSW) .......... Detects an original misfeed in the original switchback section.
5. Original size width switch (OSWSW) ........... Detects the width of the original.
6. Original size length switch (OSLSW) ........... Detects the length of the original.
7. DP open/close switch (OPOCSW)............... Detects the opening/closing of the DP.
1
2
4
5
6
7
3
Machine front Machine inside Machine rear
Service Manual Y108671-9
