(2) Detaching and refitting the DP separation pad
Follow the procedure below to clean or replace the DP separation pad.
Procedure
1. Remove the DP feed pulley unit. (see page
1-5-2)
2. Push the inserted parts of the DP separation
pad and then remove the DP separation
pad.
3. Clean or replace the DP separation pad.
Refit all the removed parts.

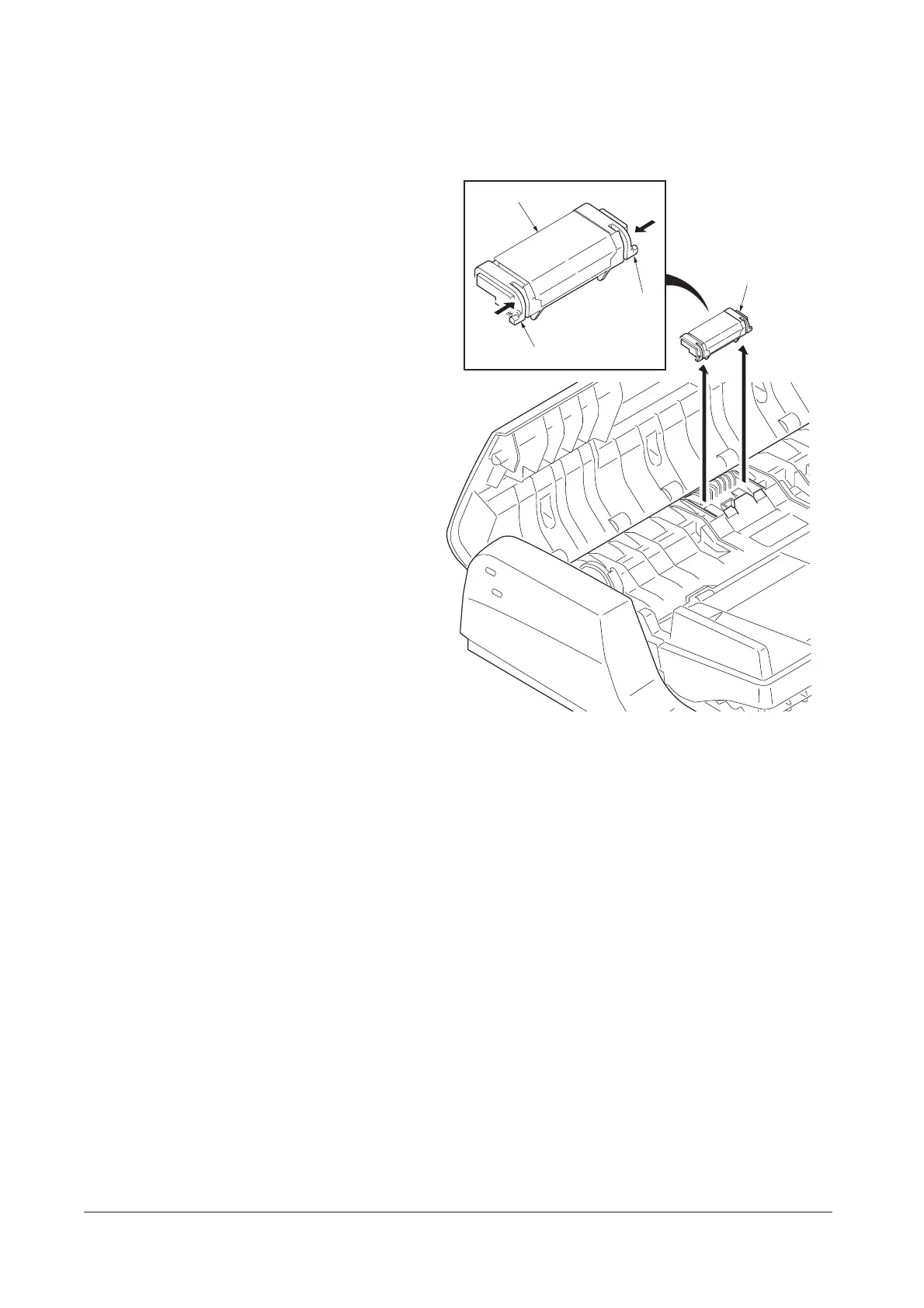

Figure 1-5-4
DP separation pad
DP separation pad
Inserted part
Inserted part
