4.4 Connection of an endoscope
45
CLV-190 INSTRUCTION MANUAL
Ch.4
Connection of a flexible endoscope
1 Inspect the endoscope as described in the endoscope’s instruction manual.
2 Insert the endoscope connector or light guide connector into the output socket on the
front panel of the light source until it clicks.

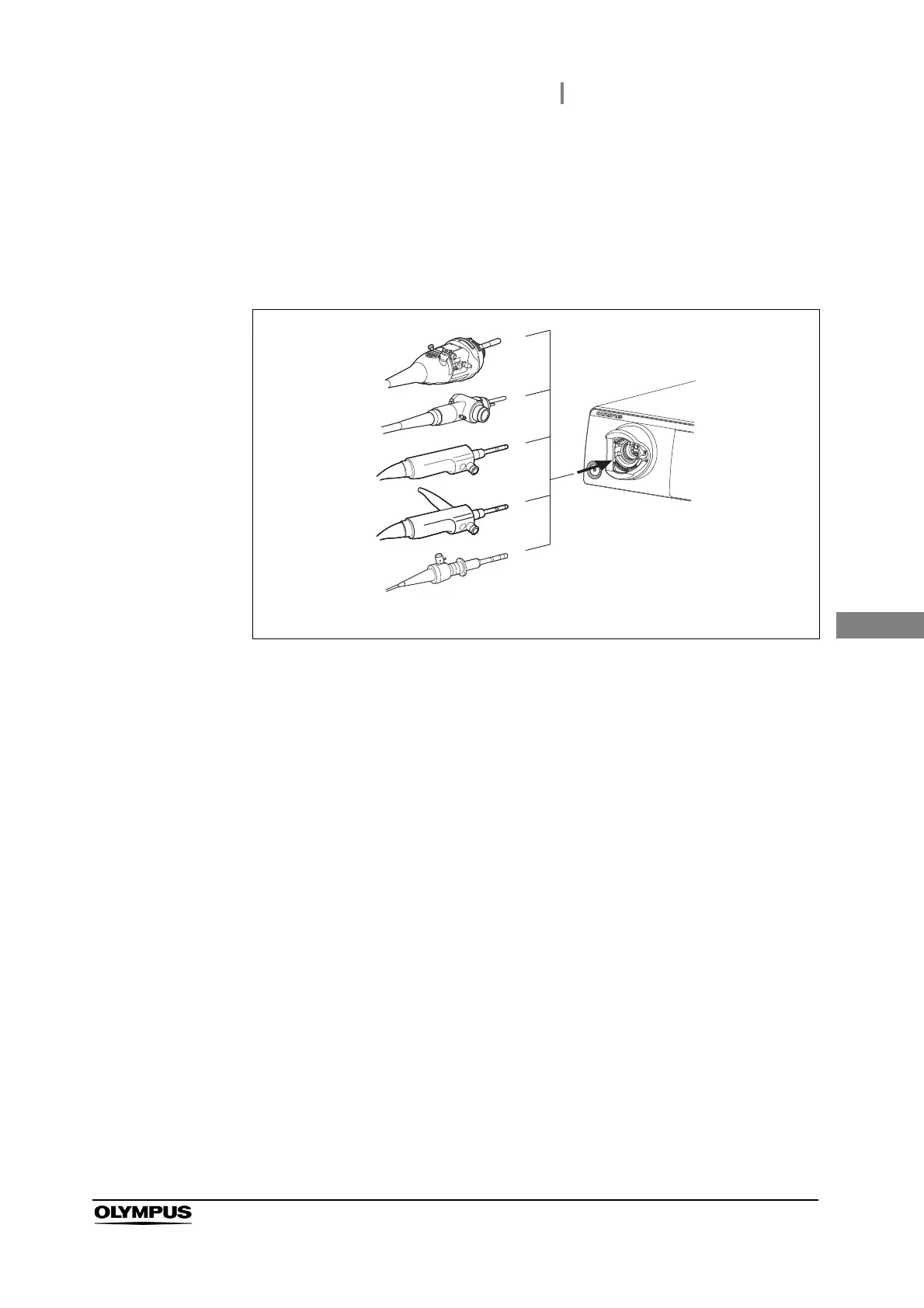

Figure 4.2
3 Connect the videoscope cable and water container to the endoscope as described in
the endoscope’s instruction manual.
The connector design varies depending on the endoscope model.
