10
CX22LED
Fig. 14
6
Adjusting the Condenser Position and Aperture Iris Diaphragm
(Fig. 14)
}The condenser is usually used in the highest position. If the entire observed
field of view is not bright enough, brightness may be improved by lowering
the condenser slightly.
1. Rotate the condenser height adjustment knob 1 to move the condenser
to the highest position.
2. The aperture iris diaphragm ring 2 has an objective magnification
scale (4X, 10X, 40X, 100X). Rotate the ring so that the magnification
of the objective in use faces frontward.
7
Switching the Objectives
(Fig. 15)
Fig. 15
Hold and rotate the revolving nosepiece 1 so that the objective to be
used comes exactly above the specimen.
²
@
@
Fig. 12
Fig. 13
5

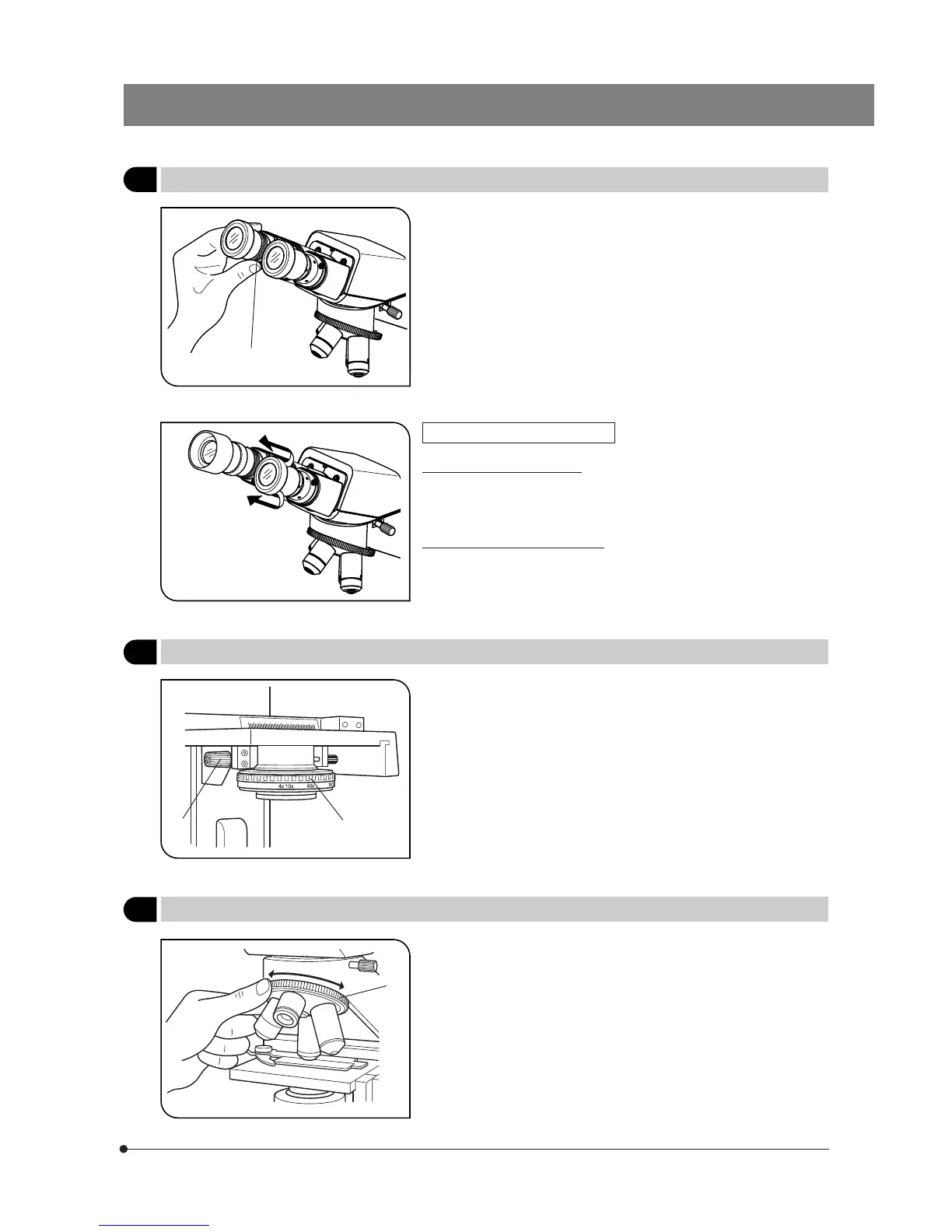

Adjusting the Diopter
(Fig. 12)
}The diopter adjustment is to compensate for the difference in eyesight
between your eyes.
1. While looking through the right eyepiece with your right eye, rotate
the coarse and fine focus adjustment knobs to bring the specimen
into focus.
2. While looking through the left eyepiece with your left eye, rotate only the
diopter adjustment ring 1 to focus on the specimen.
Using the Eye Shades (Fig. 13)
When Wearing Eyeglasses
Use the eye shades in the normal, folded-down position. This will prevent
the eyeglasses from being scratched.
When Not Wearing Eyeglasses
Extend the folded eye shades in the direction of the arrow to prevent
extraneous light from entering between the eyepieces and eyes.
@
To Next Page
