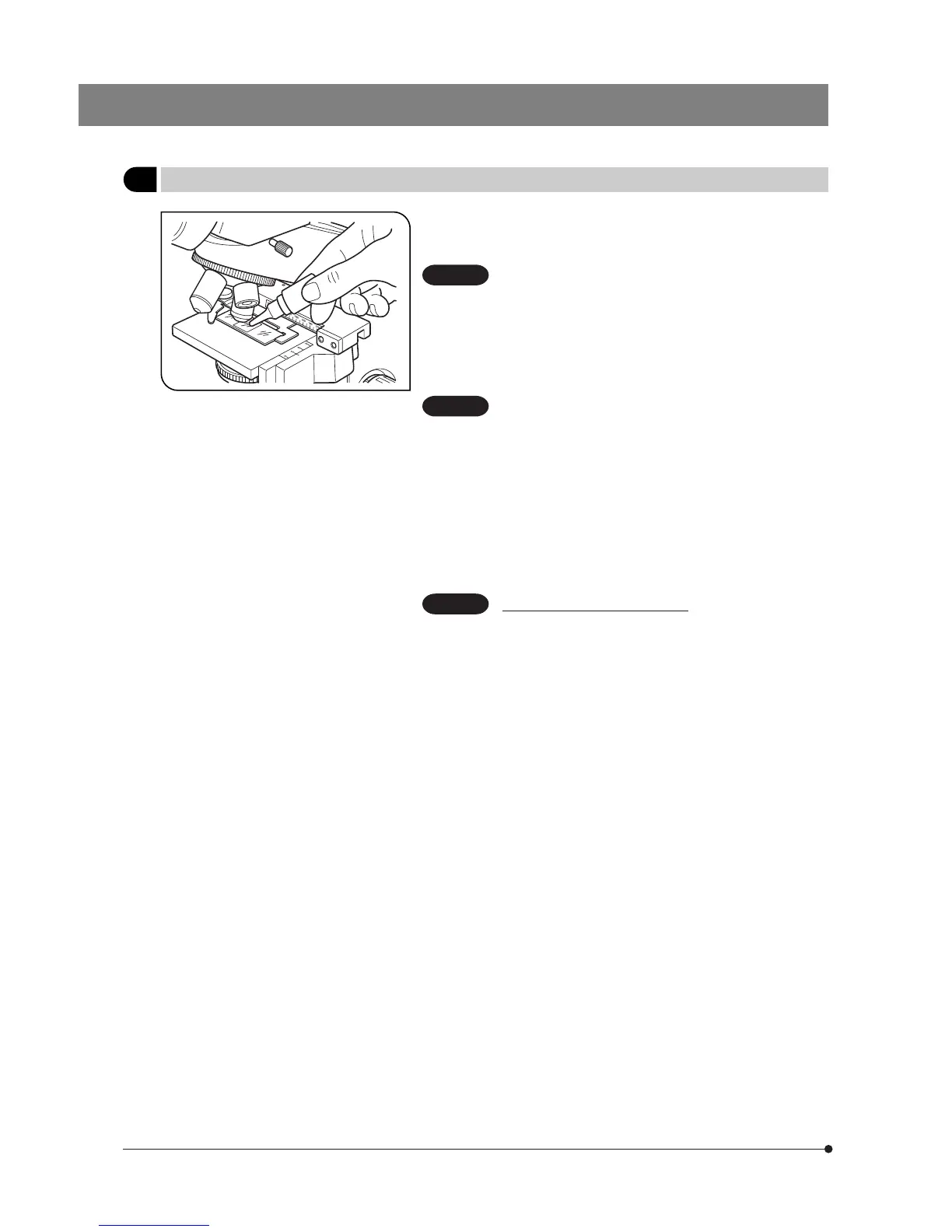

Fig. 16
8
Using the 100X Immersion Objective
(Fig. 16)
}The designated immersion oil should be applied to the top lens of the
100X immersion objective. Otherwise, the observed image will be unable
to be focused on.
Always use the immersion oil supplied by Olympus.
1. Focus on the specimen using all objectives, starting from the lowest-
power objective to higher-power objective.
2. Before engaging the immersion objective in the light path, place a drop of
the provided immersion oil onto the specimen at the area to be observed.
3. Rotate the revolving nosepiece to engage the immersion objective and
rotate the fine adjustment knob to bring the specimen into focus.
Since air bubbles in the oil will affect the image quality,
make sure that the oil is free of bubbles.
To remove bubbles, rotate the revolving nosepiece slightly
to move the oil-immersed objective by one reciprocation
or two.
}The condenser of this microscope manifests the full performance when
oil is placed between the slide glass and the front lens of condenser. If oil
is not applied there, the observation image may become slightly dark.
4. After use, remove oil from the objective front lens by wiping with gauze
slightly moistened with absolute alcohol.
Caution in use of immersion oil
If immersion oil enters your eyes or contacts your skin,
immediately take the following treatment.
Eyes: Rinse with fresh water (for 15 minutes or more).
Skin : Rinse with water and soap.
If the appearance of the eyes or skin is altered or pain
persists, immediately see your doctor.
CAUTION
CAUTION
CAUTION
