Olympus CX22LED - Optional Accessories; System Diagram of Optional Accessories; Installation and Operation of Optional Accessories; Filter Holder CH2-FH and Darkfield Ring CH2-DS

18
CX22LED
Fig. 19
1
Filter Holder CH2-FH and Darkfield Ring CH2-DS (Fig. 19)
}This holder accommodates the CH2-DS darkfield ring.
1. Insert the darkfield ring @ in the CH2-FH filter holder 2.
2. Push the filter holder 2 containing the darkfield ring @ into the bottom of
the condenser until it clicks into place.
}The darkfield ring enables darkfield observation using an objective from
4X to 40X.
²
@
OPTIONAL ACCESSORIES

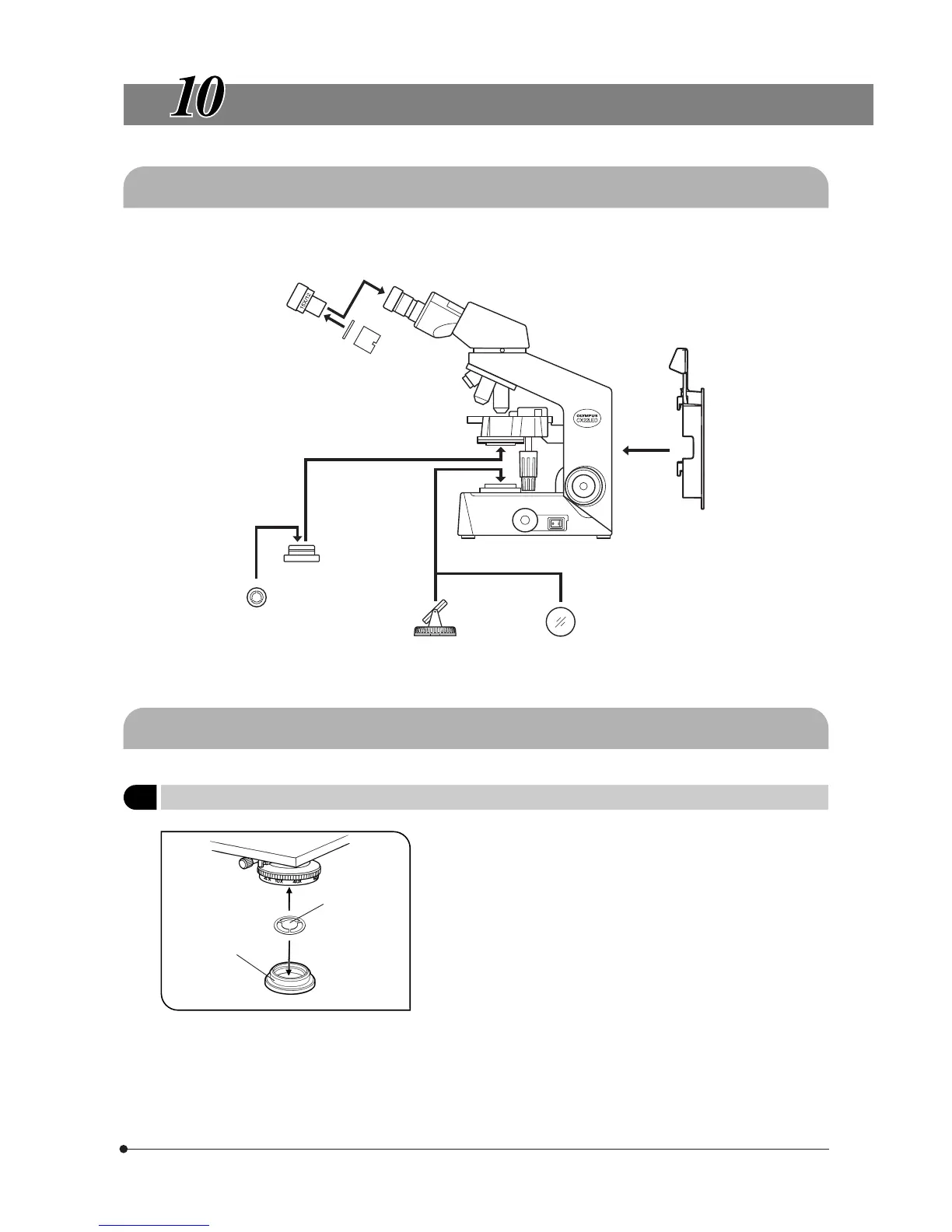

10-1 System Diagram of Optional Accessories
10-2 Installation and Operation of Optional Accessories
Eyepieces
WHC15X
WHC15X-H
Filter Holder
CH2-FH
Reflection Mirror
CH20-MM
45 mm filter
Darkfield Ring
CH2-DS
Microscope Frame
CX22LED
Eyepiece
micrometer
Cord Hanger
CX22LED-CH
Reticle holder
20.4RH
