19
2

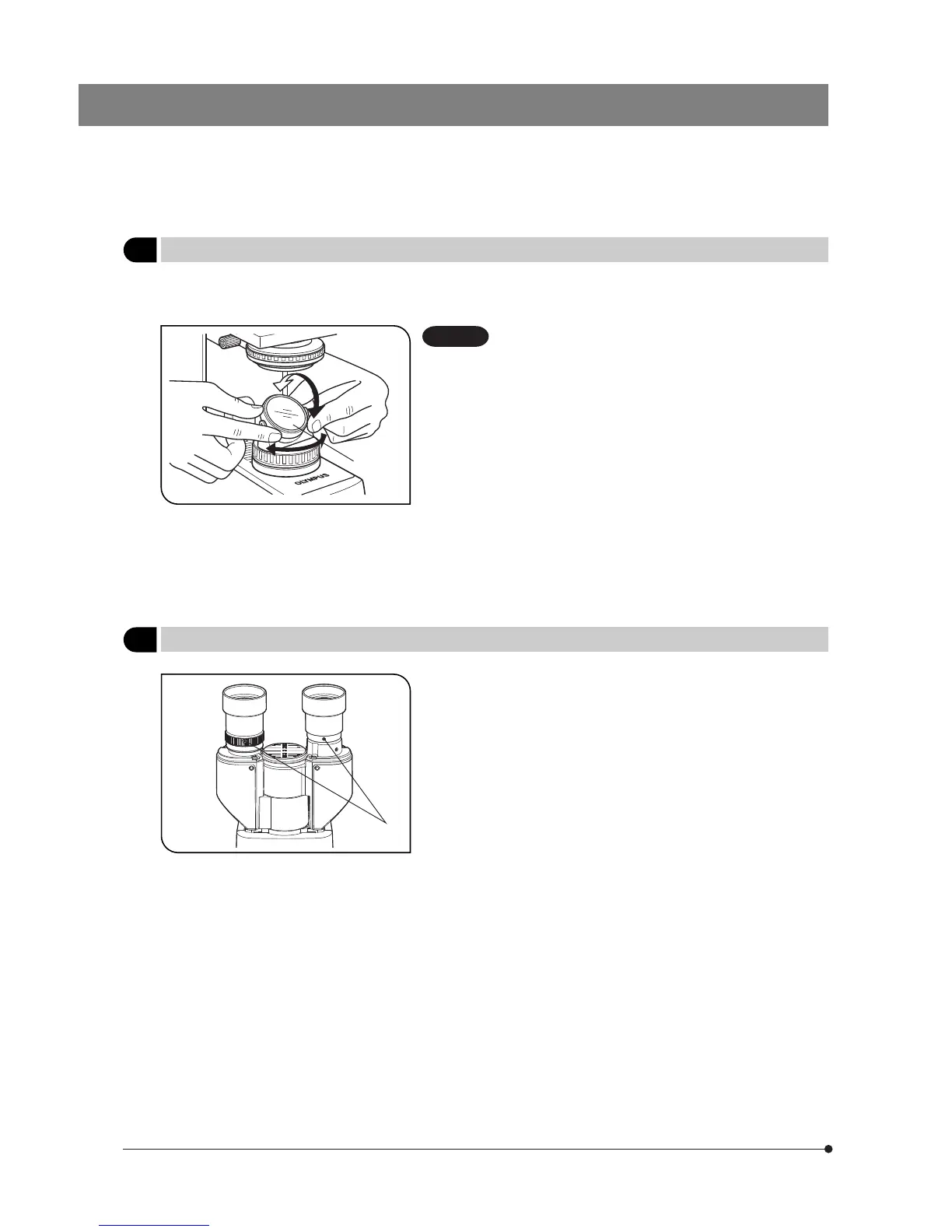

Reflection Mirror CH20-MM
(Fig. 20)
}The reflection mirror is designed to be used in microscopic observation in a location where power supply is not available.
It makes it possible to use the natural light in place of the LED illumination.
Fig. 20
The microscope should be installed near a window, in a
place that is not exposed to direct sunlight.
The eyepieces should be oriented toward the rear so
that the reflection mirror receives the bright light. Loosen
the observation tube clamping knob and rotate the tube
by 180°.
1. Fit the reflection mirror in the window lens of the microscope frame by
aligning the mounting tab.
2. The reflection mirror 1 should be pointed toward the bright area. While
observing the image through eyepieces, adjust the orientation of the
reflection mirror.
}A planar reflection mirror is used normally. However, if the image bright-
ness is uneven or the outside view is visible in the image, use a concave
reflection mirror.
@
3
Eyepieces WHC15X/WHC15X-H
(Fig. 21)
}The standard 10X eyepieces are clamped using screws.
1. Using a small flat-blade screwdriver, loosen the clamping screw 1 of a
10X eyepiece and remove it.
2. Insert the WHC15X or WHC15X-H into the eyepiece sleeve and tighten
the clamping screw 1.
CAUTION
Fig. 21
@
