CX22LED
Start observation.

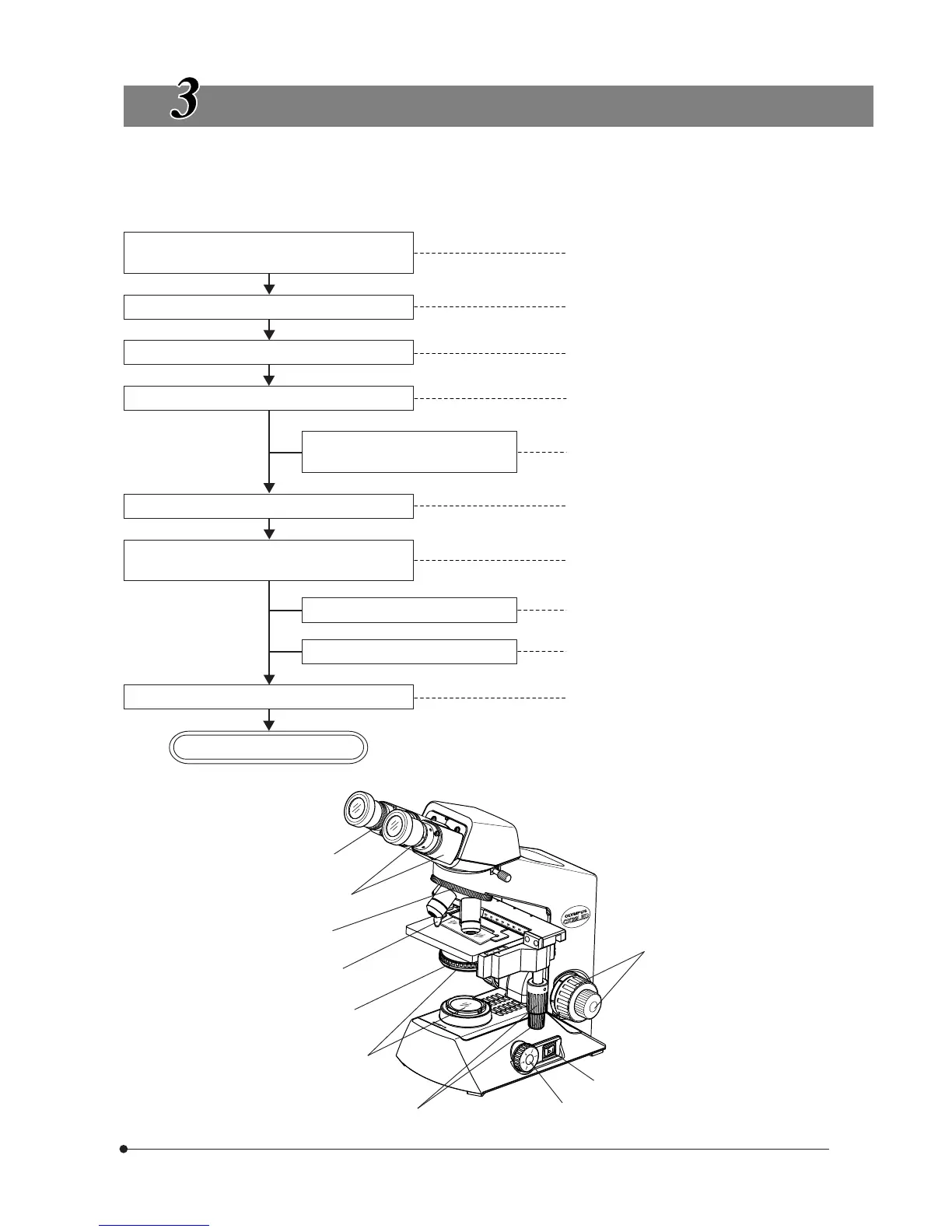

SUMMARY OF BRIGHTFIELD OBSERVATION PROCEDURE
1Main switch (P. 7)
2Light intensity adjustment knob (P. 7)
3Specimen holder (P. 7)
4X-axis/Y-axis feed knobs (P. 7)
5Revolving nosepiece (P. 10)
6Coarse/fine focus adjustment knobs (P. 8)
Adjust the interpupillary distance.
Adjust the diopter.
7Binocular tube (P. 9)
8Diopter adjustment ring (P. 9)
9Aperture iris diaphragm ring (P. 10)
aFilters (Diameter: 45 mm) (P. 5)
Engage the required filters.
5Revolving nosepiece (P. 10)
6Coarse/fine adjustment knobs (P. 8)
Adjust the brightness.
2Light intensity adjustment knob (P. 7)
(Items Used)
(Page)
1
2
4
6
a
9
3
5
7
8
Adjust the aperture iris diaphragm.
9Aperture iris diaphragm ring (P. 10)
Engage the objective to be used in the light
path and bring the specimen in focus.
Adjust the aperture iris diaphragm.
Set the main switch to “ I " (ON) and adjust
the brightness.
Place the specimen on the stage.
Engage the 10X objective in the light path.
Bring the specimen in focus
To Next Page
