Olympus E-P1 - Super Control Panel

7
EN
Names of parts and functions
Basic guide
Super control panel

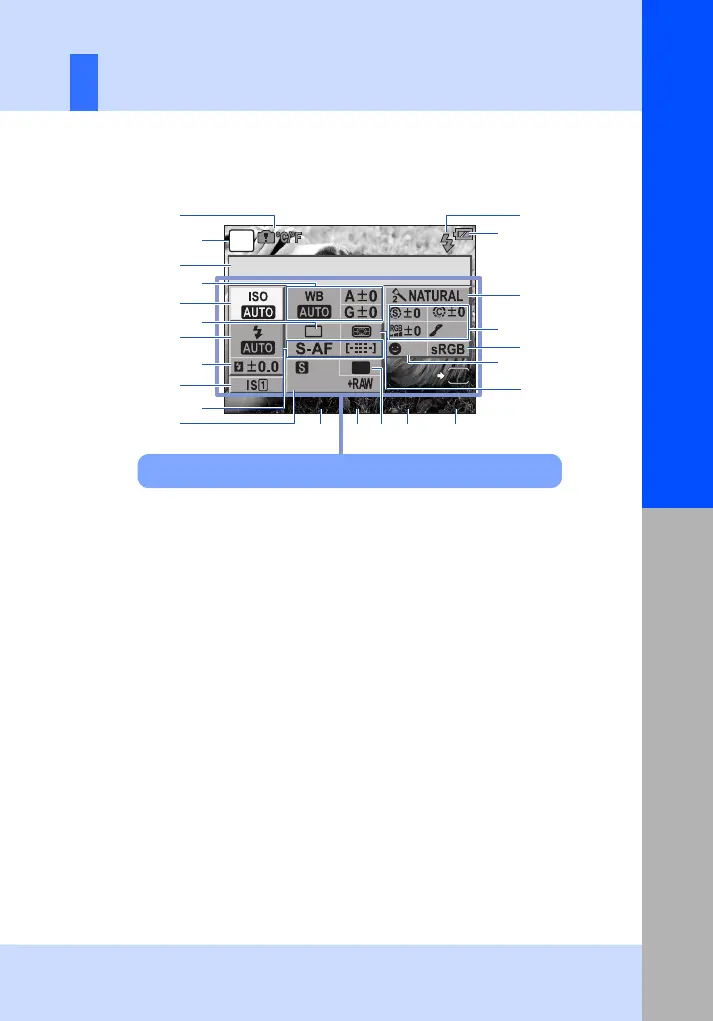

The following screen allows the display and setting of shooting settings at the same time
and is called the super control panel. On the live control display, press the INFO button
to switch to the super control panel.
g“Setting while looking at the super control panel” (P. 23)
• Movie recording mode is not displayed.
mall
Super Fine
OFF
ISO
4 : 3
NORM
250
250
250
F5.6
F5.6
+2.0
+2.0
3 8
38
P
LIVE
INFO
LIVE
INFO
c
e
2
8
4
6
g
1
3
5
7
9
a
d
f
b
k
m l j i
0
h
The functions within this area can be set on the super control panel.
1 Internal temperature warning
mgP. 127
Arrow pad function ep gP. 102
2 Shooting mode gP. 4, 44-47
3 Function name
4 White balance gP. 67
White balance compensation gP. 68
5 ISO sensitivity gP. 53
6 Sequential shooting/self-timer gP. 61-62
7 Flash mode gP. 75
8 Flash intensity control gP. 77
9 Image stabilizer gP. 62
0 AF mode gP. 56
AF target gP. 58
a Record mode gP. 64
b Flash charging gP. 124
c Battery check gP. 8
d Picture mode gP. 71
e Sharpness NgP. 71
Contrast JgP. 71
Saturation TgP. 71
Gradation zgP. 72
B&W Filter xgP. 71
Picture tone ygP. 71
f Color space gP. 108
g Face detection gP. 39, 104
h Metering mode gP. 49
i Number of storable still pictures gP. 140
j Exposure compensation value gP. 50
Exposure level gP. 47
k Aspect ratio gP. 40
l Aperture value gP. 44-47
m Shutter speed gP. 44-47
