3.7 Connection of the foot switch
CLV-190 INSTRUCTION MANUAL
Ch.3
NOTE
• If the foot switch is connected to the light source and the video system center is
ON, the function of the foot switch depends on the setting of the video system
center.
• Two foot switches can be used if they are connected to the video system center
and light source respectively.
3.7 Connection of the foot switch
Connect the foot switch (MAJ-1391, optional) to the foot switch terminal.

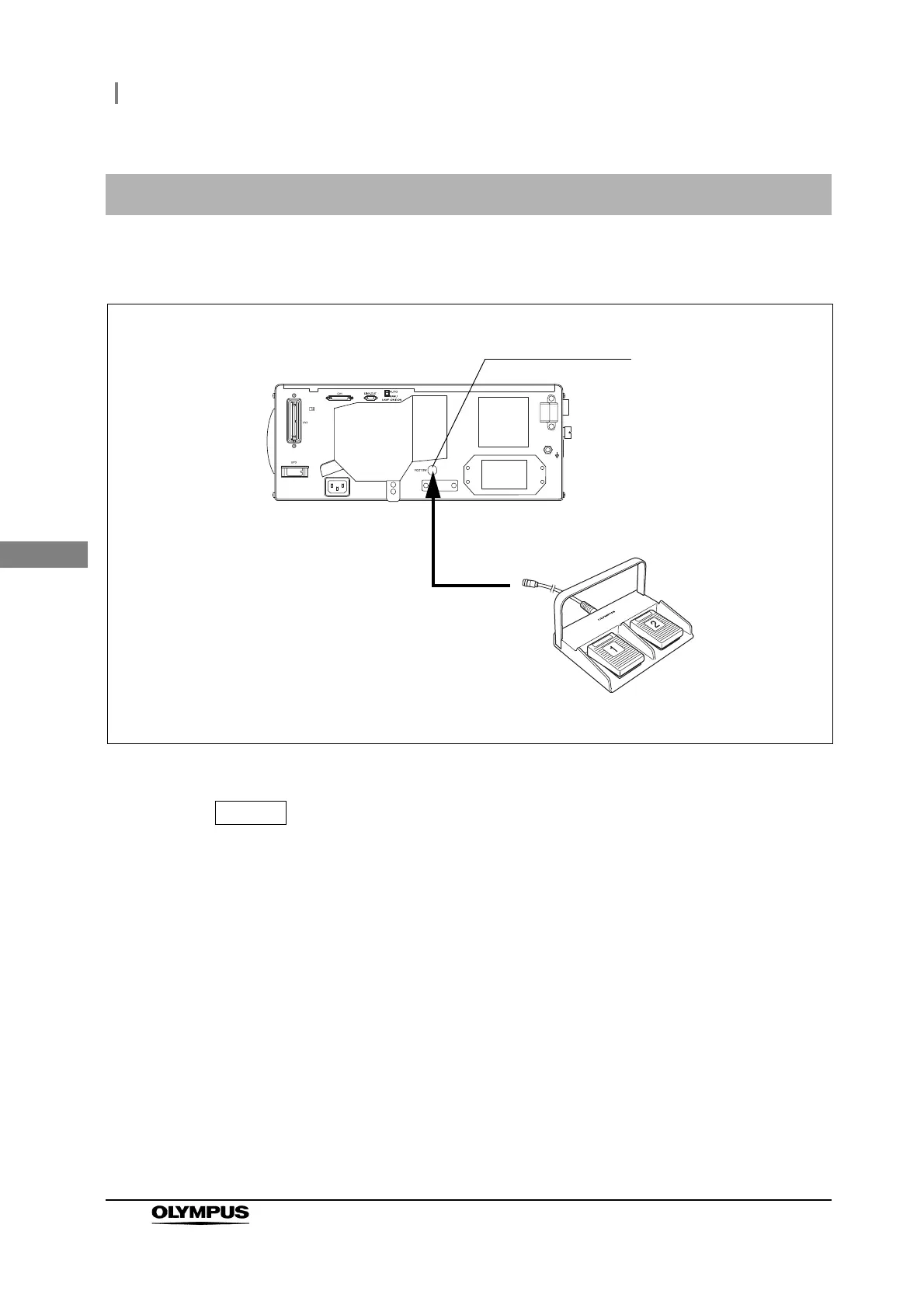

Figure 3.11
Foot switch terminal
MAJ-1391
