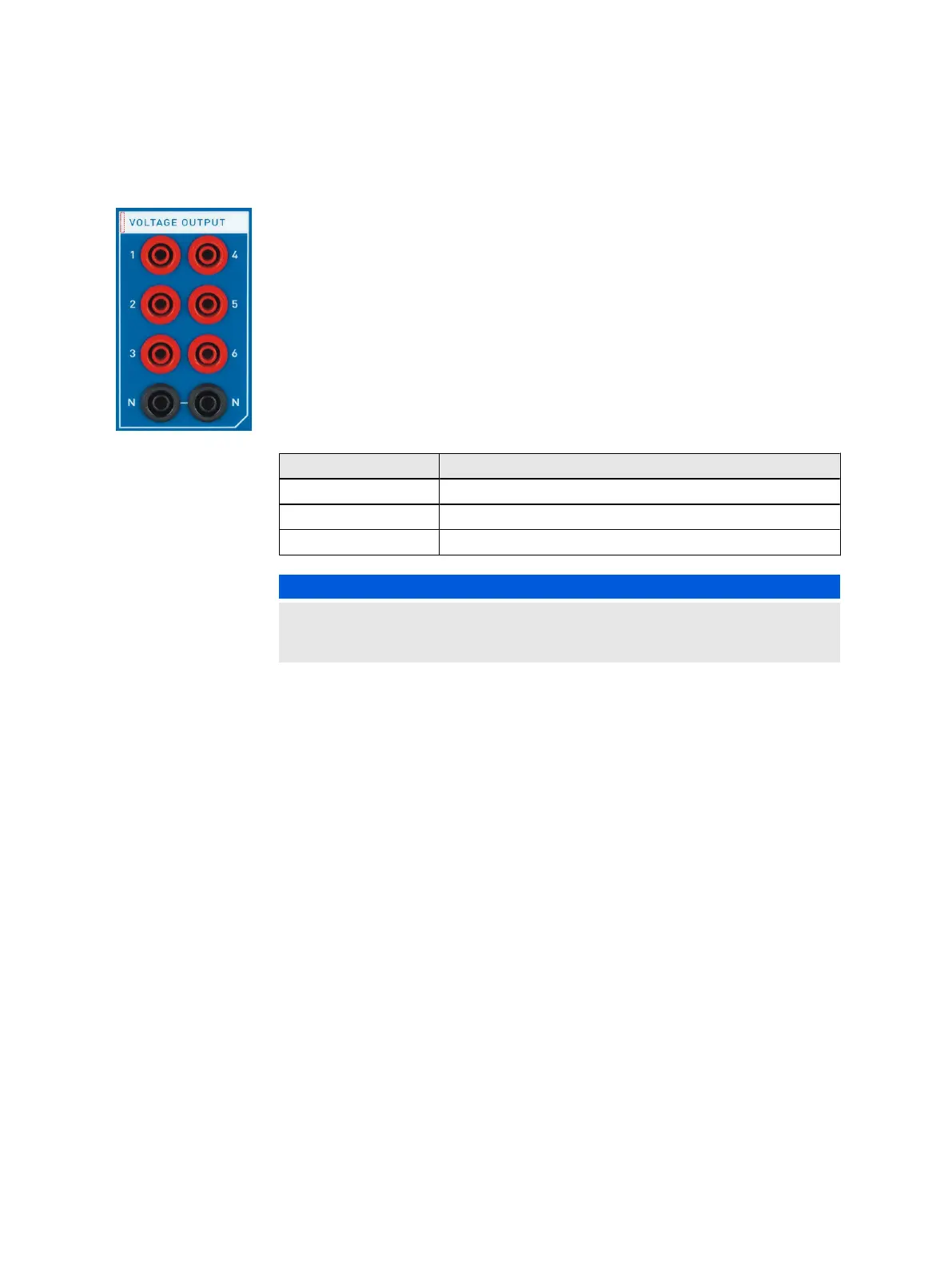

2.6 VOLTAGE OUTPUT section
Six voltage outputs for voltages up to 150 V
RMS
or 212 V
DC
.
The voltage outputs are galvanically separated from all other connections of
the CMC 430. The two black N sockets are galvanically connected to each
other.
The voltage outputs are protected against short-circuit and overload conditions.
The voltage amplifier is additionally protected against overtemperature.
An LED in the upper left corner and the internal beeper indicate the occurrence
of overload conditions and that voltage is applied at one or more voltage
outputs (beeper configuration → Beeper on page 16).
Overload conditions are also indicated in the controlling software or device.
LED state Description
Red Voltage amplifier is active
Red blinking Overload or short circuit
OFF Voltage amplifier is inactive
NOTICE
Equipment damage possible.
Infeed of voltages from external sources may damage the voltage outputs.
Technical data → Voltage outputs on page 24.
The voltage outputs 1 ... 3 are also available on the generator combination
socket → Generator combination socket on page 15.
