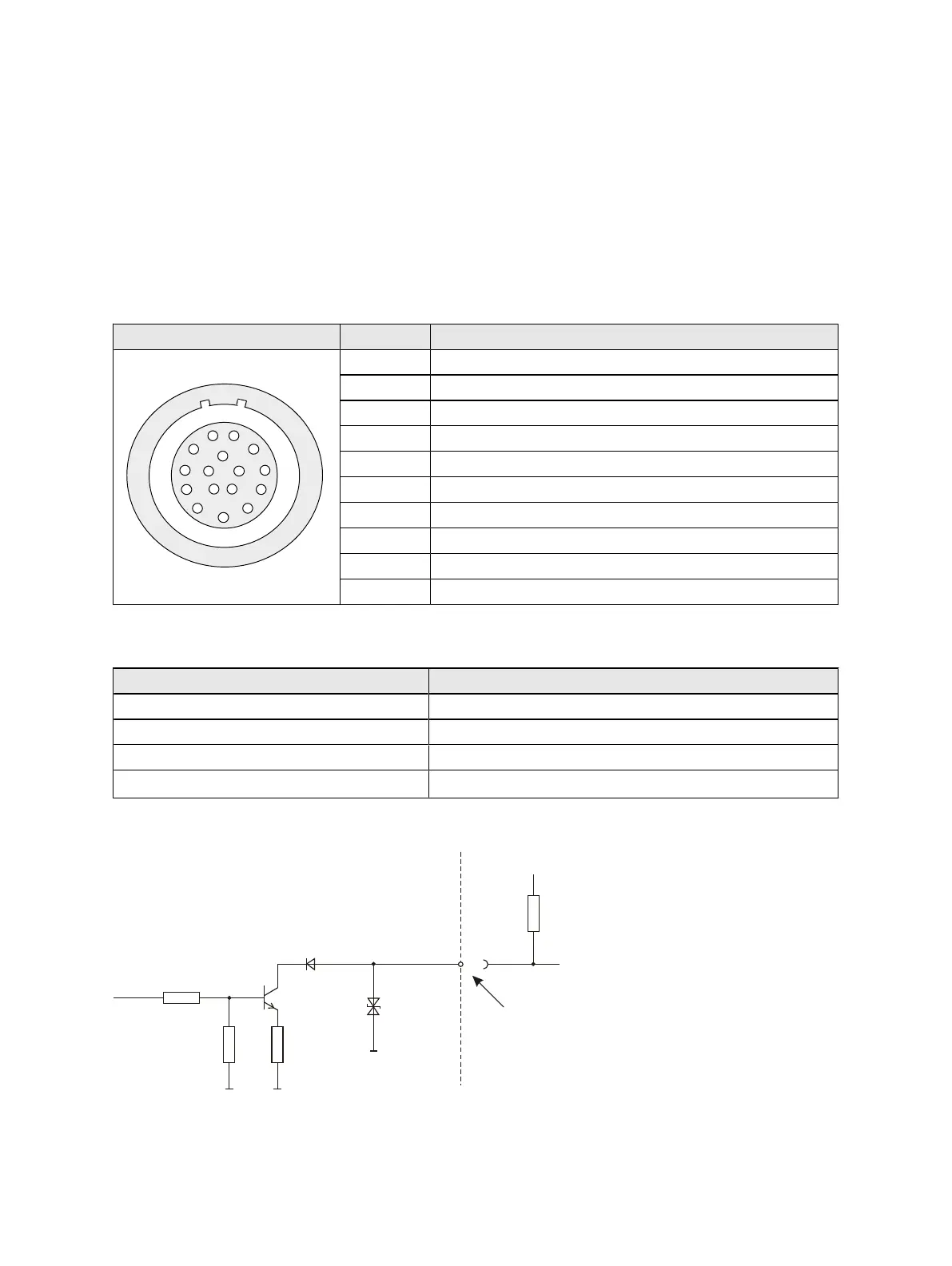

3.13 External interface
The SELV interface connector EXTERNAL INTERFACE holds four additional transistor binary outputs
(binary outputs 11 ... 14). Unlike regular relay outputs, these outputs are bounce-free (small signals)
and have minimal reaction time.
In addition, two high-frequency counter inputs for up to 100 kHz are available for the testing of energy
meters.
Pin layout Pin Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
1 Counter input 1
2 Counter input 2
3 reserved
4 GND
5 Binary output 11
6 Binary output 12
7 Binary output 13
8 Binary output 14
9 ... 16 Reserved
Housing Grounded
3.13.1 Transistor outputs (binary outputs 11 ... 14)
Characteristic Specification
Max. switching voltage 15 V
Max. current 5 mA
Min. current 100 µA
Rise time (R
pullup
= 4.7 kΩ; V
external
= 5 V) < 3 µs
22 kΩ
6.8 kΩ 47 Ω
16 V
Inside of the test set
EXTERNAL INTERFACE connector
V = 5 ... 15 V
external
R
pullup
Binary outputs 11 ... 14
CMC 430 User Manual
40
OMICRON
