3.6 Generator combination socket
The 8-pole generator combination socket is intended to simplify the connection of test objects to the
CMC 430. The voltage outputs 1 ... 3 and the current outputs 1 ... 3 are wired to the generator
combination socket.
Detailed information about the voltage and current outputs → Voltage outputs on page 24 and Current
outputs on page 19.
NOTICE
Equipment damage possible.
Infeed of voltages or currents from external sources may damage the voltage and/or current
outputs.

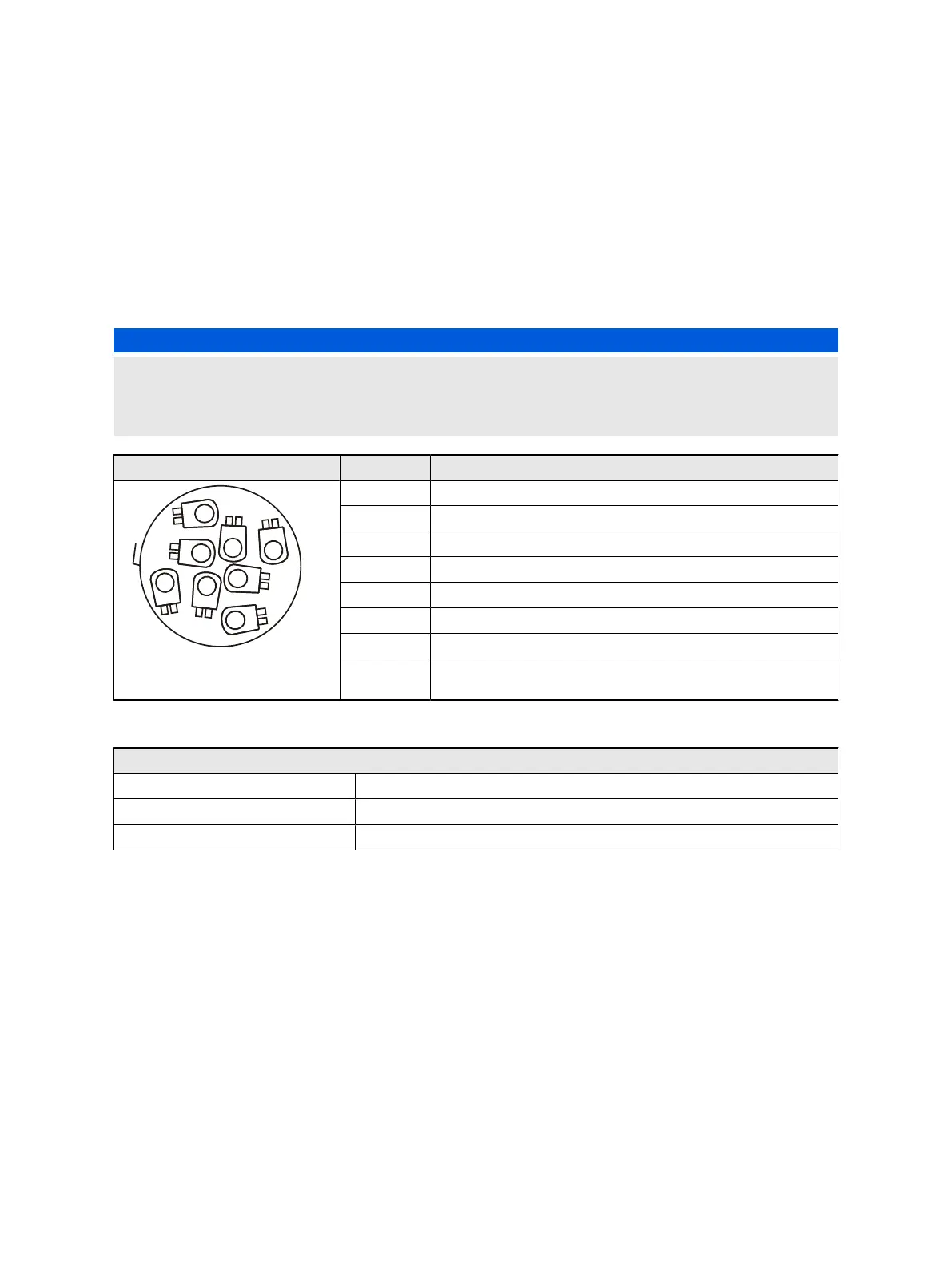

Pin layout Pin Function
4+
3-
3+
2-
2+
1-
1+
4-
View onto the cable wiring side
of the connector
1- VOLTAGE OUTPUT N
2- VOLTAGE OUTPUT 3
3- VOLTAGE OUTPUT 2
4- VOLTAGE OUTPUT 1
1+ CURRENT OUTPUT 1
2+ CURRENT OUTPUT N
3+ CURRENT OUTPUT 3
4+ CURRENT OUTPUT 2
A suitable plug for the generator combination socket can be ordered directly from OMICRON:
Suitable plug for generator combination socket
Manufacturer Neutrik (www.neutrik.com)
Type SPEAKON LINE 8-pole
Manufacturer article number NL8FC
