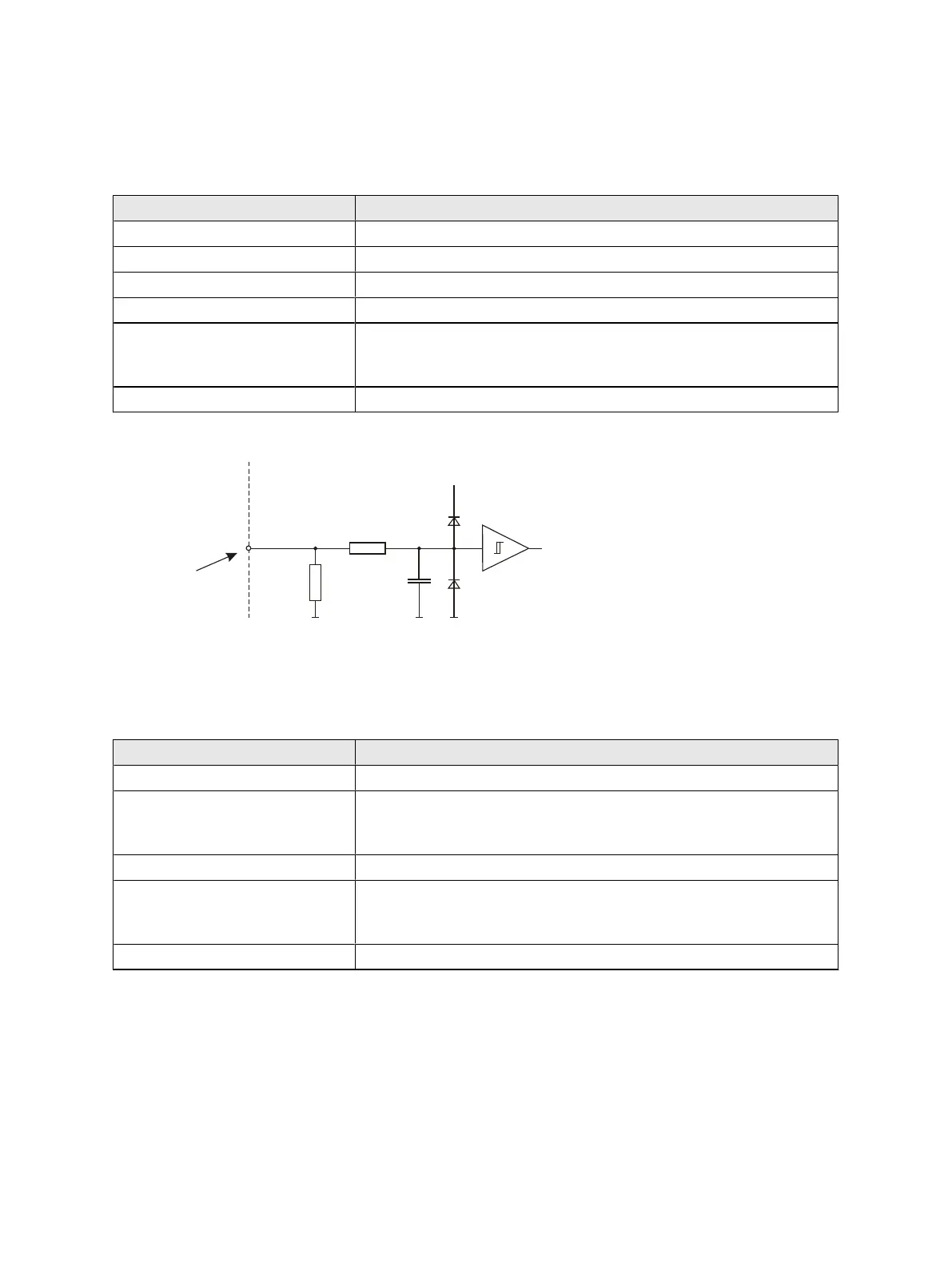

3.13.2 Counter inputs 1 and 2
Characteristic Specification
Max. input voltage ±30 V
Max. counter frequency 100 kHz
Min. pulse width 3 µs
Max. rise/fall time 1 ms
Threshold voltages
Positive
Negative
< 8 V
> 4 V
Hysteresis 2 V (typical)
100 kΩ
EXTERNAL INTERFACE connector
22 kΩ
47 pF
+15 V
Inside of the test set
Counter inputs 1 & 2
3.14 Power supply specifications
Characteristic Specification
Connection C14 connector according to IEC 60320-1
Voltage (single phase)
Nominal voltage
Operational range
100 ... 240 V
85 ... 264 V
Nominal current 10 A
Frequency
Nominal frequency
Operational range
50/60 Hz
45 ... 65 Hz
Overvoltage category III
Technical data
