4 Increasing the output power
The possible output current and output voltage of the CMC 430 can be increased by connecting
amplifiers in parallel or in series. The following output configuration examples represent a selection of
the possible configurations. For a complete list of possible configurations, please check the Hardware
Configuration of the controlling software or device.
4.1
Current outputs

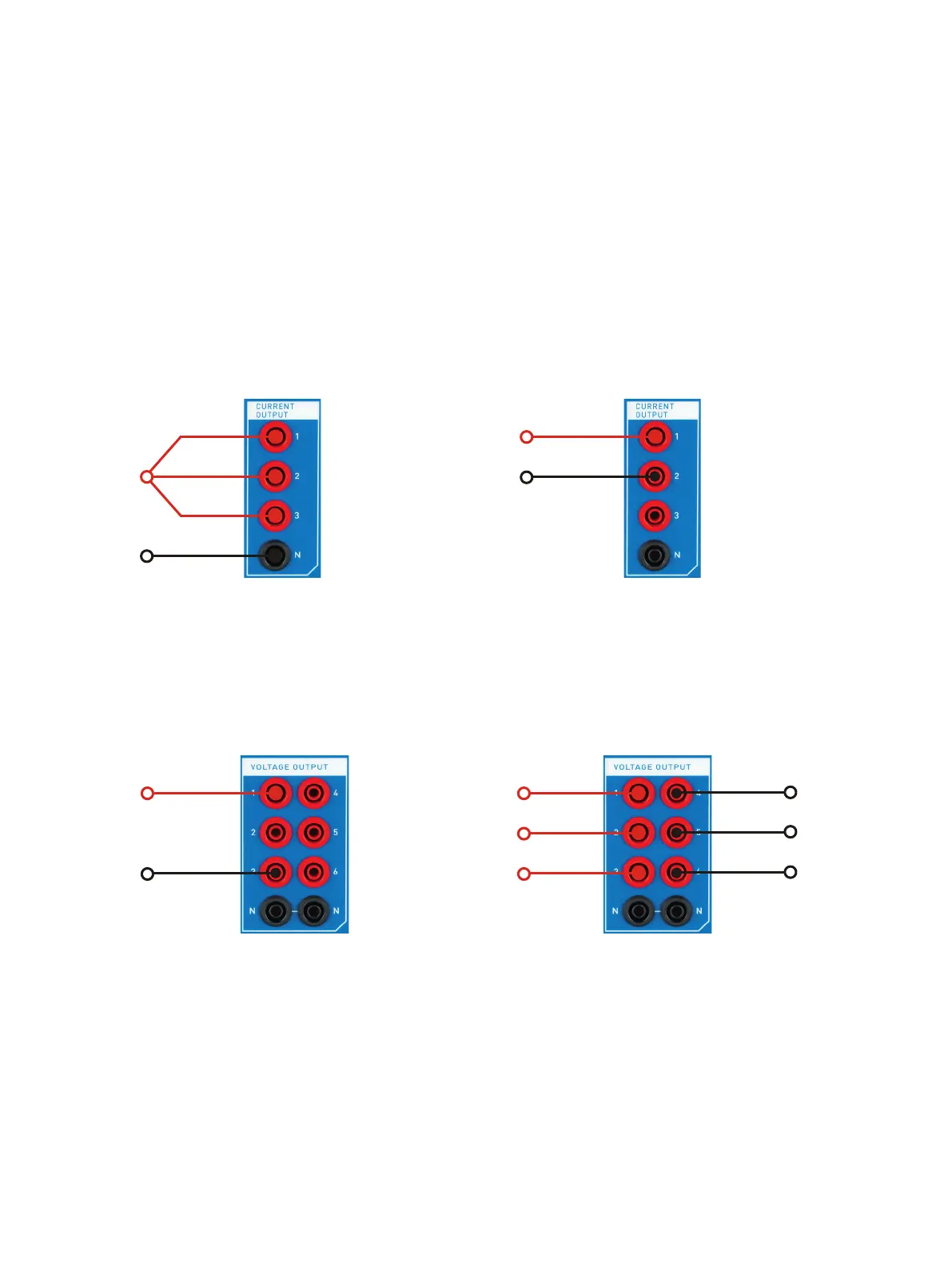

1 x 37.5 A; 150 VA @ 16 A; 12 Vrms: 1 x 12.5 A; 192 VA @ 8 A; 24 Vrms:
1'
N
1'
N
You can reach an output magnitude of up to
37.5 A (3 × 12.5 A) by connecting the three
current outputs in parallel.
By connecting two current outputs in series, you
can double the available compliance voltage.
4.2 Voltage outputs
1 x 300 V; 50 VA @ 200 V; 250 mArms: 3 x 300 V; 50 VA @ 200 V; 250 mArms:
1
N
1
N3
2
3
N2
N1
Two phases work in phase-opposition mode to
increase the output voltage.
The outputs 4 to 6 are operated in phase-
opposition to the outputs 1 to 3 to double the
possible output voltage.
Increasing the output power
OMICRON
45
