The possible accuracy depends on the quality of the synchronization signal because the
synchronization uses the zero crossings of the signal.

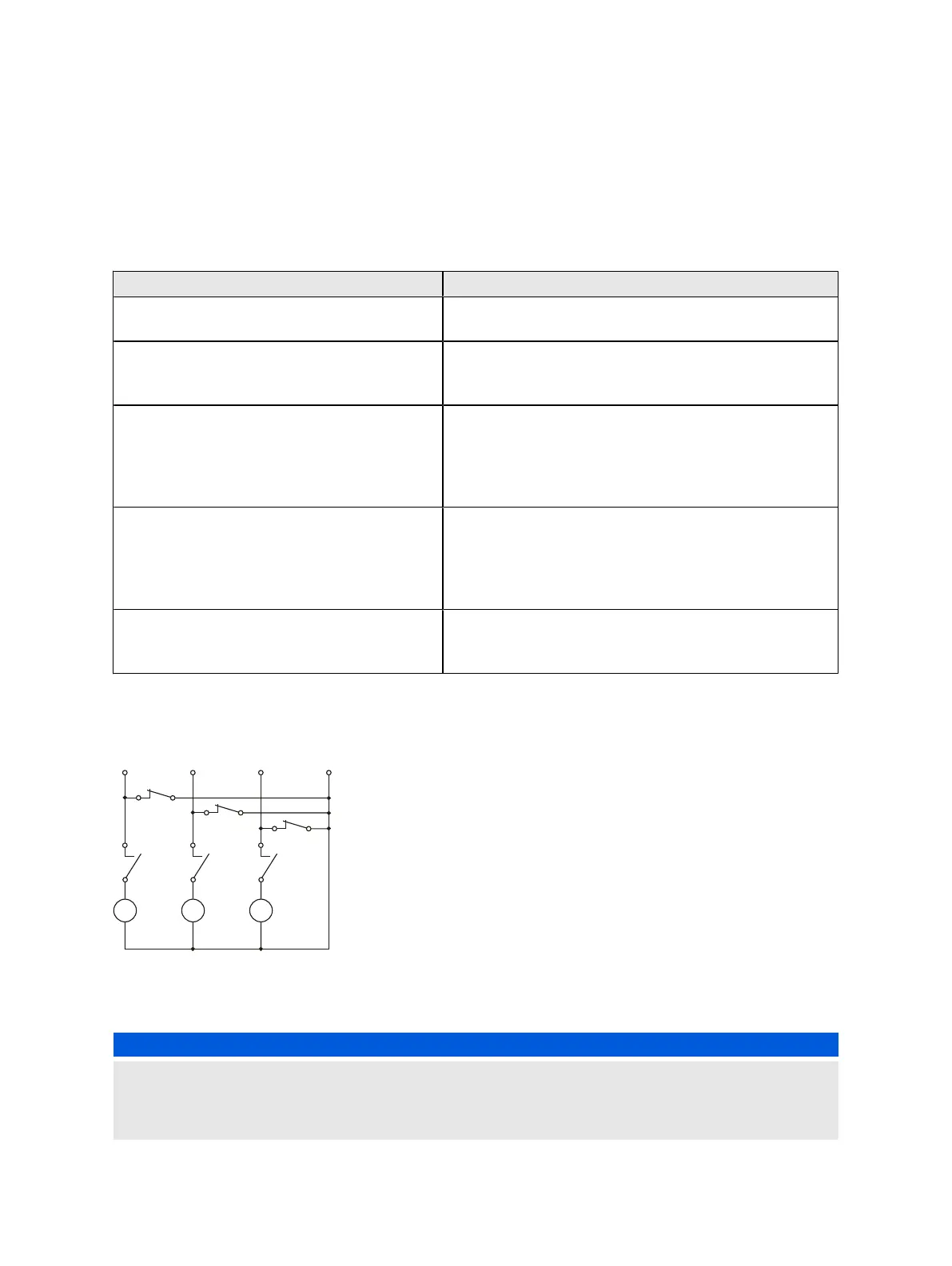

3.4 Current outputs
Characteristic Specification
Ranges Range I: 0 ... 1.25 A
Range II: 0 ... 12.5 A
Frequency range
Frequency range
Transient playback & power quality signals
0 ... 1 kHz
0 ... 3 kHz
Configurations (AC)
L-N
L-N
LLL-N (parallel)
L-L (series)
3 x 1.25 A
3 x 12.5 A
1 x 37.5 A
1 x 12.5 A
Configurations (DC)
L-N
L-N
LLL-N (parallel)
L-L (series)
3 x ±1.25 A
3 x ±12.5 A
1 x ±37.5 A
1 x ±12.5 A
Resolution per channel (DC)
1.25 A range
12.5 A range
< 70 µA
< 700 µA
3.4.1 Protection
1 2
3
N
~ ~ ~
The current outputs are protected against open-circuit and overload conditions. The current amplifier
is additionally protected against overtemperature.
NOTICE
Equipment damage possible.
Infeed of currents from external sources may damage the current outputs. Only in the non-operative
state, the current outputs are protected by short-circuit relays against external infeed.
Technical data
OMICRON
19
