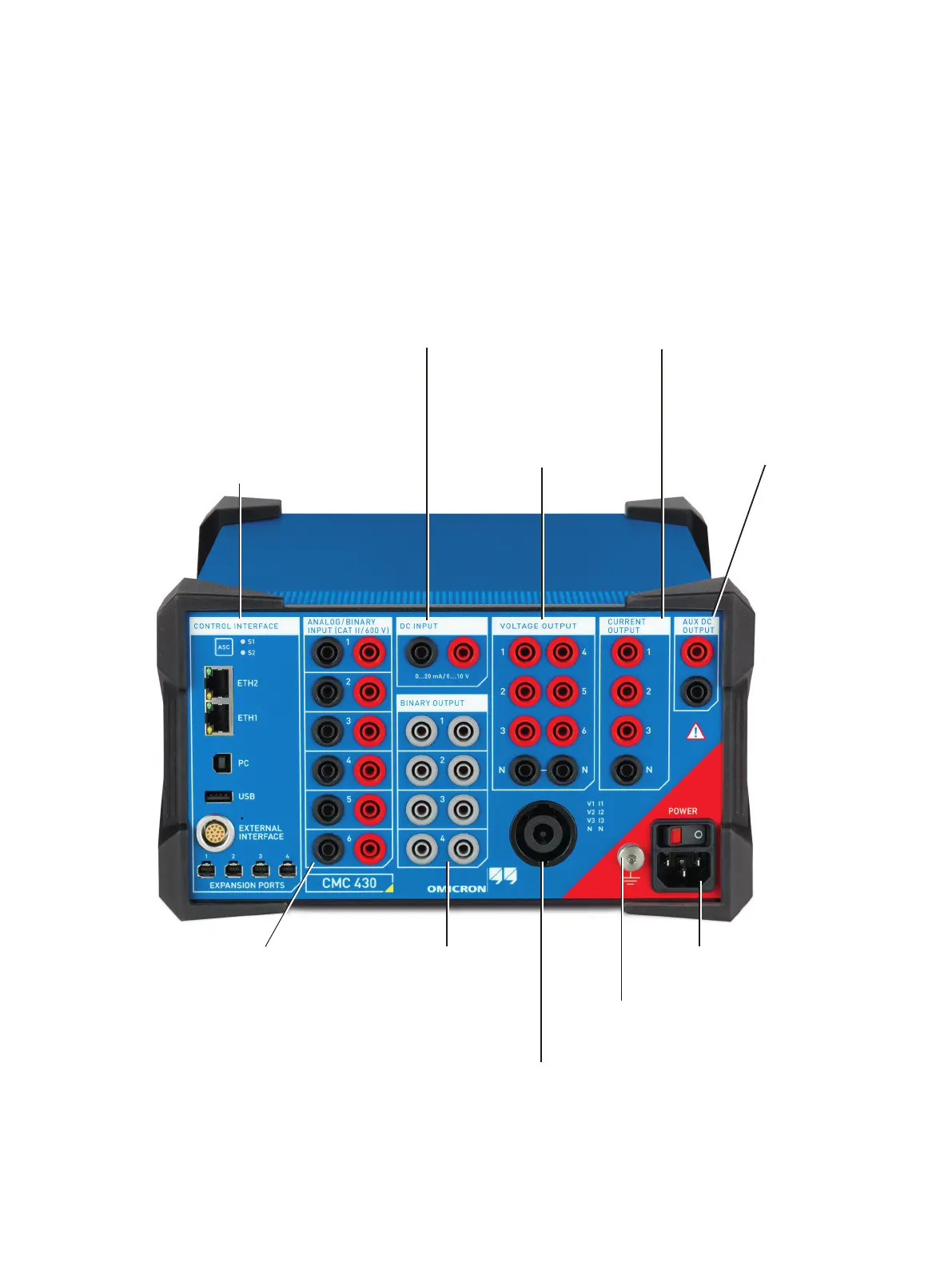

2.1 Front panel
This section provides an overview of the CMC 430 front panel elements. For detailed information
about an element → sections 2.2 to 2.11.
DC INPUT
High-accuracy analog
DC measurement input
(0 ... 20 mA or 0 ... 10 V)
VOLTAGE OUTPUT
6 x 150 V voltage outputs;
outputs 1 ... 3 are also
available on the generator
combination socket
BINARY OUTPUT
4 normally open
relay outputs
Generator combination socket
8-pole socket for current outputs 1 ... 3 and
voltage outputs 1 … 3
Power switch and
mains socket
ANALOG/BINARY INPUT
6 fully configurable and fully insulated
inputs. Configuration as binary input
or analog input is done in the
controlling software or the
controlling device
AUX DC OUTPUT
12 ... 264 V auxiliary DC
voltage supply; can be
used to supply test
objects with power
CONTROL INTERFACE
Associate button, status LEDs,
control interfaces, accessory interfaces.
All interfaces in this group are
touch-safe low voltage interfaces with
voltages < 60 V (DC)
CURRENT OUTPUT
3 x 12.5 A current outputs;
also available on the
generator combination socket
Grounding terminal
