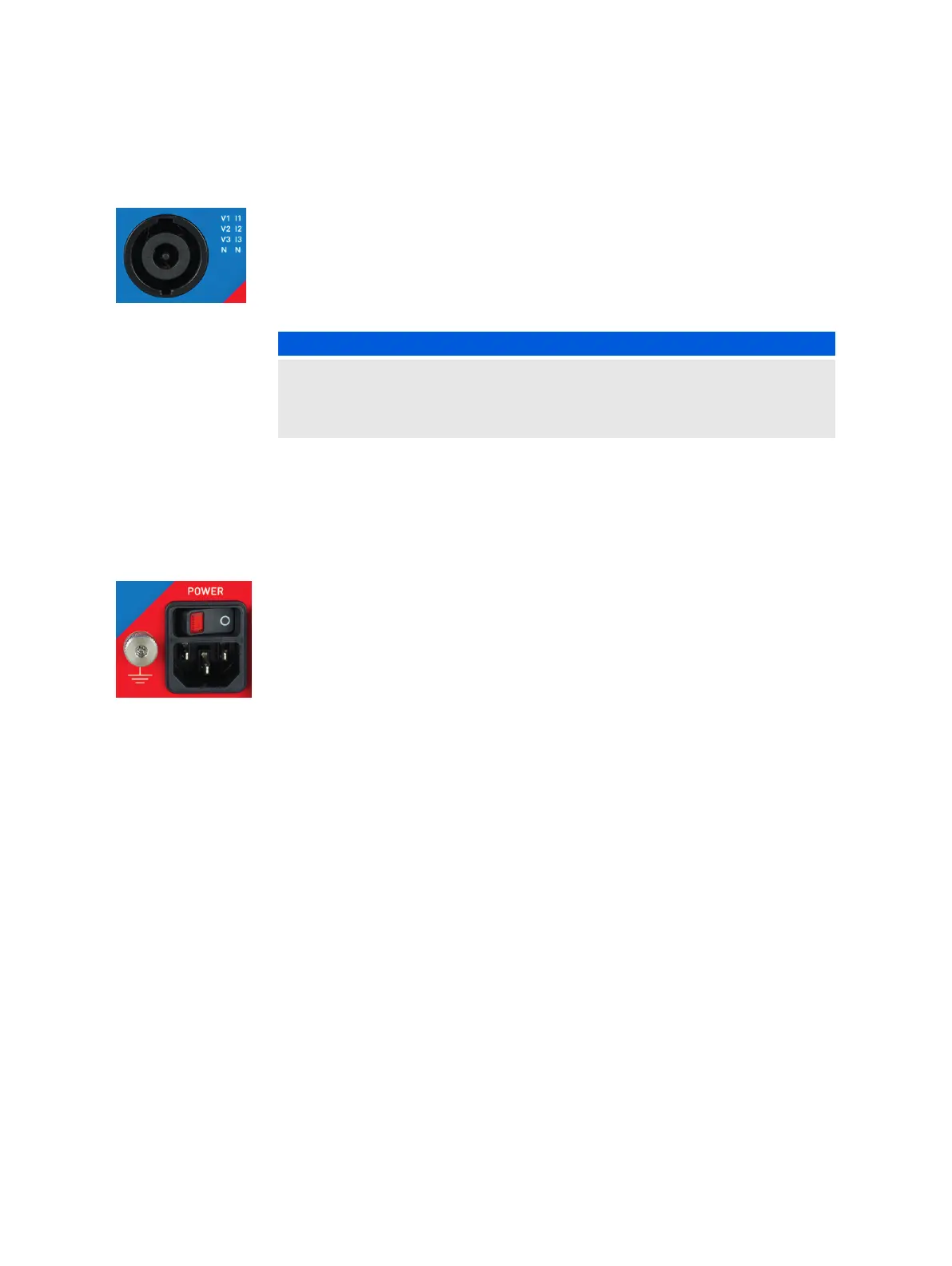

2.9 Generator combination socket
The voltage outputs 1 ... 3 and the current outputs 1 ... 3 are also wired to the
8-pole generator combination socket. This socket is intended to simplify the
connection of test objects to the CMC 430.
Please refer to the descriptions of the voltage and current outputs in sections
VOLTAGE OUTPUT on page 12 and CURRENT OUTPUT on page 13.
NOTICE
Equipment damage possible.
Infeed of voltages or currents from external sources may damage the
voltage and/or current outputs.
Technical data and pin assignment → Generator combination socket on
page 28.
2.10 Power switch, mains socket, grounding terminal
ON/OFF switch and mains socket.
Nominal voltage: 100 ... 240 V
AC
, 50/60 Hz.
Technical data → Power supply specifications on page 41.
Use the grounding terminal to ground the test object or to provide an additional
ground connection for the test set.
Device overview
OMICRON
15
