Omicron CMC 430 User Manual

Current output configurations for the slave unit in Expansion Mode
The following output configuration examples represent a selection of the possible configurations. For a
complete list of possible configurations, please check the Hardware Configuration of the controlling
software or device.

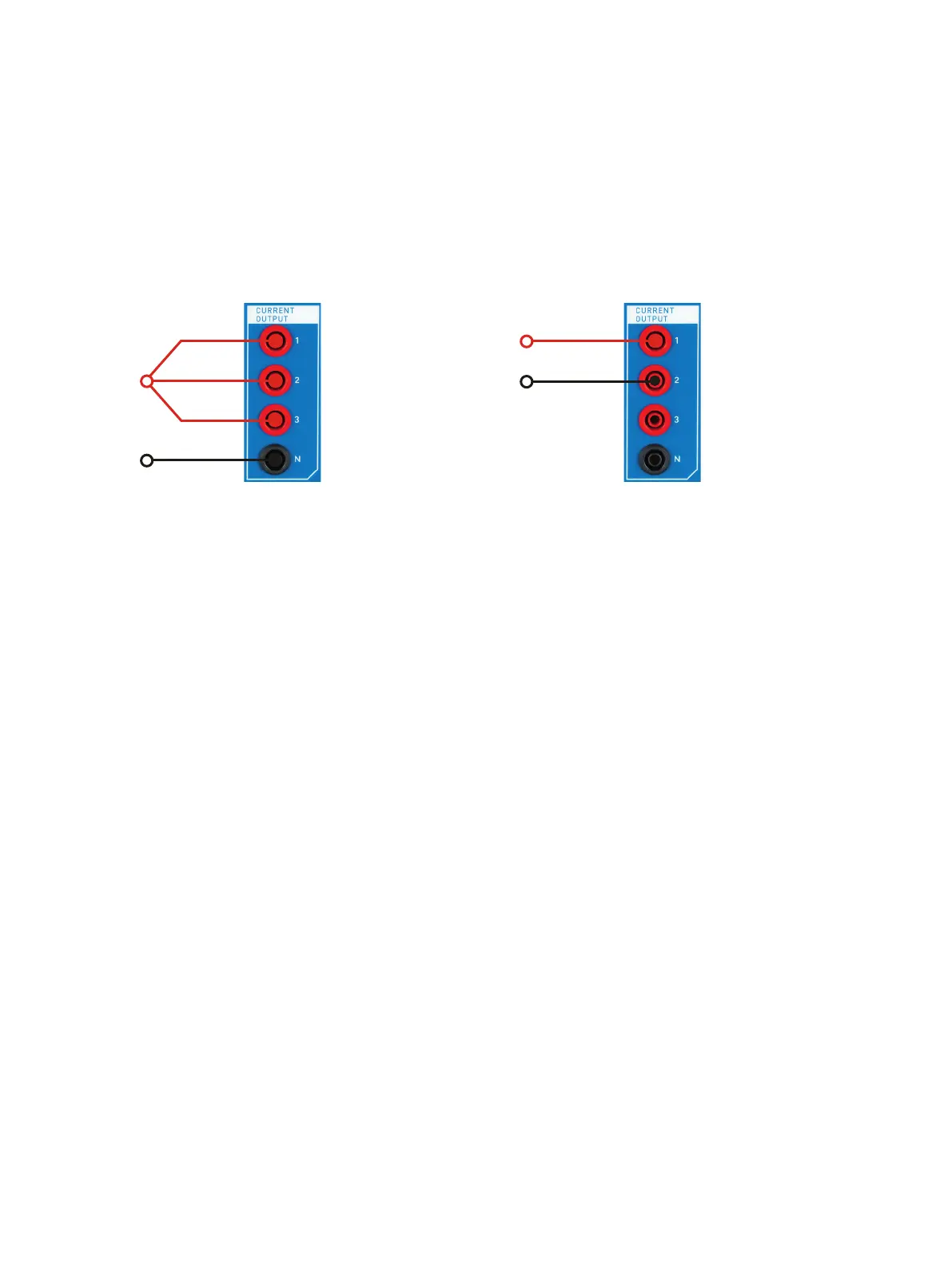

1 x 37.5 A; 150 VA @ 16 A; 12 Vrms: 1 x 12.5 A; 192 VA @ 8 A; 24 Vrms:
1'
N
1'
N
You can reach an output magnitude of up to
37.5 A (3 × 12.5 A) by connecting the three
current outputs in parallel.
By connecting two current outputs in series, you
can double the available compliance voltage.
Increasing the output power
OMICRON
47
