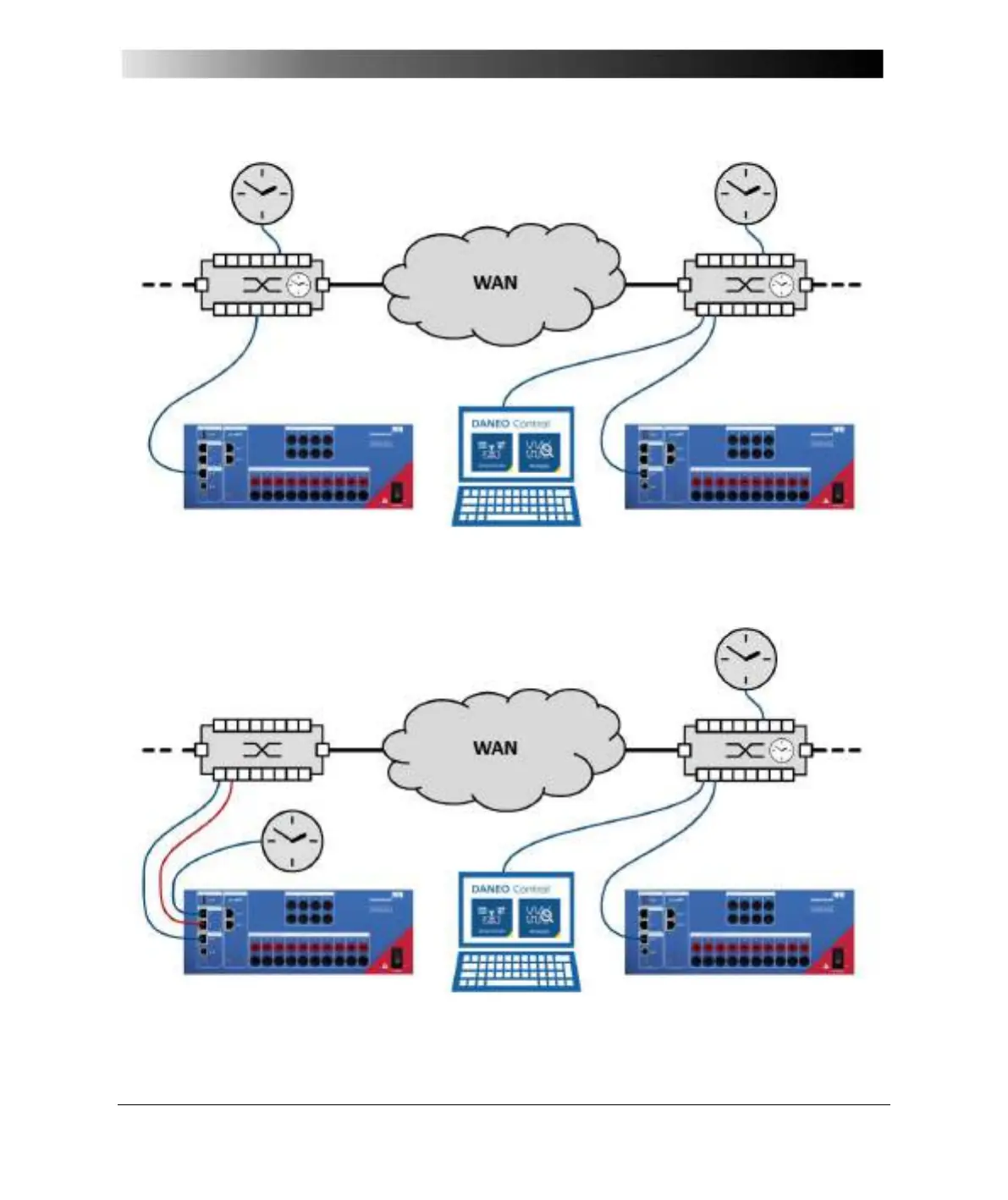

CO13 – WAN scenario with complete PTP infrastructure
Figure 15: CO13 – With a PTP infrastructure present in all involved locations, time synchronization in a WAN
scenario is most easily established. No links for capturing traffic are shown in this figure.
CO14 – WAN scenario with incomplete PTP infrastructure
Figure 16: CO14 – Even if the PTP infrastructure is not present in some locations, time synchronization can be
established locally by using one of the options shown above in CO07 to CO10. DANEO 400 on the left captures
traffic via port B. The kind of traffic obtainable depends in the port configuration at the switch (normal or mirror
port); an external tap can also be used to capture traffic from a distinct network link.
