OMICRON 29
MPD 800 measurement system
Front panel connections

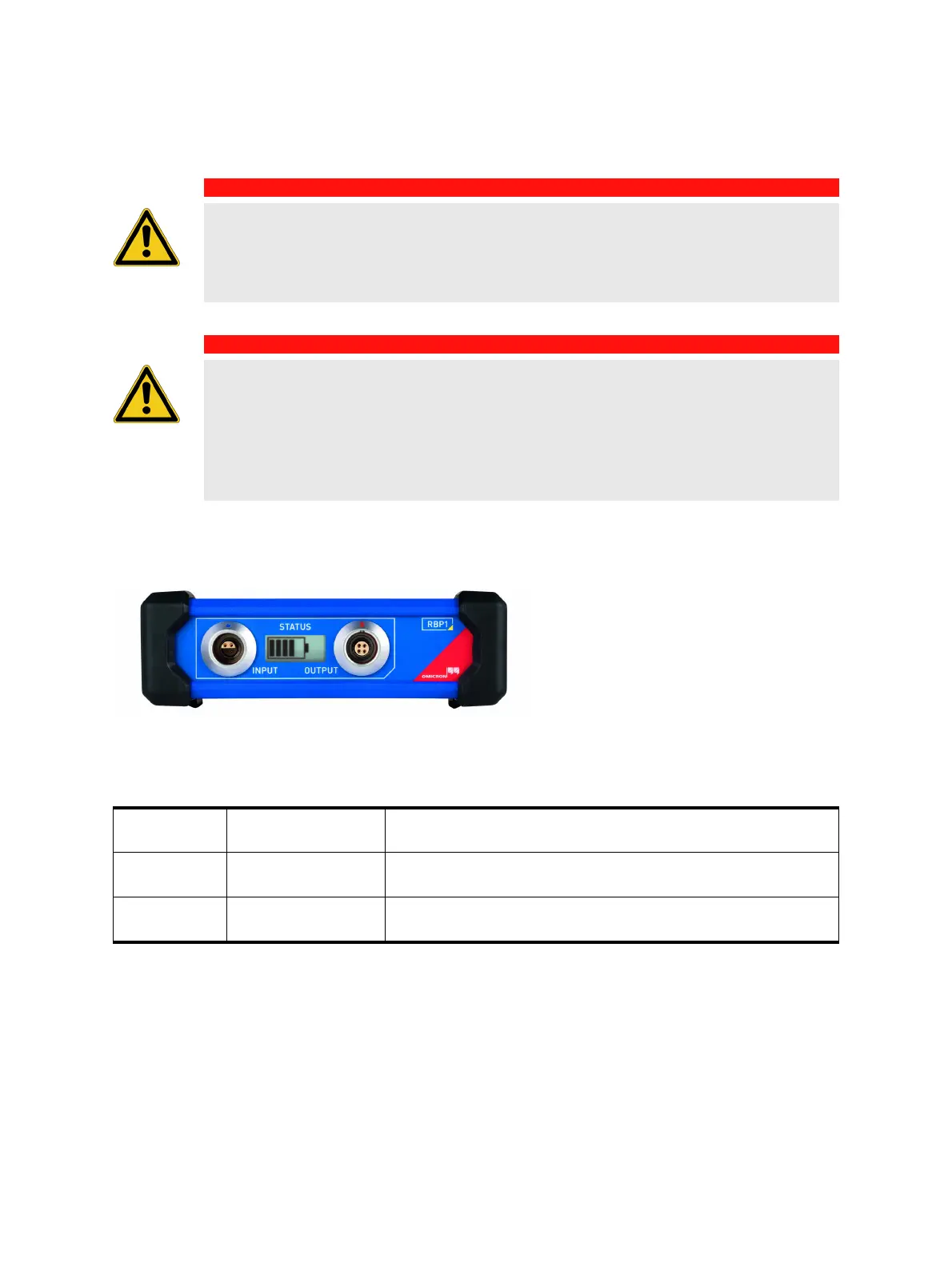

Figure 2-16: RBP1 front panel
RBP1 provides the following connectors and display:
DANGER
Death or severe injury caused by high voltage or current
► Always observe the five safety rules (see 1.2.2 "Safety rules" on page 6) before
connecting or integrating RBP1 into a system.
► Provide protection against live parts in order to avoid accidental contacts.
DANGER
Death or severe injury caused by high voltage or current
A flashover or breakthrough might invisibly damage the OMICRON 24 W DC supply or
might divert hazardous voltage to the work area which leads to a high risk of electrical
hazard.
► Do not use the OMICRON 24 W DC supply if an electrical flashover or an electrical
breakthrough of the test object cannot be eliminated.
INPUT Lemo Power supply input
Connect the OMICRON power supply or a preceding RBP1.
OUTPUT Lemo Battery output
Connect a measuring device or an adjacent RBP1.
STATUS Display RBP1 battery display
See "Indicators" on page 30.
