Omicron MPD 800 User Manual

OMICRON 43
MPD 800 measurement system

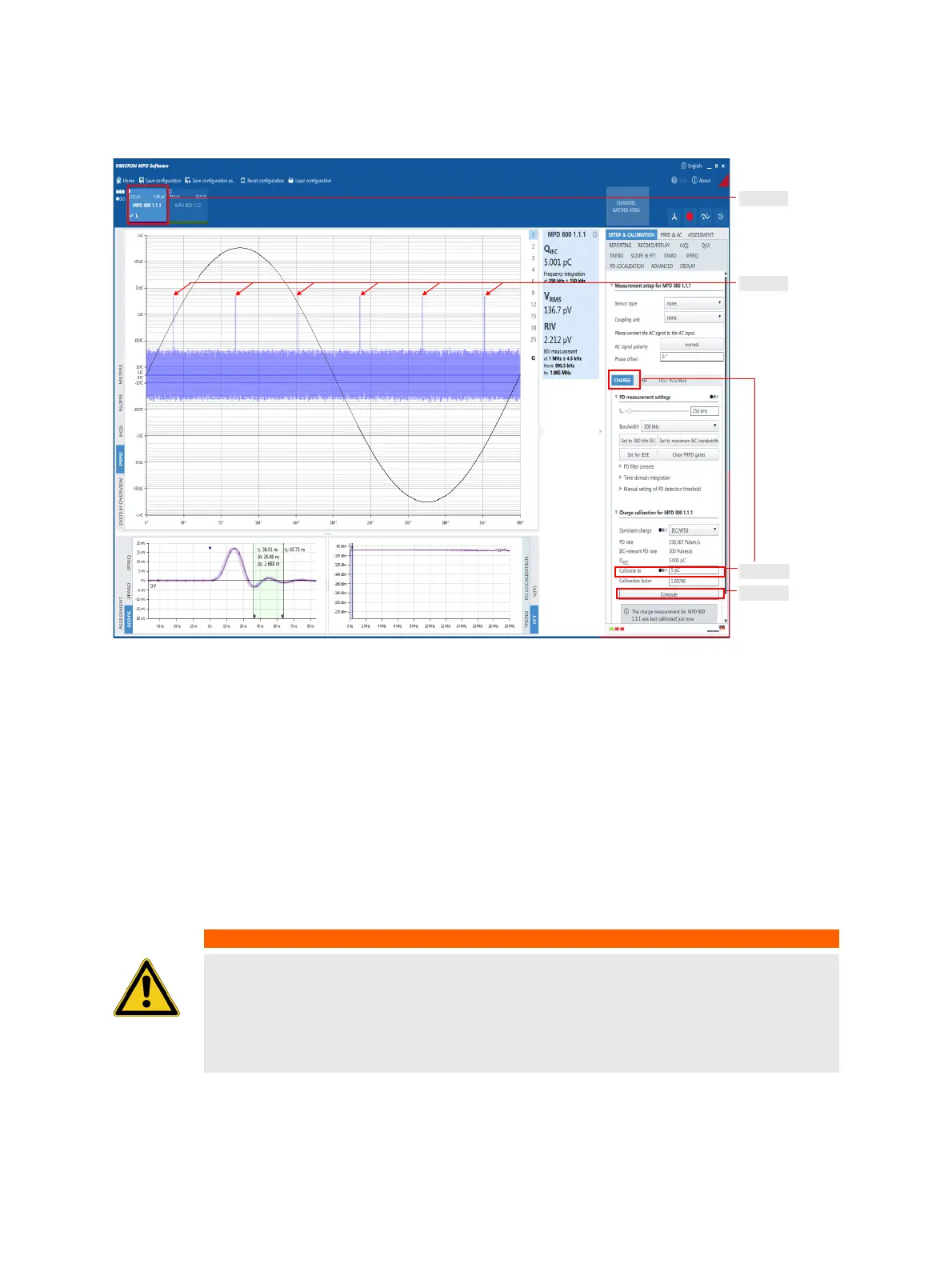

Figure 2-29: Main measurement window for charge calibration
14.Select the first channel for charge calibration.
15.Verify in the PRPD diagram that the calibrator pulses are clearly above noise and disturbances during
the calibration process.
Note: In disturbed environments and to improve the signal-to-noise ratio (SNR), re-adjust the center
frequency (f
m
).
16.In the Charge subtab, enter in the Calibrate to input box the displayed charge value of the calibrator.
17.Click the Compute button.
18.To calibrate the next channel or unit, select the desired channel (for example, the second channel
MPD 800 1.1.2) and follow the instructions from step 5. on page 40.
WARNING
Death or severe injury caused by high voltage or current possible
► Always observe the five safety rules (see 1.2.2 "Safety rules" on page 6) before
entering the high-voltage area.
► Switch off the high voltage and ground the test setup before reconnection or
disconnection of CAL 542.
Step 14.
Step 15.
Step 16.
Step 17.
