OMNI 4000/7000 Operations and Maintenance Guide – Rev F
7-15
Maintenance

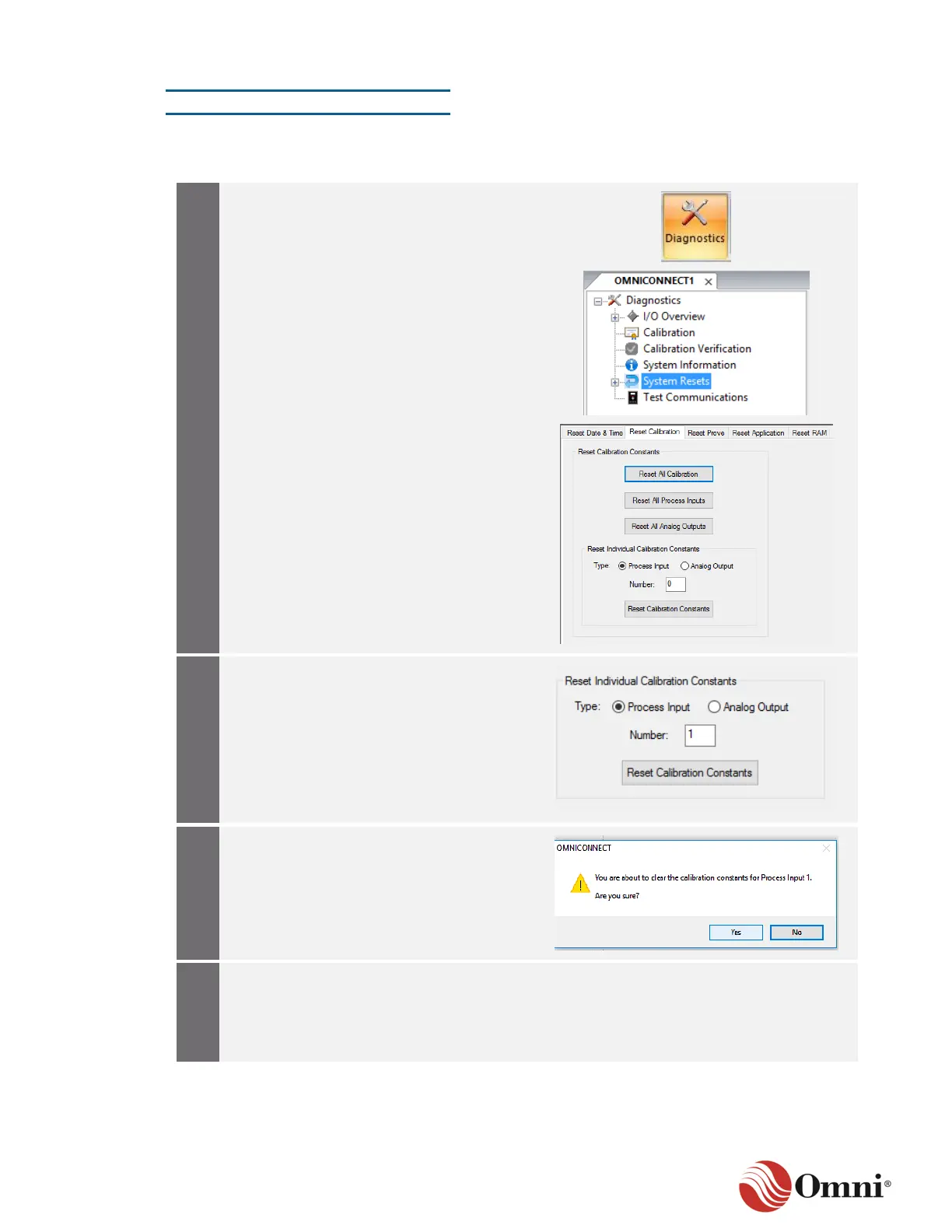

Reset Single Channel Calibration
To reset the channel if you have trouble calibrating an individual analog input or output channel,
follow these instructions:
1.
Click the Diagnostics button in the Home
ribbon to open the Diagnostics tree in the
left panel.
Select System Resets in the left panel and
then select the Reset Calibration tab in
the screens to the right.
2.
In the Reset Individual Calibration
Constants section of the Reset
Calibration screen:
a. Select the Type radio button for the
channel.
b. Input the channel number in the
Number field.
c. Click Reset Calibration Constants.
3.
At the prompt, click Yes to reset the
channel.
4.
After you reset the channel, you can
attempt to calibrate the channel again. You
can do this either through OMNICONNECT
(Section 7.2.2) or the front panel
(Section 7.3.2).
