OMNI 4000/7000 Operations and Maintenance Guide – Rev F

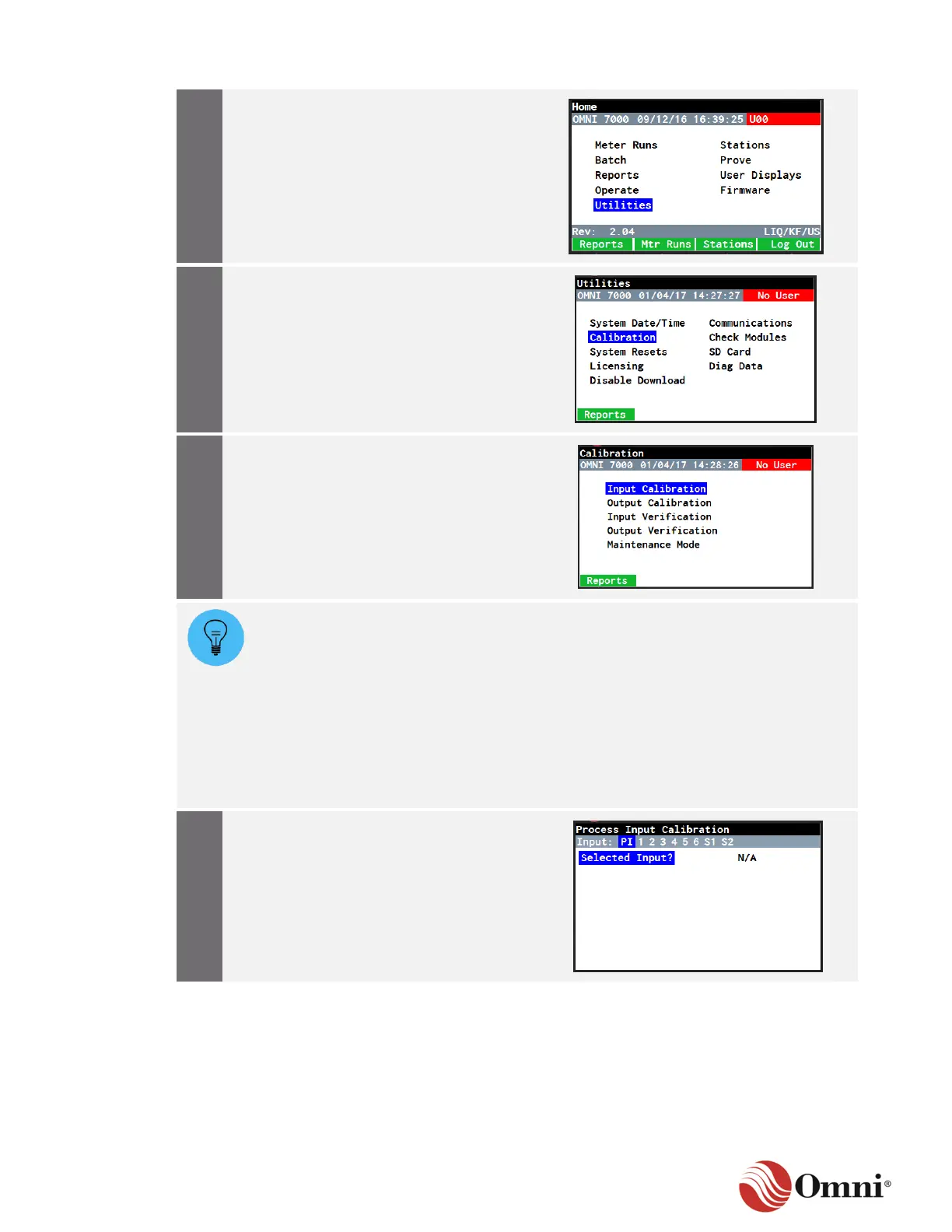

a. From the Home screen on the front
panel display, use the arrow keys to
navigate to and select Utilities.
b. Press the OK key.
a. On the Utilities screen, use the arrow
keys to navigate to the Calibration
menu selection.
b. Press OK.
With Input Calibration highlighted, press
OK.
The Process Input Calibration screen includes a horizontal Input bar at the top with
these options:
• Process Input (PI) allows you to calibrate by channel number selection
(for example, 1 through 32).
• Numbers 1 through 6 allow you to calibrate using a process input variable name
for individual Meters 1 through 6 (for example, Meter 1 Temperature or Meter 5
Density Pressure).
• S1 and S2 allow you to calibrate using a process input variable name for
Individual Station 1 and Station 2 (for example, Station 1 Density Temperature or
Station 2 Density Pressure).
Use the arrow navigation keys to select an
option on the Input bar; then press OK.
To Next Page
