4 Maintenance and inspection
4-5 Replacing the fan
BU5002R/BU3002R/BU3002RH
111
4
<BU3002R/BU3002RH>
Replacement fan: BUF3002R

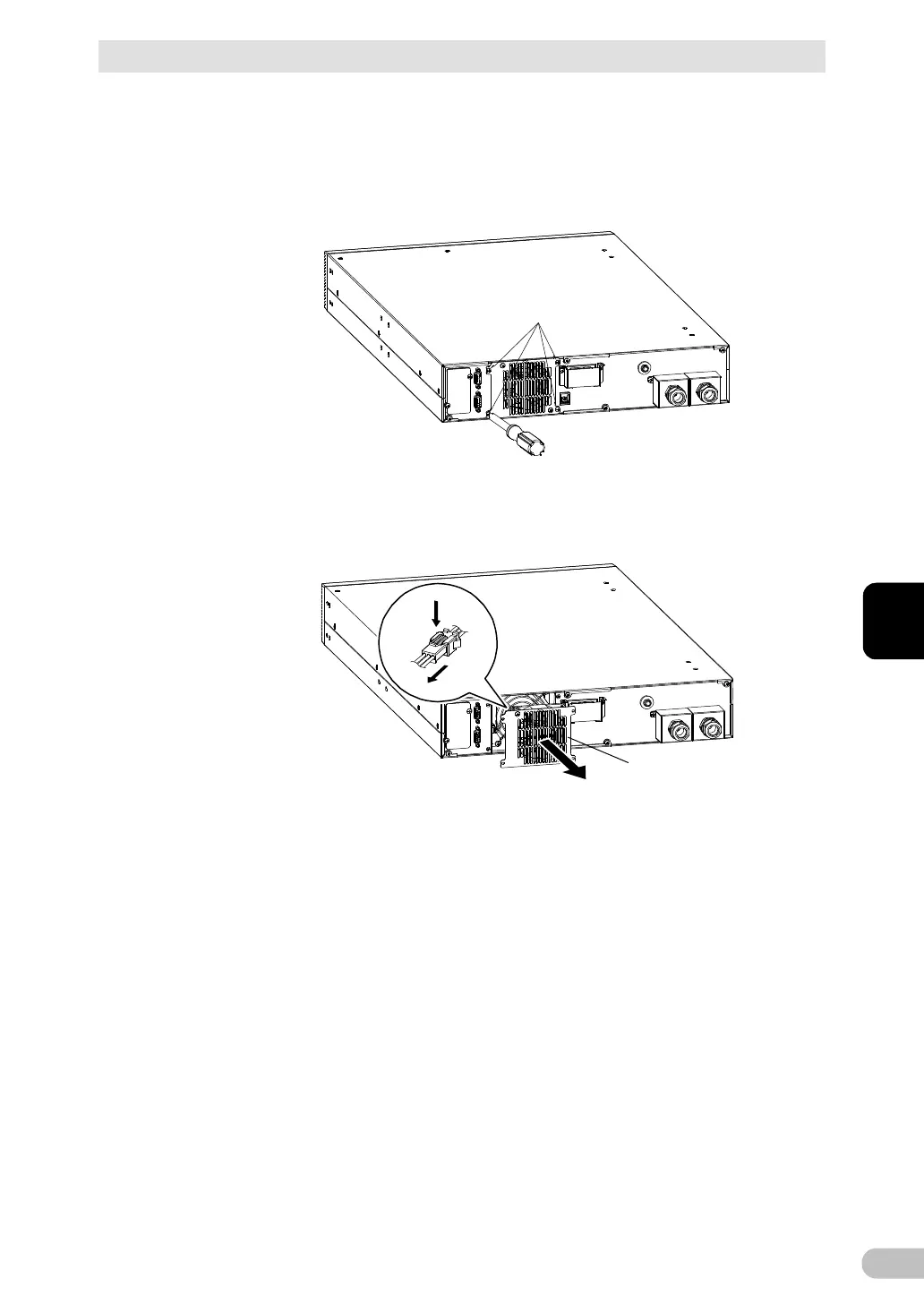

1.
Remove the 4 screws fixing the fan onto the back of the UPS unit using a Phillips
screwdriver.
Remove the four screws.
2.
Pull the fan to the front in order to take it out ().
While pressing the tab of the connector to which the fan is connected (), pull out
the connector. ()
Fan



