2 Installation and connection
2-2 Installation
BU5002R/BU3002R/BU3002RH
36
3.

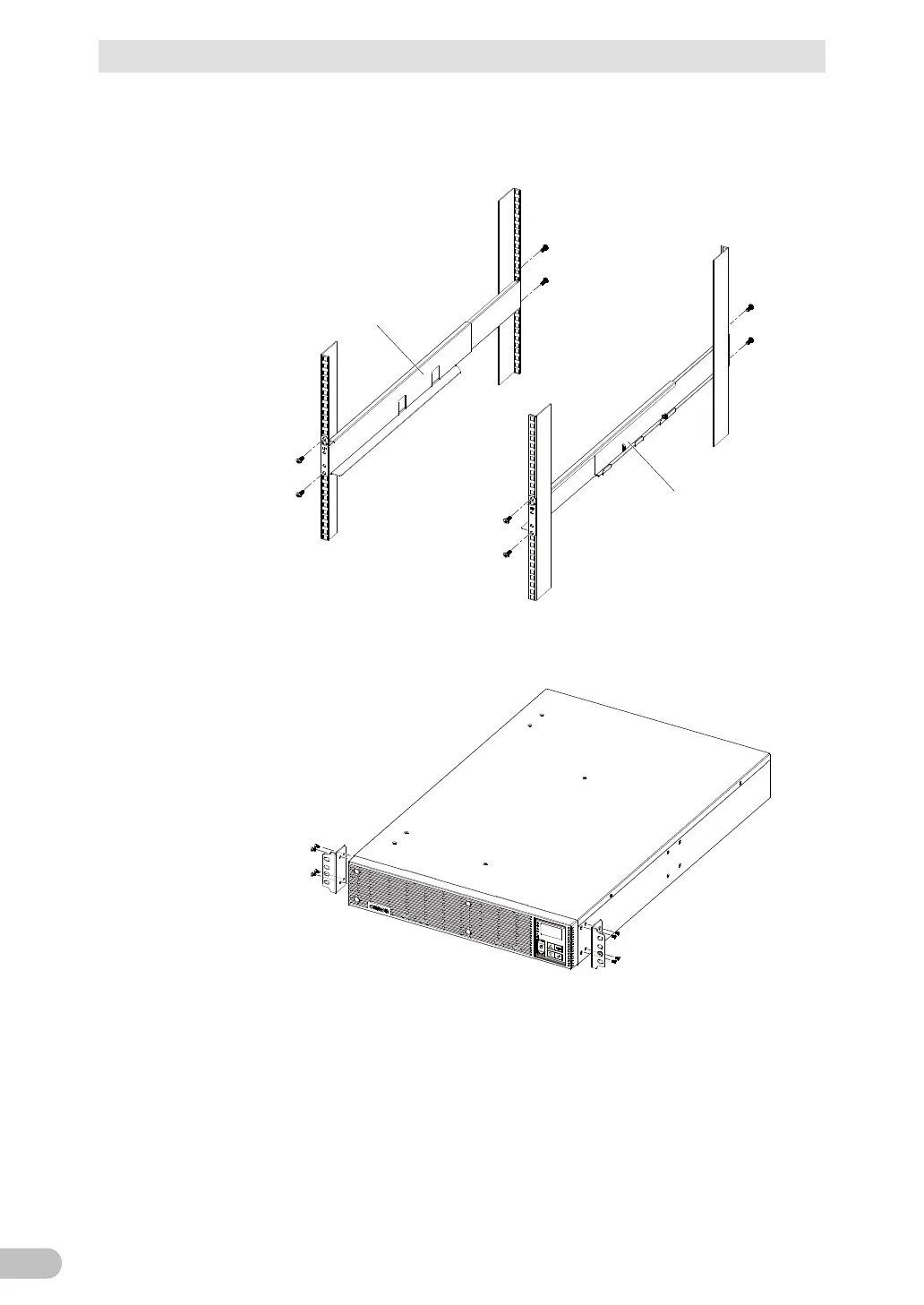

Fix the support angle (L) and support angle (R) onto the server rack using
provided 8 fixing screws for EIA/JIS rack (M5). ()




Support angle (L)
Support angle (R)
4.
Securely fix the ear brackets on the right and left side faces of the UPS using the
provided 8 ear bracket mounting flat-head screws (4 pcs x 2). ()


