2 Installation and connection
2-2 Installation
BU5002R/BU3002R/BU3002RH
42
3.

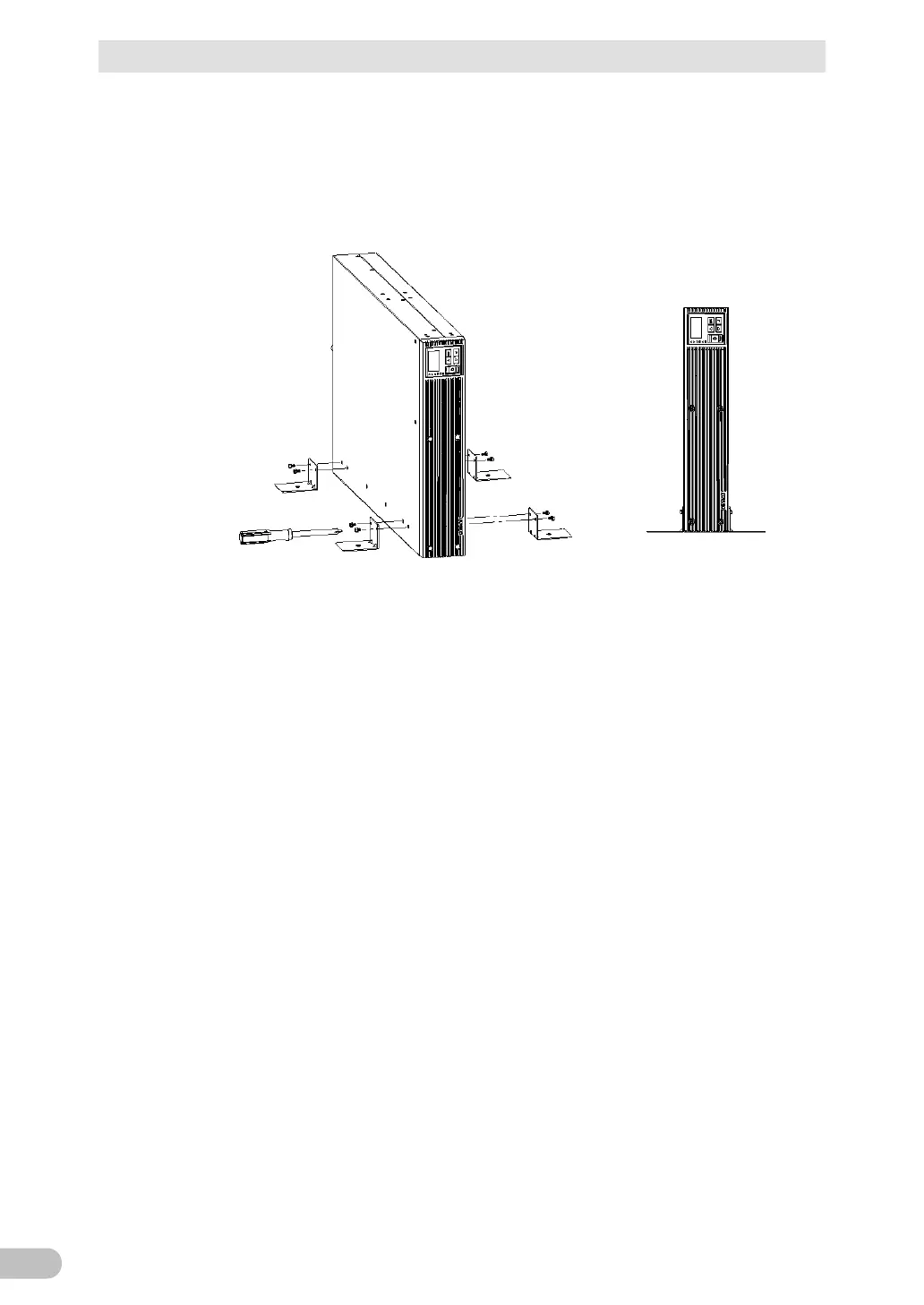

Install the stands for vertical layout (4 in total) using the provided 8 screws at 2
positions on the right and left side faces. (See the figure below)
Also be sure to fix the stands for vertical layout to the floor surface with bolts.
The hole diameter for fixing the stands for vertical layout to the floor surface is 8
mm. The bolts are to be provided by the customer.
4.
After fixing, install the battery. See “4-4 Replacing the battery” for the installation
procedure.
