2 Installation and connection
2-3 Connecting the equipment
BU5002R/BU3002R/BU3002RH
45
2
1.

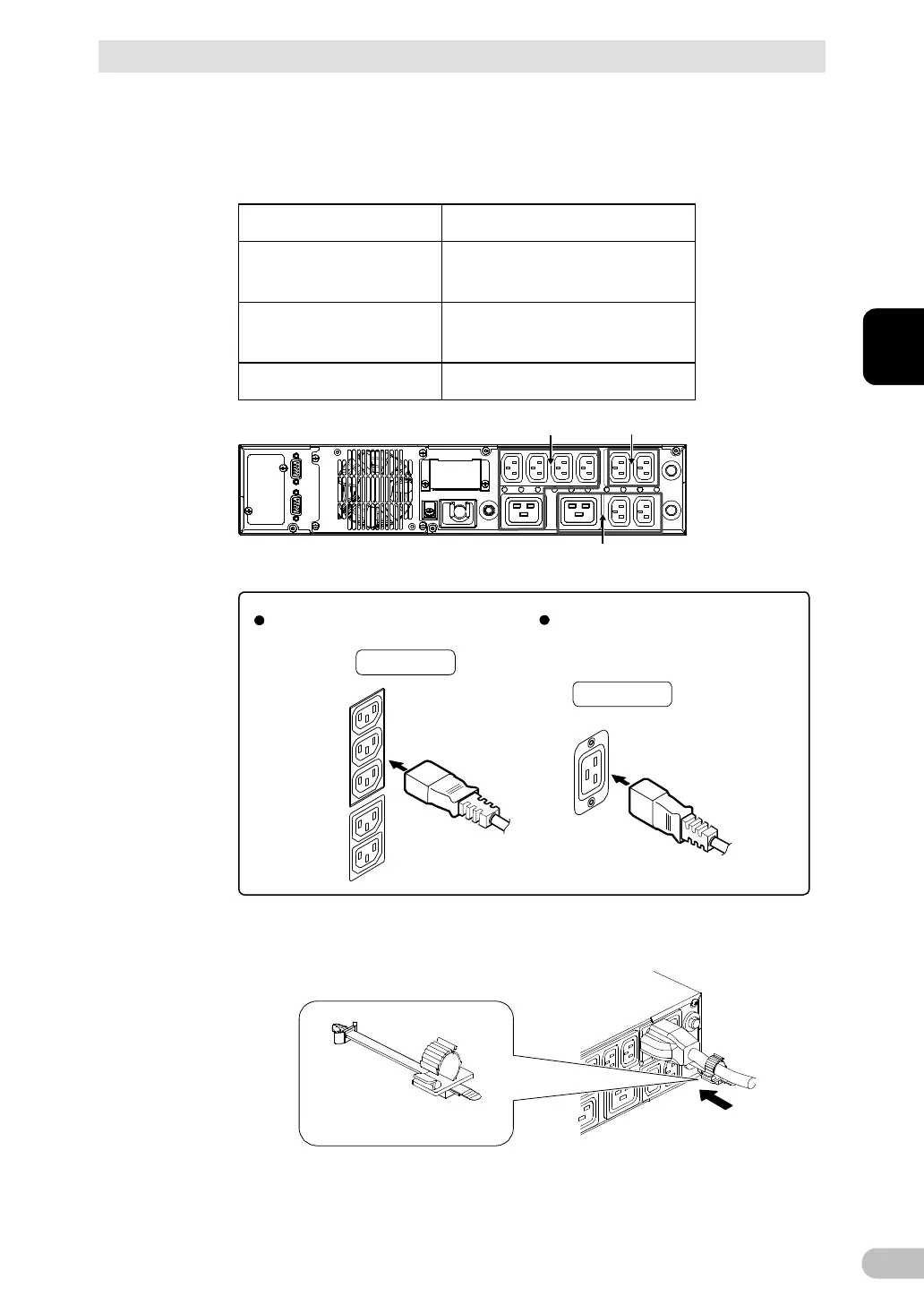

Connect devices you want to back up to the AC output receptacles of the UPS.
BU3002R (Rated value of output capacity: Max. 3000 VA/2700 W)
“AC output” group
Output receptacle
Group A
IEC60320 C-19: 1
IEC60320 C-13: 4
Group B
IEC60320 C-19: 1
IEC60320 C-13: 2
Group C
IEC60320 C-13: 2
Group B
Group CGroup A
Plug of a device to connect
Connect it directly.
Plug of a device to connect
Connect it directly.
Procedure for connection to power supply
output receptacle (IEC60320 C13)
Procedure for connection to power supply
output receptacle (IEC60320 C19)
The BUX3002RP (option) is available for the BU3002R as a clamp for preventing
pullout of plugs of connected devices.
BUX3002RP
