Chapter3 Mounting
F3SJ-B
User’s Manual
Wiring/Installation

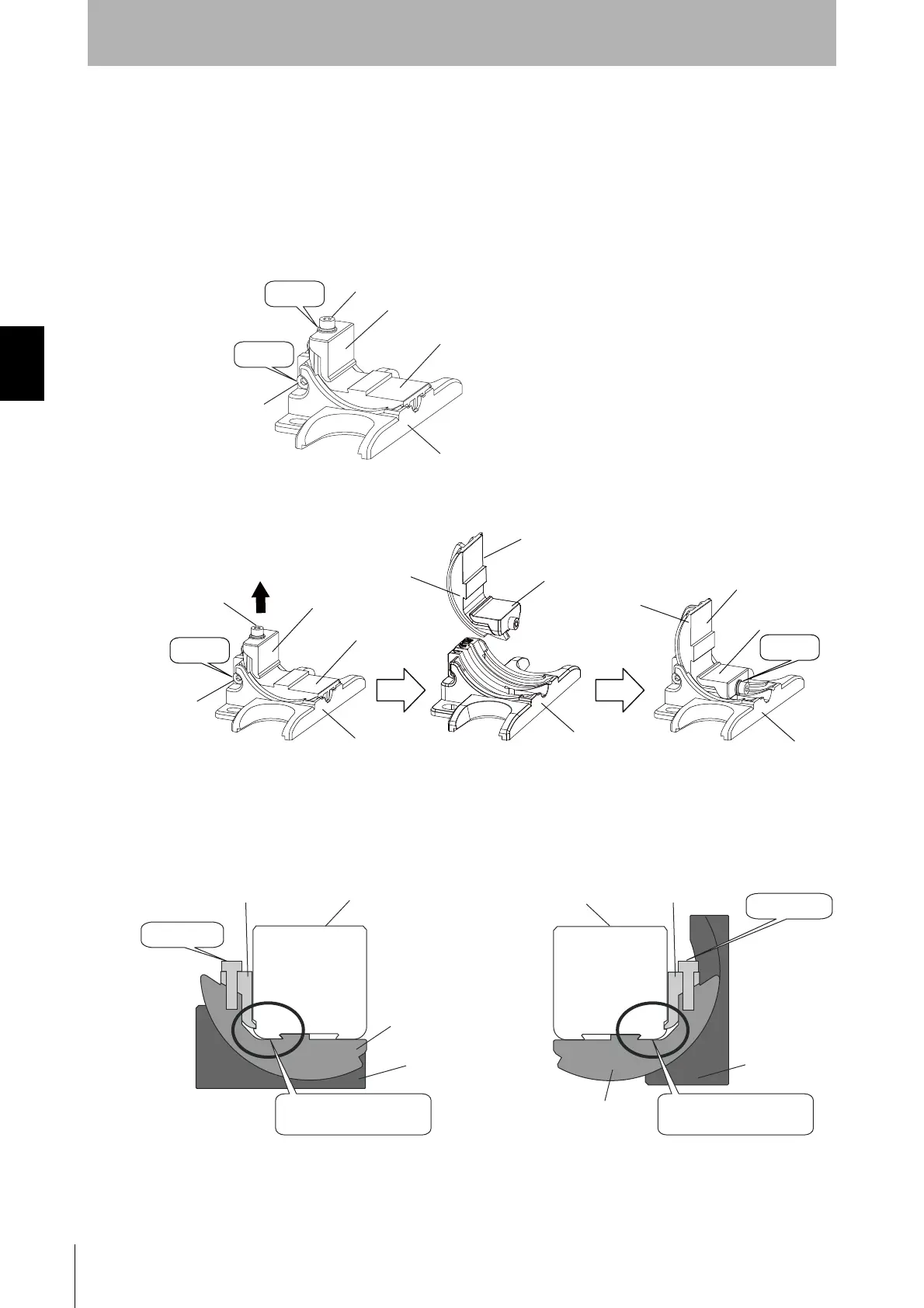

1. Loosen the hexagon socket head cap screw (M3 x 18) of the intermediate bracket (3) and the hexagon
socket head cap screw (M3 x 12) of the intermediate bracket (1) to be able to attach the bracket to the
sensor case. (Figure 24 and 25)
The intermediate bracket has been assembled for backside mounting.
To use it for side mounting, remove the intermediate bracket (2) from the intermediate bracket (3) and
change the direction of the bracket as shown in Fig.25.
2. Mount the Intermediate Bracket to the case, and lightly tighten the hexagon socket head cap screw
(M3 x 12) of Intermediate Bracket (1). (Figure 26)
Intermediate Bracket (1)
Hexagon socket head
cap screw (M3 x 12)
Hexagon socket head
cap screw (M3 x 18)
Loosen
Intermediate Bracket (2)
Intermediate Bracket (3)
Loosen
Backside mounting
Figure 24
Loosen
Hexagon socket head
cap screw (M3 x 18)
Intermediate Bracket (1)
Intermediate Bracket (1)
Intermediate Bracket (2)
Intermediate
Bracket (2)
Intermediate Bracket (3)
Intermediate
Bracket (1)
Intermediate Bracket (2)
Attach the intermediate
mounting bracket (2) to (3).
Turn the intermediate mounting bracket (2) so that
the intermediate bracket (1) should be the bottom.
Detach the intermediate
mounting bracket (2) from (3).
Intermediate Bracket (3)
Intermediate Bracket (3)
Loosen
Side mounting
Hexagon socket head
cap screw (M3 x 12)
Figure 25
Intermediate Bracket (1) Intermediate Bracket (1)
Tighten lightly
Intermediate
Bracket (2)
Intermediate Bracket (2)
Intermediate
Bracket (3)
Intermediate
Bracket (3)
Sensor is secured by
Intermediate Brackets.
Sensor is secured by
Intermediate Brackets.
Side mountingBackside mounting
Optical surface
Optical surface
Tighten lightly
Figure 26
