Chapter3 Mounting
F3SJ-B
User’s Manual
Wiring/Installation

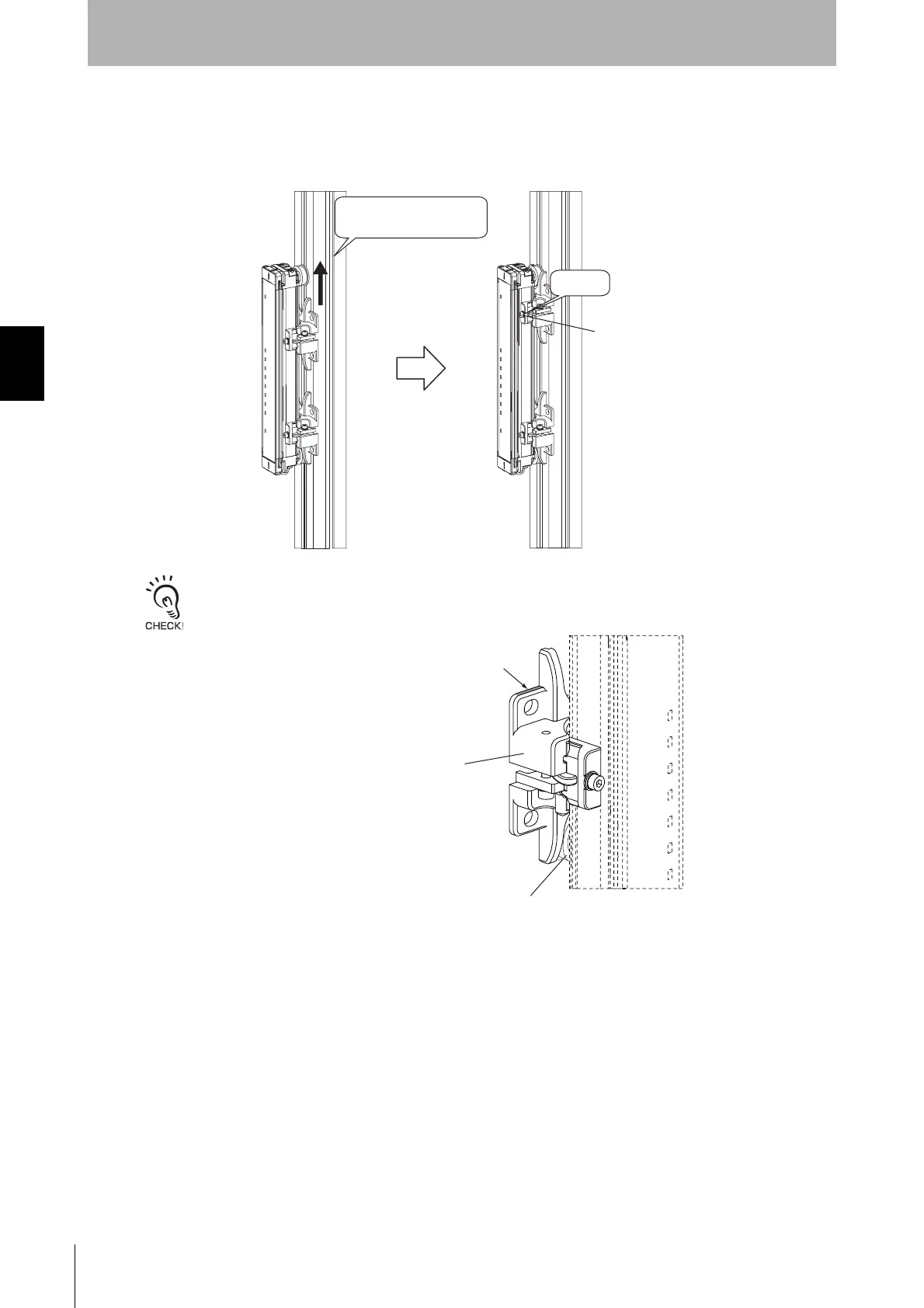

5. Slide the Intermediate Bracket mounted at the top of the sensor to insert it into the One-touch M6
Bracket (or One-touch M8 Bracket) mounted to the aluminum profile, and then tighten the hexagon
socket head cap screws (M3 x 12) on Intermediate Bracket (1) to secure the sensor. (Figure 29)
Tighten the hexagon socket head cap screws (M3 x 12) with the torque at 0.54 N•m (recommended).
Tap the Intermediate Bracket lightly with plastic hammer to the One-touch M6 Bracket (or One-touch M8 Bracket) to
maintain stable mounting state.
Do not tap areas other than indicated in the figure.
Slide the Intermediate
Bracket and insert it.
Tighten
securely
Hexagon socket head
cap screw (M3 x 12)
Figure 29
Tapping position
Intermediate Bracket
One-touch M6 Bracket
(One-touch M8 Bracket)
