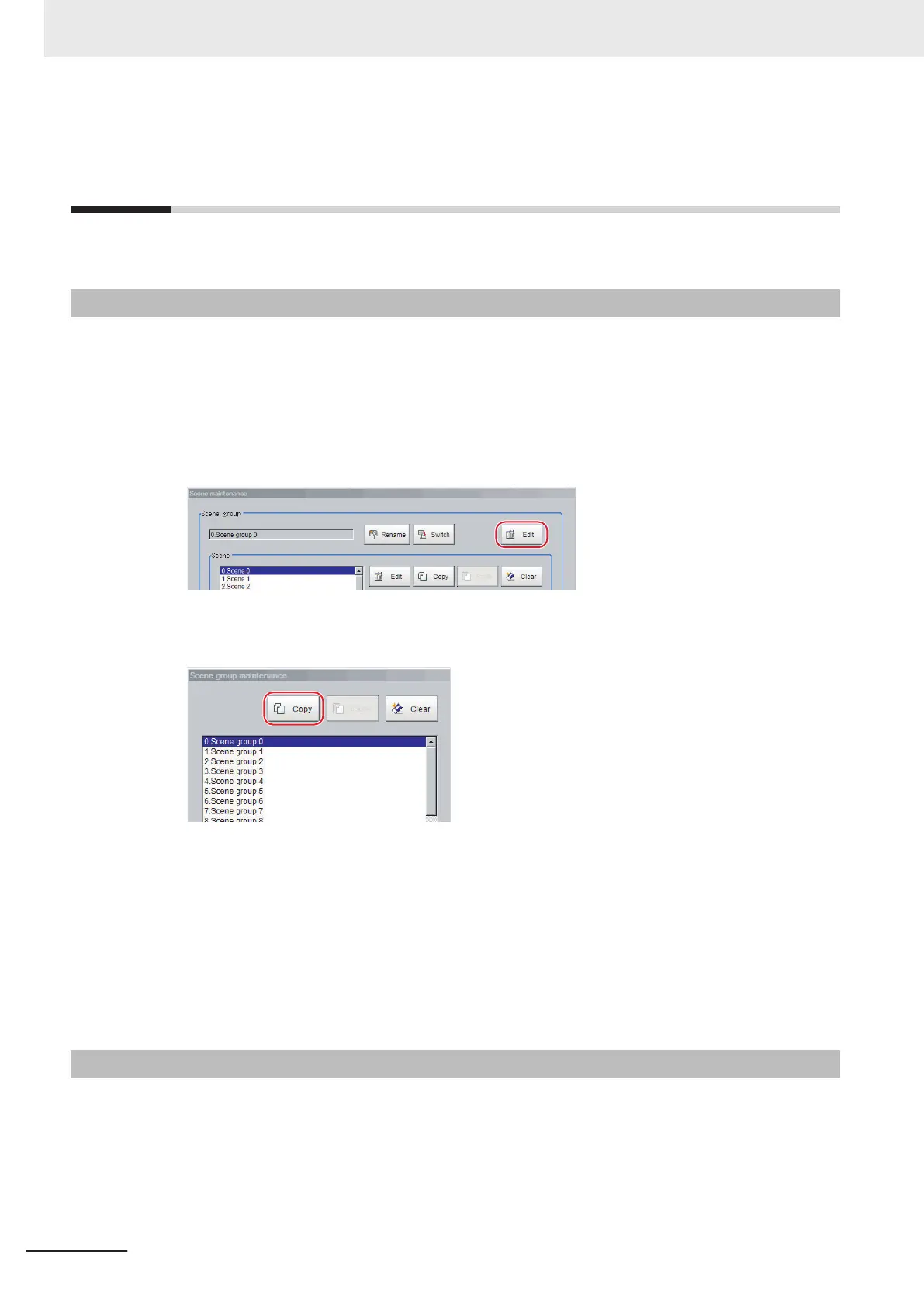

7-4
Editing Scene Groups [Scene Mainte-
nance]
Copying or deleting can be done by scene group and scene groups can be renamed.
7-4-1
Copying Scene Groups
1 In the Main Window (layout 0), select Scene maintenance from the Function menu.
The Scene maintenance dialog box is displayed.
2
Click the Edit button.
The Scene group maintenance dialog box is displayed.
3
Select the scene group to copy, and then click the Copy button.
4 Select the copy destination scene group and click Paste.
An overwrite confirmation dialog box is displayed.
5 Click Yes.
The scene group selected as the destination is overwritten with the copied scene group data.
6 Click the Close button.
7-4-2
Deleting Scene Groups
The following data is deleted.
Name set for the scene group
All scene data within the scene group
1 In the Main Window (layout 0), select Scene maintenance from the Function menu.
The Scene maintenance dialog box is displayed.
7 Increasing/Switching Measurement Scenes
7 - 8
FH/FHV Series Vision System User’s Manual (Z365-E1)
