7-5
Saving Scene Groups in External
Storage [Scene Group Saving Desti-
nation Settings]
The scene group storage location specification function lets you specify a location other than the Sen-
sor Controller’s flash memory for saving scene group data. After specifying the desired storage loca-
tion with this function, menus and buttons such as Data save save set data in the specified external
storage instead of in the Sensor Controller’s flash memory. This function is handy as it enables use of
the external storage when the volume of scene group data is too large to save all of it in the Sensor
Controller’s flash memory.
This function can not be used with the FHV series.
1
Select Scene Group Saving Destination Setting from the Tool menu in the main screen.

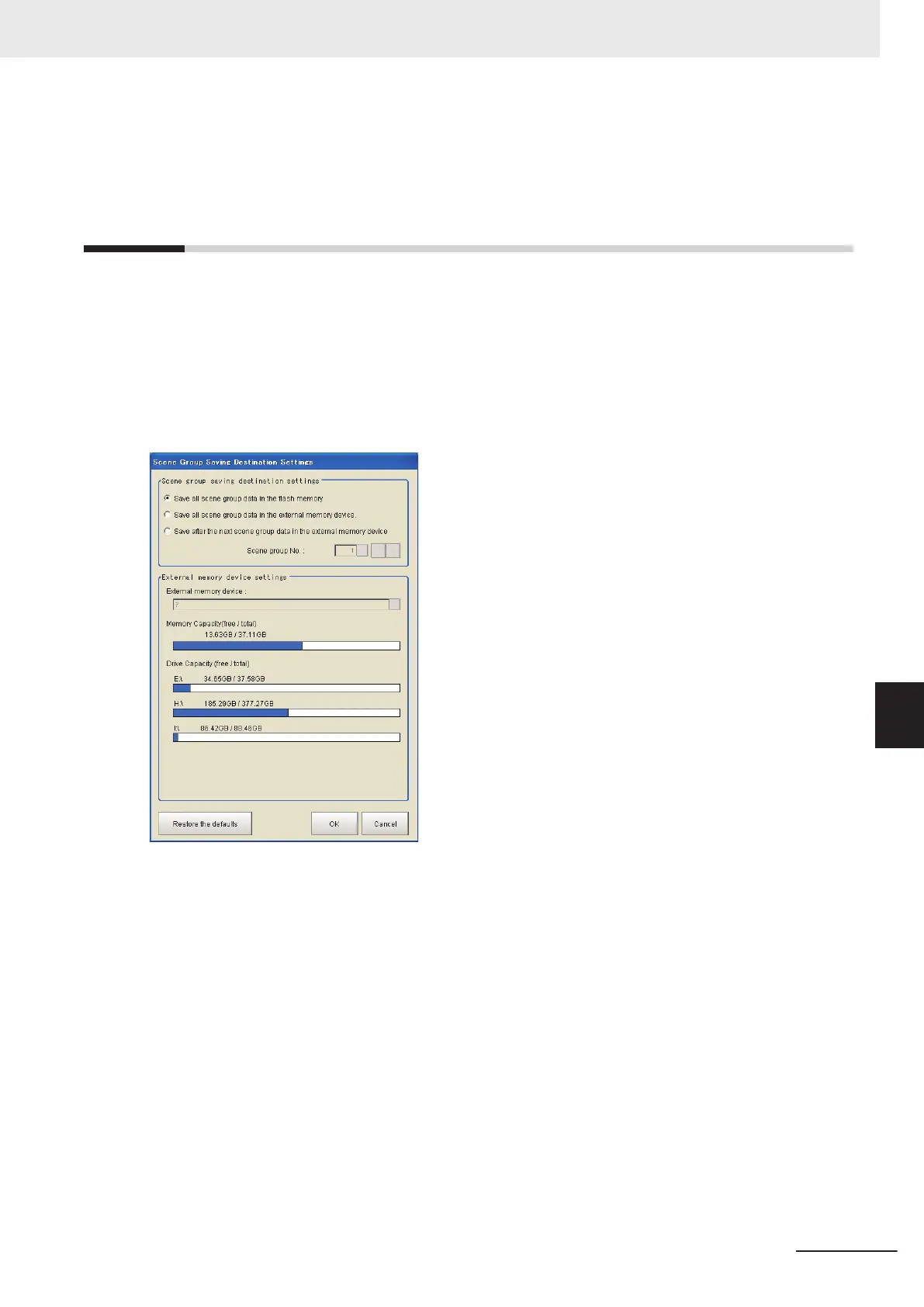

A screen for specifying the scene group storage location appears.
2
Set each item in the Scene group saving destination on settings area.
7 Increasing/Switching Measurement Scenes
7 - 11
FH/FHV Series Vision System User’s Manual (Z365-E1)
7-5 Saving Scene Groups in External Storage [Scene Group Saving Destination Settings]
7
