Omron fh series User Manual

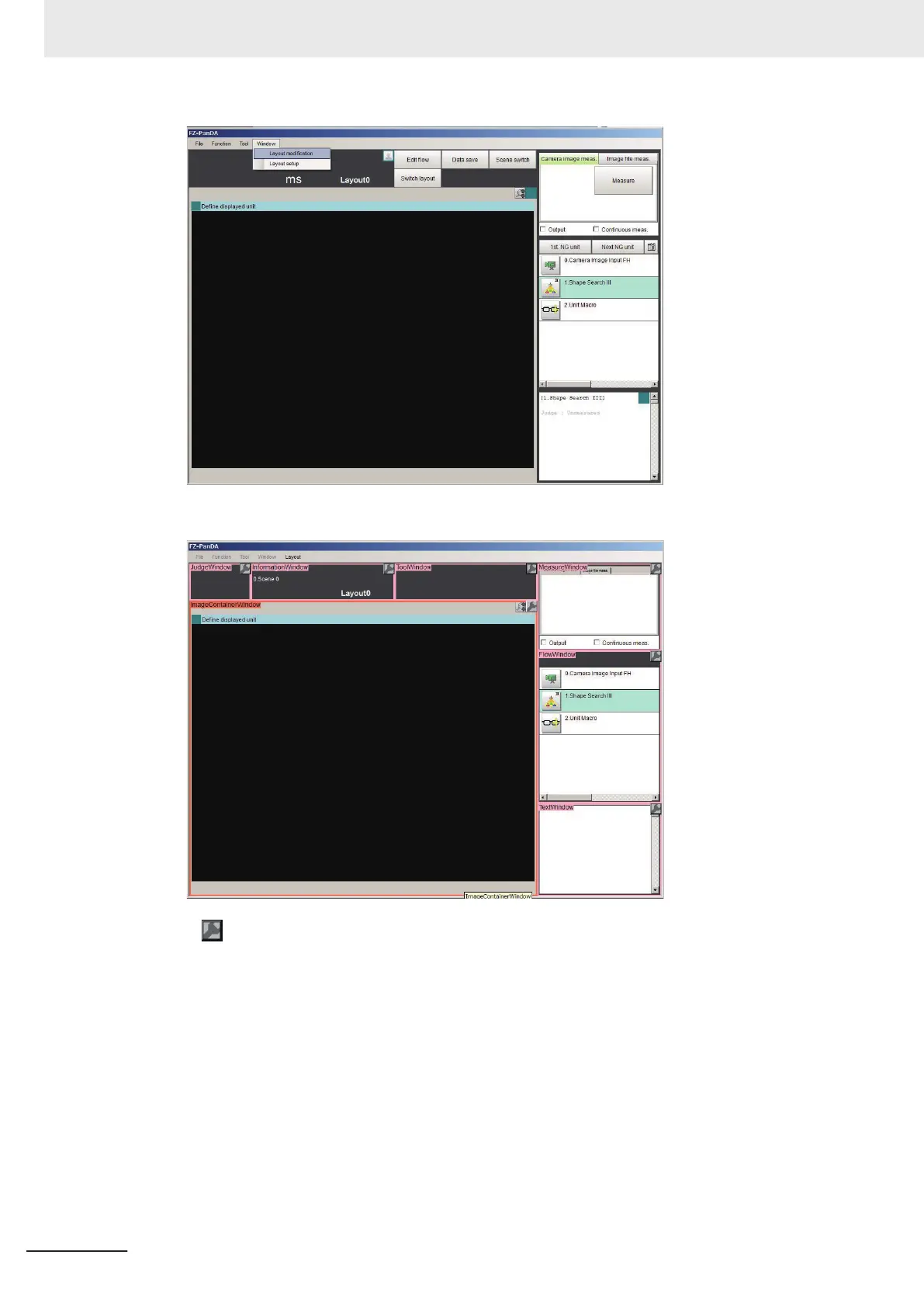

The display switches to Layout Modification Window.
A icon will appear on the upper right corner of each part. This indicates that the Layout
Modification Mode is active.
In this state, you can display and arrange the layout of parts in the Main Window.
*1. Normal menu and window operations are not available in Layout Modification Mode.
2 In the Layout Modification Window, click Layout on the menu. The following layout is dis-
played.
8 Setting Windows
8 - 14
FH/FHV Series Vision System User’s Manual (Z365-E1)

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
