Omron fh series User Manual

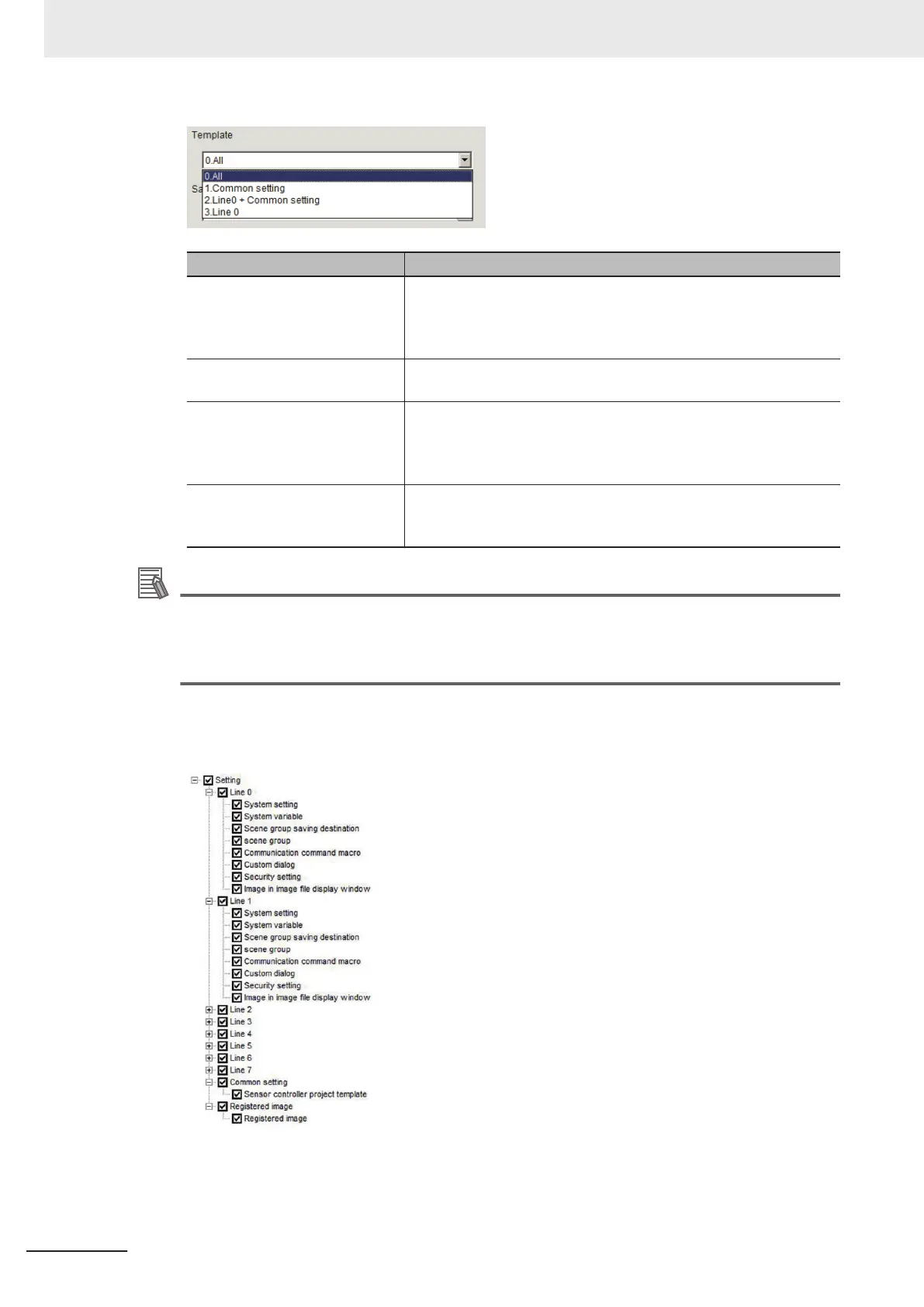

Template name Description
All Use in multi-line random trigger mode.
All settings can be backed up in Configuration Copy. All setting data
for the line 0 to 7 and all common setting data for the Sensor Con-
troller will have their check box selected.
Common setting All common setting data of the Sensor Controller will have their
check box selected.
Line0 + Common setting Use in Standard (operation mode), Double speed Multi-input mode
and Non-stop Adjustment mode. All setting data for the line 0 and all
common setting data of the Sensor Controller will have their check
box selected.
Line0 Use in Standard (operation mode), Double speed Multi-input mode
and Non-stop Adjustment mode. All setting data for line 0 will have
their check box selected.
Additional Information
• It is possible to change the setting of a template.
For details, refer to Editing a Template on page 9 - 22.
• For detail of setting data, refer to
Setting data which can be backed up on page 9 - 16.
4 Select the check box of the settings data to save.
Clear the check box for any settings you do not want to have saved.
(example)
9 Saving/Loading Data
9 - 20
FH/FHV Series Vision System User’s Manual (Z365-E1)
