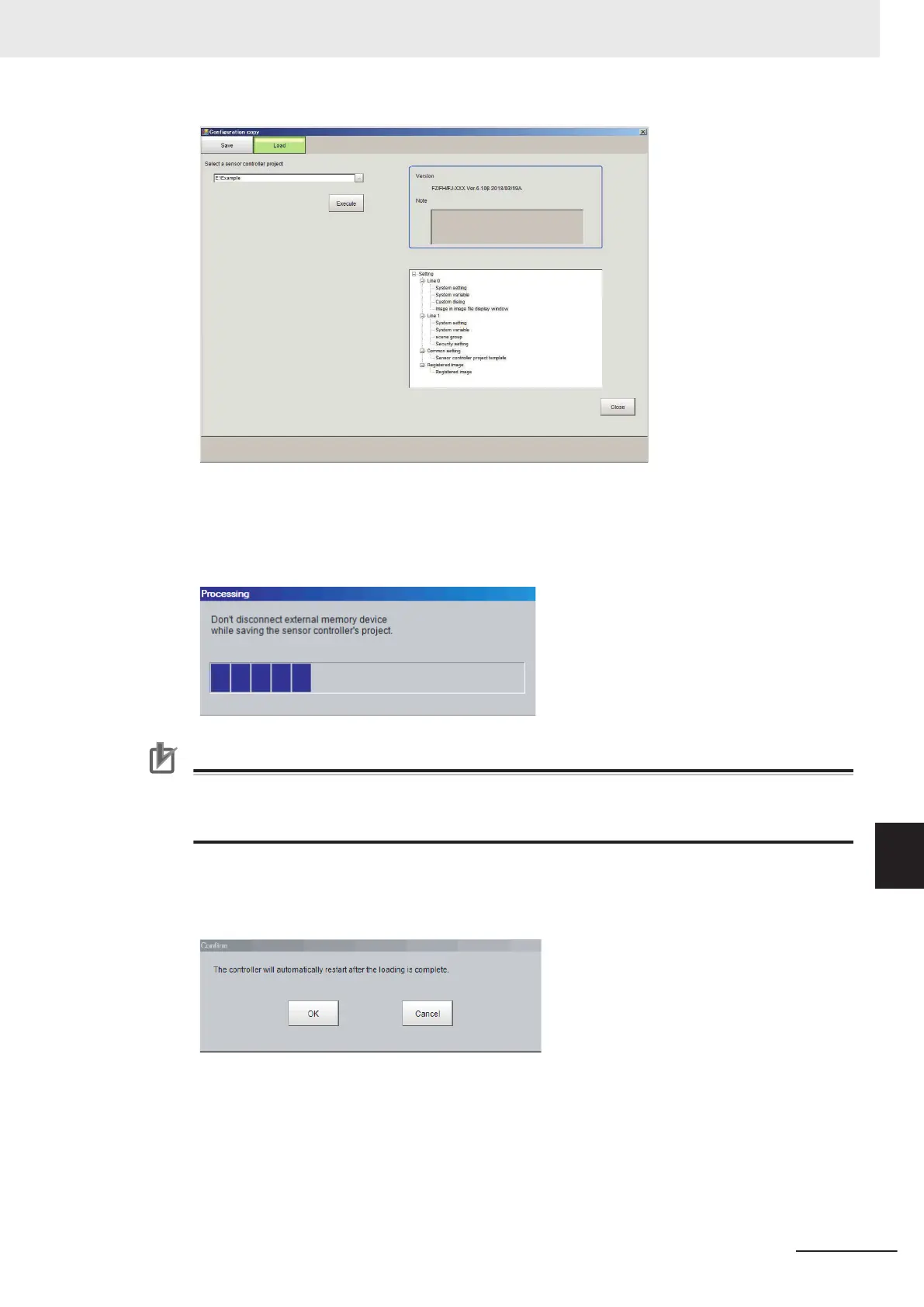

7 Click Execute button.
Starts to load the setting data including the selected sensor controller project in Step 6. The
Processing screen is displayed. If an error occurs during this process, refer to below.
Refer to 9-7-4 Troubleshooting on page 9 - 30.
Precautions for Correct Use
Do not turn off the power, or disconnect the external memory device during the loading of the
sensor controller project. Doing so may cause damage to the external memory, or the sensor
controller project.
8 The following confirmation dialog box is displayed when the loading is finished.
Restarting the Sensor Controller is required to apply the loaded settings. If OK, click the OK
button.
9 The following Confirm dialog is displayed. Click the OK button to restart the Sensor Controller.
9 Saving/Loading Data
9 - 29
FH/FHV Series Vision System User’s Manual (Z365-E1)
9-7 Backing up Sensor Controller Setting Data [Configuration Copy]
9
9-7-3 Restoring Saved Settings
